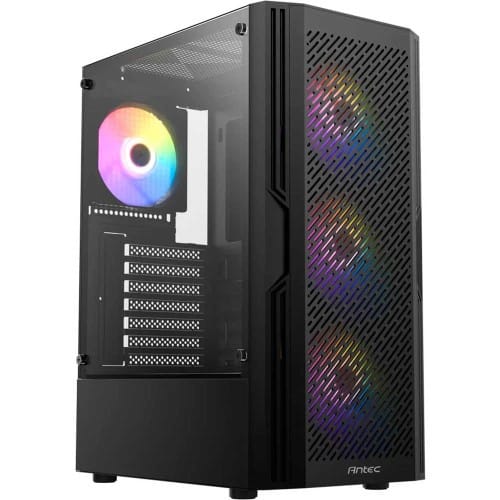

Antec AX20 Elite Mid-Tower ATX Gaming Casing


  • Model: AX20 Elite
  • Mainboard Support: ATX, Micro-ATX, ITX
  • Form Factor: Mid Tower
  • Side Panel: Tempered Glass
  • Pre-installed Fan: 4 x 120 RGB

Short Description

  • Regular Price: 3,900৳
  • Special Price: 3,450৳
  • Availability: In Stock
  • Brand: Antec
  • Product ID: 13455

3,450.00৳  3,900.00৳


Antec AX20 Elite Mid-Tower ATX Gaming Casing




AX20 Elite




No Warranty

Type Mid Tower
Tempered Glass Panel Yes
Motherboard Support ATX, Micro-ATX, ITX
External Features
Color Black
Material Steel+Plastic
Weight Net Weight: 4 Kgs
Gross Weight: 4.71 Kgs
Dimensions 358 x 207 x 451mm (DWH)
Front Ports Power, Reset, 2 x USB 2.0, 1 XUSB 3.0, MIC / HD-AUDIO
Expansion Slots 7
Radiator Support Front: 120 / 140 / 240 / 280mm
Fan Support Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm
Power supply: 2 x 120mm
Rear: 1 x 120mm
Pre- Installed Fans 3 x 120 RGB fan in front
1 x 120 RGB fan in rear
Drive Bays 3.5″ /2.5″: 2 / 1
2.5″: 2
Additional Feature
PSU Not Included
Side Panel Tempered glass
Clearance Space
Maximum CPU Cooler Height ≤ 155mm
Maximum Graphics Card Length ≤ 270mm
Maximum PSU Length ≤ 170mm(with HDD)
≤ 295mm(without HDD)


Antec AX20 Elite Mid-Tower ATX Gaming Case

The Antec AX20 Elite is a mid-tower gaming case that supports ATX, Micro-ATX, and ITX motherboards. It has a slanted bar air intake design with a highly dense mesh for maximum heat dissipation. The half-view tempered glass side panel design lets you show off your gaming setups without being hindered. The AX20 Elite supports up to 8 x 120 mm fans simultaneously, giving users a variety of cooling options. It features a sleek and modern design, with a large tempered glass side panel that provides a clear view of the system’s components. The case also has a black exterior with a clean, minimalist look that will complement any gaming setup.

Up to 8 x 120mm Fans Simultaneously

The Antec AX20 Elite Mid-Tower Gaming Case supports up to 8 x 120mm fans simultaneously, which provides excellent cooling for high-performance systems. It also features a spacious interior for easy installation of components and a sleek, modern design. This allows for efficient heat dissipation and helps to keep the system running at optimal temperatures.

Expansion Clearance

The Antec AX20 Elite supports ATX, Micro-ATX, and Mini-ITX motherboards, and has room for graphics cards up to 270mm in length. This allows for easy installation of high-performance components and provides plenty of room for future upgrades.
