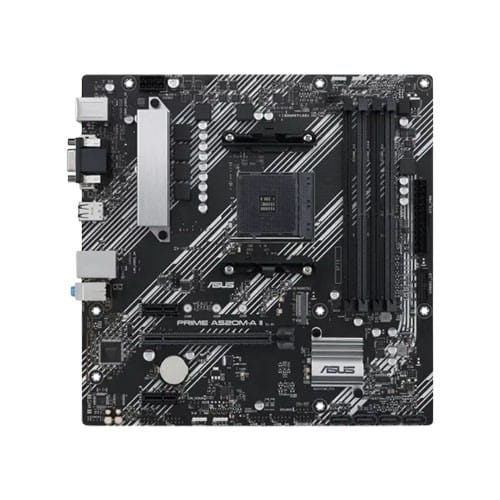

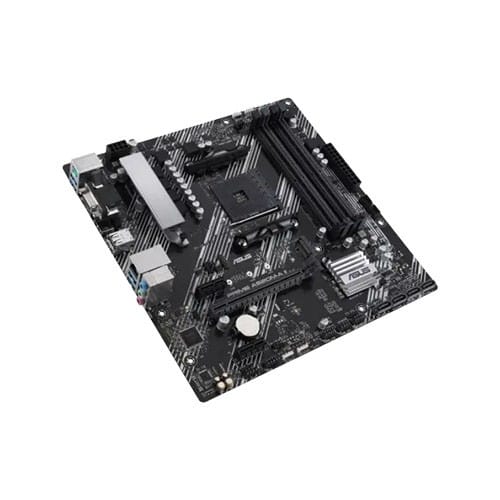

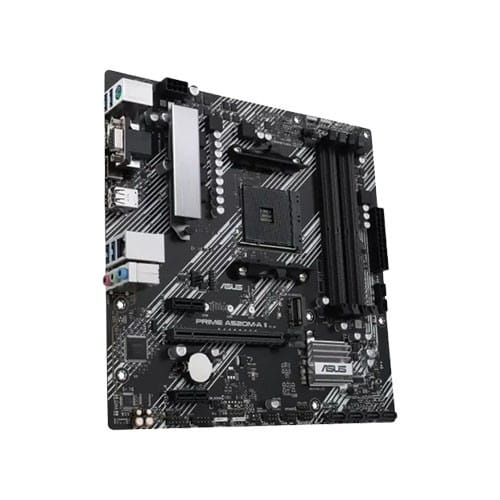

Asus PRIME A520M-A II DDR-4 AMD AM4 m-ATX Motherboard
Asus PRIME A520M-A II DDR-4 AMD AM4 m-ATX Motherboard
Asus PRIME A520M-A II DDR-4 AMD AM4 m-ATX Motherboard
Asus PRIME A520M-A II DDR-4 AMD AM4 m-ATX Motherboard
Asus PRIME A520M-A II DDR-4 AMD AM4 m-ATX Motherboard
Asus PRIME A520M-A II DDR-4 AMD AM4 m-ATX Motherboard
Asus PRIME A520M-A II DDR-4 AMD AM4 m-ATX Motherboard
Asus PRIME A520M-A II DDR-4 AMD AM4 m-ATX Motherboard
Asus PRIME A520M-A II DDR-4 AMD AM4 m-ATX Motherboard
Asus PRIME A520M-A II DDR-4 AMD AM4 m-ATX Motherboard
, ,

Asus PRIME A520M-A II DDR-4 AMD AM4 m-ATX Motherboard

ASUS
Availability:

In stock
Add to wishlist
Compare
  • Model: PRIME A520M-A II
  • CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series
  • Dual Channel Memory Architecture
  • Output: 1 x DisplayPort, 1 x D-Sub, 1 x HDMITM port
  • Features: 5X Protection III

Short Description

  • Regular Price: 12,040৳
  • Special Price: 11,100৳
  • Availability: In Stock
  • Brand: ASUS
  • Product ID: 14359

11,100৳  12,040৳

In stock

Compare

Asus PRIME A520M-A II DDR-4 AMD AM4 m-ATX Motherboard

Brand

ASUS
Model

PRIME A520M-A II
Color

Black
Warranty

03 Years Replacement Warranty
Supported CPU AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset A520
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor microATX
24.4cm x 24.4cm
Audio Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback”
Audio Features
– Audio Shielding
– Premium Japanese audio capacitors
– Dedicated audio PCB layers
PCI AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 slots
M.2 Socket Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Memory
Type Dual Channel DDR4 Memory Technology
Slots 2 x DIMM
Supported Memory 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory
Maximum Memory 128GB
Graphics
Graphics Graphics specifications may vary between CPU types
Connector & Ports
HDMI 1 x HDMITM port
Display Port (s) 1 x DisplayPort
D-Sub (s) 1 x D-Sub
USB (s) Rear USB: Total 6 ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB: Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s) 1 x Realtek 1Gb Ethernet
ASUS LANGuard
Supported Storage AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD A520 Chipset
4 x SATA 6Gb/s ports
Support Raid 0, 1, 10
Audio 3 x Audio jacks Back Panel
1 x Front Panel Audio header (AAFP)
Internal I/O Ports Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
2 x AURA Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header
Others
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/O

ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-Slot

ASUS Thermal Solution
– VRM heatsink design
AURA Sync
– AURA RGB headers
– Addressable Gen 2 RGB headers
Bundled Software ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
– EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3

Description

Asus PRIME A520M-A II DDR-4 AMD AM4 m-ATX Motherboard

The Asus PRIME A520M-A II DDR-4 AMD AM4 m-ATX motherboard designed for the AMD A520 chipset, specifically for Ryzen AM4 processors. It features a range of connectivity options and support for various components to meet the needs of both daily users and DIY PC builders. The motherboard supports AMD AM4 socket processors, including the Ryzen 5000 Series, 4000 G-Series, and 3000 Series desktop processors. This provides users with a wide range of options when it comes to choosing a compatible CPU. To ensure stable performance and prevent overheating, the Asus PRIME A520M-A II incorporates comprehensive cooling features. These include a VRM heatsink, PCH heatsink, and Fan Xpert 2+ technology, which helps to optimize fan speeds and keep the system cool during intense usage. The motherboard offers an M.2 slot, which supports high-speed NVMe storage for faster data transfer. It also includes 1 Gb Ethernet for reliable network connectivity and USB 3.2 Gen 1 Type-A ports for fast data transfer with compatible devices. The Asus PRIME A520M-A II is its supports for Aura Sync RGB lighting. The motherboard includes onboard RGB headers and addressable Gen 2 headers, allowing users to connect RGB LED strips and synchronize the lighting effects with other Aura Sync-capable hardware. The Asus PRIME A520M-A II is a well-engineered motherboard that provides a solid foundation for building a Ryzen-based system. With its power design, cooling solutions, and performance tuning options, it offers a range of features to enhance the overall computing experience.

Buy Asus PRIME A520M-A II DDR-4 AMD AM4 m-ATX Motherboard from the best Motherboard Shop in BD: Rose Tech

In Bangladesh, you can get the original Asus PRIME A520M-A II AM4 micro ATX Motherboard From Rose Tech. We have a large collection of the latest Asus Motherboard to purchase. Order Online Or Visit your Nearest Rose Tech Shop to get yours at the lowest price. The Asus PRIME A520M-A II DDR-4 AMD AM4 m-ATX Motherboard comes with a 03-year warranty.
