ASUS PRIME Z790-P-CSM 13th & 12th Gen ATX Motherboard

ASUS

  • Model: PRIME Z790-P-CSM
  • Supported CPU: 13th Gen & 12th Gen Processors (LGA1700)
  • Supported RAM: 4 x DIMM, Max. 128GB, DDR5 7200+(OC)
  • Graphics Output: 1 x DisplayPort, 1 x HDMI
  • Features: Realtek 2.5Gb Ethernet

Short Description

  • Regular Price: 38,500৳
  • Special Price: 34,800৳
  • Availability:In Stock
  • Brand: ASUS
  • Product ID: 13569

34,800৳  38,500৳

Compare
Brands

ASUS

Model

PRIME Z790-P-CSM

Color

Black

Generation

12th Gen, 13th Gen

Warranty

03 years warranty

Supported CPU Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel Z790 Chipset
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
PCI Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel Z790 Chipset
3 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
Type DDR5
Slots 4 x DIMM
Supported Memory 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory 128GB
Graphics 1 x DisplayPort**
1 x HDMI® port***
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
HDMI 1 x HDMI
Display Port  1 x DisplayPort
USB  Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port 1 x Realtek 2.5Gb Ethernet
Wireless Communication module Vertical M.2 slot only (Key E, CNVi & PCIe)*
*Wi-Fi module is sold separately.
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio 3 x audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-5pin System Panel header
1 x Thunderbolt (USB4) Header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-Slot
– Q-LED Core
ASUS Thermal Solution
– Flexible M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– ProCool
Aura Sync
– Aura RGB headers
– Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
AI Suite 3
-TurboV EVO
-PC Cleaner
-DIGI+ VRM
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

Description

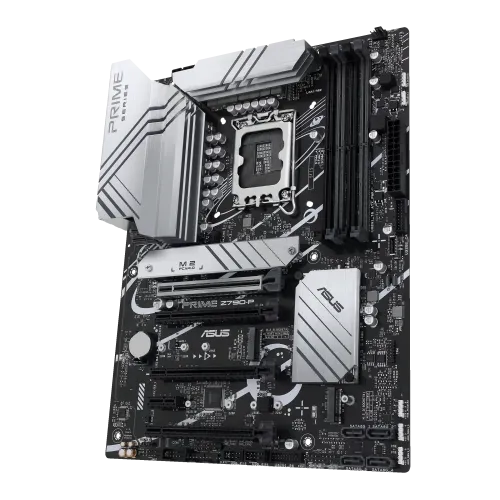

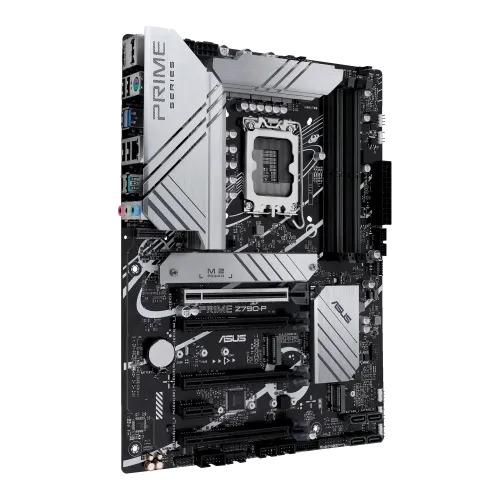

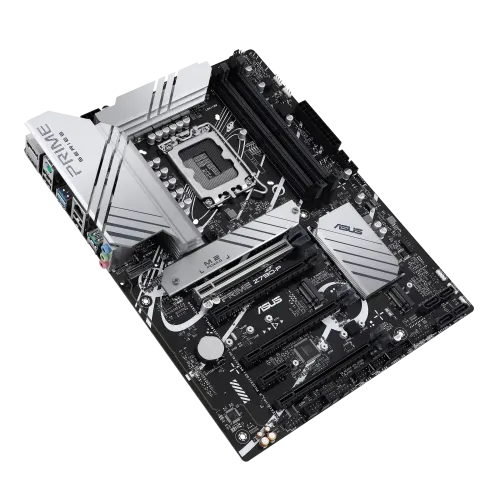

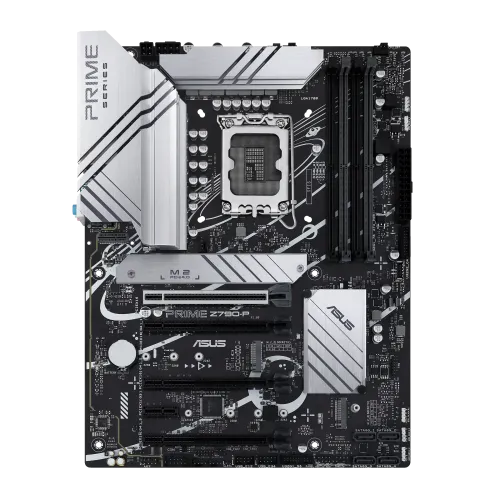

ASUS PRIME Z790-P-CSM 13th & 12th Gen ATX Motherboard

The ASUS PRIME Z790-P-CSM features LGA 1700 socket and the Z790 chipset. It supports  Intel 14th Gen, 13th Gen Core Processors & 12th Gen Intel Core, Pentium Gold, and Celeron Processors. The PRIME Z790-P-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It comes with four DDR5 Dual-Channel RAM slots that allow you to equip up to 128GB of memory for enhanced multitasking capabilities and complex photo and video rendering. This Motherboard is equipped with four SATA III and three M.2 storage interfaces are available so you can build a large library of storage drives for your games or creative projects. A single PCIe 5.0 x16 slot is available for resource-demanding graphics cards while three PCIe 4.0 x16 (in x4 mode) and one PCIe 3.0 x1 slot support a wide range of utility cards. ASUS PRIME Z790-P-CSM offers a range of USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2×2 back panel ports and internal headers that provide you with plenty of support for peripherals from low-powered equipment like mice, keyboards, and controllers to resource-demanding devices like external drives and storage arrays.
