Brand | ASUS |
---|---|
Model | PRIME Z790-P WIFI-CSM |
Color | Black |
Generation | 12th Gen, 13th Gen |
Warranty | 03 years warranty |
Supported CPU | Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
Chipset | Intel Z790 Chipset | |
BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS | |
Form Factor | ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
|
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
|
Type | DDR5 | |
Slots | 4 x DIMM | |
Supported Memory | 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|
Maximum Memory | 128GB | |
Graphics | 1 x DisplayPort** 1 x HDMI® port*** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
|
HDMI | 1 x HDMI | |
Display Port | 1 x DisplayPort | |
USB | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
LAN Port | 1 x Realtek 2.5Gb Ethernet | |
Wireless Communication module | Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
|
Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. | |
Audio | 3 x audio jacks | |
Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5pin System Panel header 1 x Thunderbolt (USB4) Header |
|
TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
Special Features | ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with DrMOS) – LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot – Q-LED Core ASUS Thermal Solution – Flexible M.2 heatsink – VRM heatsink design ASUS EZ DIY – ProCool Aura Sync – Aura RGB headers – Addressable Gen 2 headers |
|
Bundled Software | ASUS Exclusive Software Armoury Crate – Aura Sync – Fan Xpert 4 (with AI Cooling II) – Power Saving AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
|
Description

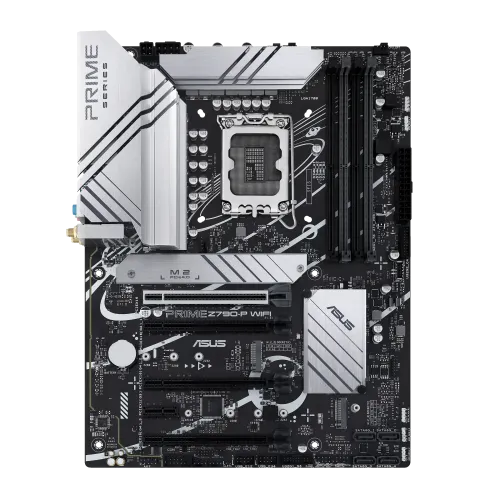

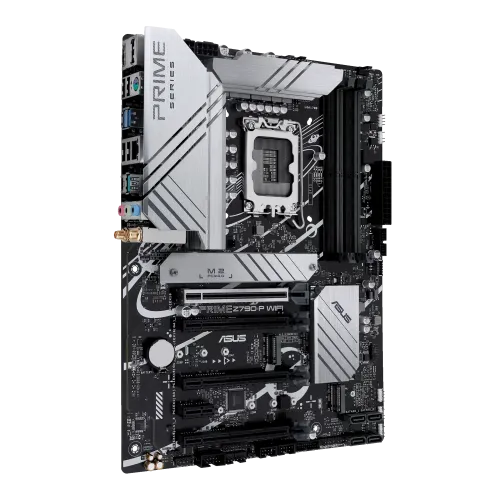

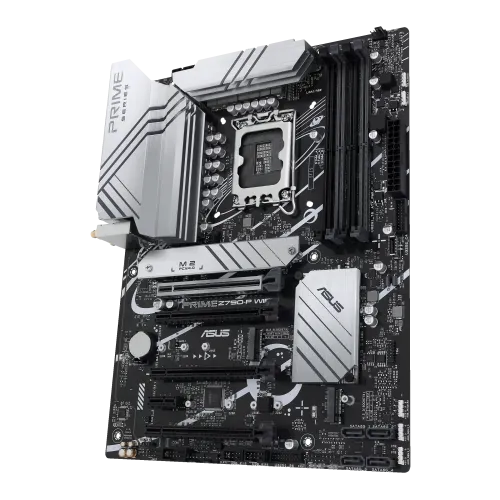

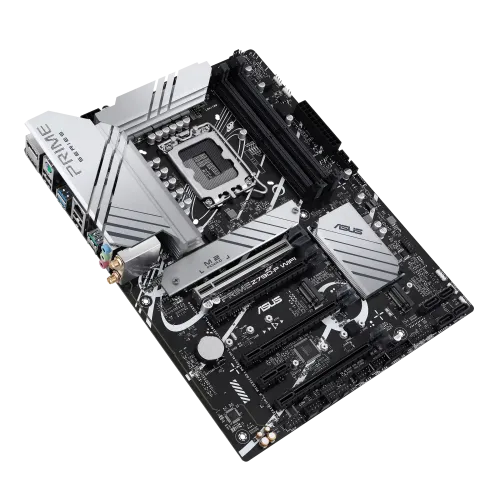

ASUS PRIME Z790-P WIFI-CSM 12TH/13TH GEN ATX MOTHERBOARD
The ASUS PRIME Z790-P WIFI-CSM features LGA 1700 socket and the Z790 chipset. It supports Intel 13th Gen Core Processors & 12th Gen Intel Core, Pentium Gold, and Celeron Processors. It comes with four DDR5 Dual-Channel RAM slots that allow you to equip up to 128GB of memory for enhanced multitasking capabilities and complex photo and video rendering. This Motherboard is equipped with four SATA III and three M.2 storage interfaces are available so you can build a large library of storage drives for your games or creative projects. A single PCIe 5.0 x16 slot is available for resource-demanding graphics cards while three PCIe 4.0 x16 (in x4 mode) and one PCIe 3.0 x1 slot support a wide range of utility cards. 14th Gen Motherboard offers a range of USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2×2 back panel ports and internal headers that provide you with plenty of support for peripherals from low-powered equipment like mice, keyboards, and controllers to resource-demanding devices like external drives and storage arrays. USB-A and USB-C 3.2 Gen 1 and Gen 2 ports deliver up to 5 and 10 Gb/s data transfer speeds, respectively, suitable for webcams, mics, and external storage drives. USB-C 3.2 Gen 2×2 port gives you up to 20 Gb/s data transfer speed for resource-demanding devices such as storage arrays and audio interfaces. You can also use the PRIME’s integrated Bluetooth 5.2 technology for a cable-free experience for wireless devices. Connect to your wireless network with Wi-Fi 6 (802.11ax) or use the integrated 2.5 Gigabit Ethernet port if you prefer a wired connection.
