Intel Socket LGA1700 for 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Refer to www.asus.com for CPU support list.
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel B660 Chipset
BIOS
128Mb Flash ROM
Form Factor
microATX
24.4cm x 24.4cm
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports: Jack-detection, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback ”
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
PCI
Intel 12th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
Intel B660 Chipset
2 x PCIe 3.0 x1 slots
2 x DisplayPort**
1 x D-Sub port
1 x HDMI port
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
HDMI
1 x HDMI
Display Port
2 x DisplayPort
D-Sub
1 x D-Sub
USB
Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port
1 x Intel 1Gb Ethernet
ASUS LANGuard
Wireless Communication module
M.2 slot only (Key E, CNVi & PCIe)
Wi-Fi module is sold separately.
Supported Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
Intel 12th Gen processors support PCIe 4.0 x4 mode
Intel B660 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
4 x SATA 6Gb/s ports
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Audio
3 x Audio jacks
Internal I/O Ports
Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headersPower related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x LPT header
1 x Mono-out header(with Amp IC)
1 x M.2 slot (Key E)
1 x SMBUS header
1 x Speaker header
1 x 10-1 pin System Panel header
Special Features
ASUS EZ DIY
Box Headers
Bespoke Motherboard Design & Business Focused Features
Q-LED Core
ASUS Self Recovering BIOS
ASUS Event Log
ASUS Commercial BIOS kit
Anti-Moisture
24/7 Reliability
Overcurrent Protection
TPM IC onboard
Bundled Software
ASUS Exclusive Software
IT Management software supported
ASUS Control Center Express(ACCE)
Description

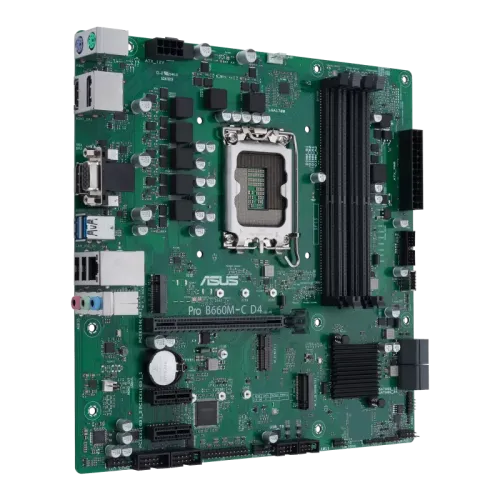

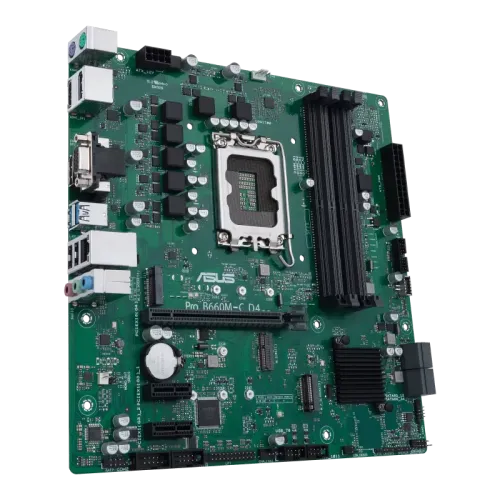

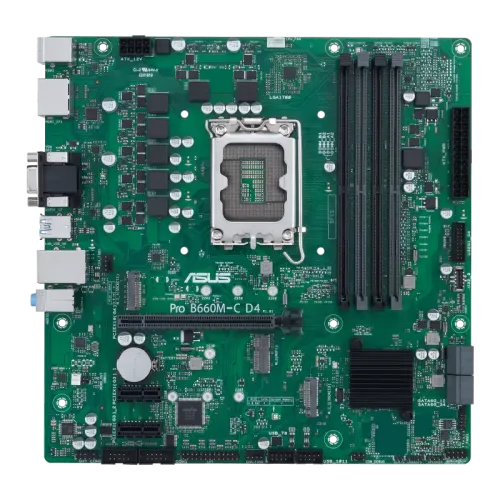

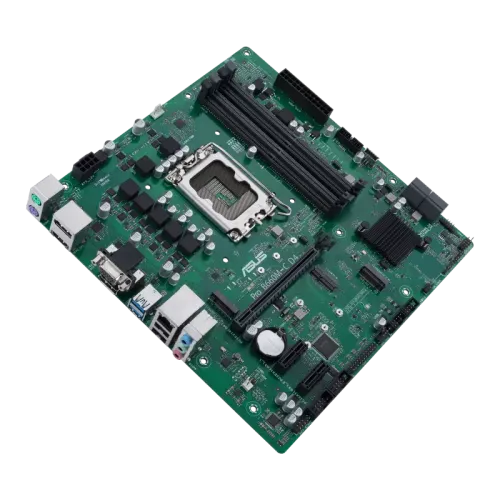

Asus Pro B660M-C D4-CSM DDR4 12th & 13th Gen MICRO-ATX Motherboard
ASUS Pro B660M-C D4-CSM 13th & 12th Gen Motherboard provides enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability, and an improved management suite for easier customization. Known as the world’s biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing needs.
