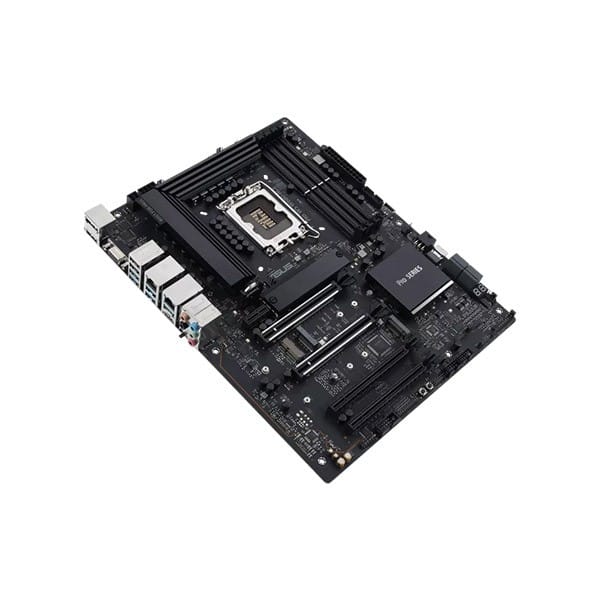

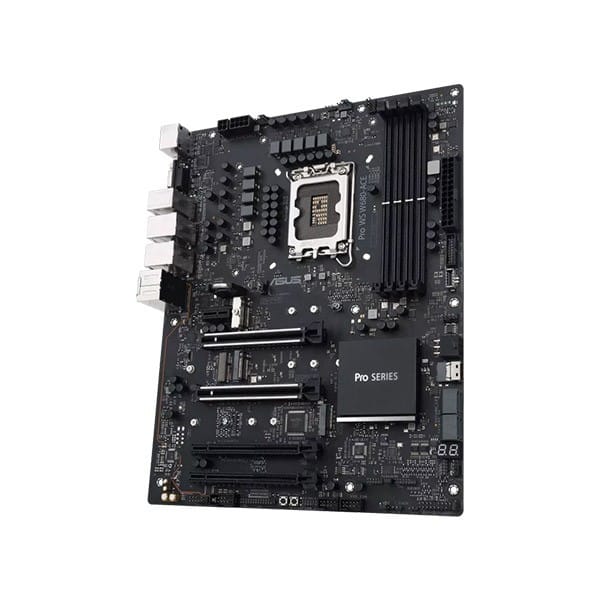

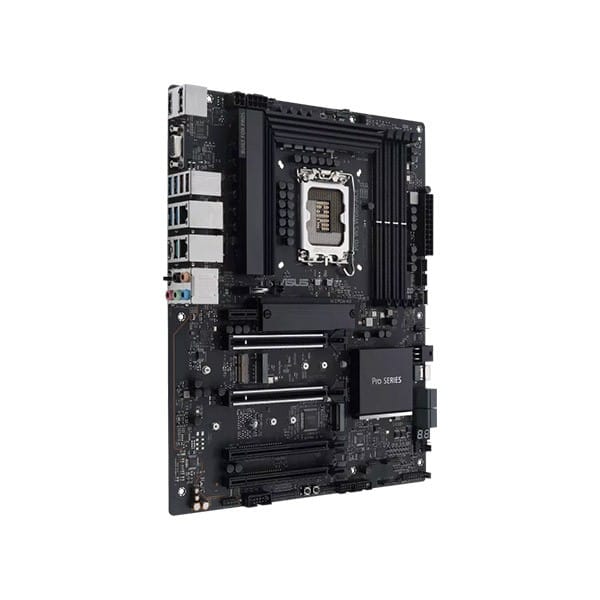

ASUS Pro WS W680-ACE 12th & 13th Gen ATX Motherboard
ASUS Pro WS W680-ACE 12th & 13th Gen ATX Motherboard
, ,

ASUS Pro WS W680-ACE 12th & 13th Gen ATX Motherboard

ASUS
Add to wishlist
Compare
  • Model:Pro WS W680-ACE
  • Chipset: Intel W680 Chipset for 13th Gen Intel Processors
  • Socket: LGA1700
  • M.2 slots: 3 x M.2 slots
  • Memory: 4 x DIMM, Max. 192GB, DDR5
  • USB: 7x Front ports, 8x Rear ports

Short Description

  • Regular Price: 54,450৳
  • Special Price: 48,950৳
  • Availability:In Stock
  • Brand: ASUS
  • Product ID: 13617

48,950৳  54,450৳

Compare
Brand

ASUS
Model

Pro WS W680-ACE
Color

Black
Generation

12th Gen, 13th Gen
Warranty

03 years warranty
Model Pro WS W680-ACE
CPU Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core
* Refer to www.asus.com for the CPU support list.
Chipset Intel W680 Chipset
Memory 4 x DIMM, Max. 192GB, DDR5 ECC and Non-ECC Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of the product information site or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
4 x DIMM, Max. 192GB, DDR5 ECC and Non-ECC Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics 1 x DisplayPort**
1 x HDMI port***
1 x VGA port
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
**Supports max. 8K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots Intel 13th & 12th Gen Processors*
– 2 x PCIe 5.0 x16 slots (support x16 or x8 / x8 mode)Intel W680 Chipset
– 2 x PCIe 3.0 x16 slots (supports x4 mode)
– 1 x PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).
Storage Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports*
Intel 13th & 12th Gen Processors
– M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel W680 Chipset**
– M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
– M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
– 4 x SATA 6Gb/s ports
– 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices)***
* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
*** SlimSAS slot can support up to 4 SATA devices via a transfer cable. the cable is purchased separately.
Ethernet 2 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth M.2 slot only (Key E, CNVi & PCIe)*
*The Wi-Fi module is sold separately.
USB Rear USB (Total 8 ports)
– 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C)
– 4 x USB 3.2 Gen 1 ports (4 x Type-A)
– 2 x USB 2.0 ports (2 x Type-A)Front USB (Total 7 ports)
– 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C)
– 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
– 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback”Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
– Unique de-pop circuit
Back Panel I/O Ports -2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C)
-4 x USB 3.2 Gen 1 ports (4 x Type-A)
-2 x USB 2.0 ports (2 x Type-A)
-1 x DisplayPort
-1 x HDMI port
-1 x VGA port
-2 x Intel 2.5Gb Ethernet ports
-5 x Audio jacks
-1 x BIOS FlashbackTM button
Internal I/O Connectors Fan and Cooling-related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin W_PUMP+ header
3 x 4-pin Chassis Fan headersPower related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
1 x 6-pin PCIe Power connectorStorage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x SlimSAS port

USB
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
1 x LPT header
1 x T-sensor
1 x Clear CMOS header
1 x COM Port header
1 x BMC Header
1 x Front Panel Audio header (AAFP)
1 x Start button
1 x Flexkey button
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x M.2 slot (Key E)
1 x LPT_P80 Switch
1 x Thunderbolt header
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– LANGuard
– Overvoltage Protection
– SafeSlot
– Stainless-Steel Back I/OASUS Q-Design
– Q-Code
– M.2 Q-Latch
– Q-Connector
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-SlotASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design

ASUS EZ DIY
– CPU Socket lever protector
– SafeDIMM
– SafeSlot
– BIOS FlashBack button
– BIOS FlashBack LED

Bespoke Motherboard Design & Business Focused Features
– 24/7 Reliability
Software Features Intel vPro support
ASUS Exclusive Software
Armoury Crate
– Fan Xpert 4
– Power SavingASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRARIT Management software supported
– ASUS Control Center Express(ACCE)

UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3

FlexKey
Intel vPro support
ASUS Exclusive Software
Armoury Crate
– Fan Xpert 4
– Power Saving

ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR

IT Management software supported
– ASUS Control Center Express(ACCE)
UEFI BIOS

ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
FlexKey
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x Q-connector
1 x M.2 Rubber Packages
2 x Screw package for M.2 SSD
1 x Screw package for M.2 Key E
1 x I/O ShieldDocumentation
1 x User guide
1 x ACC Express Activation Key Card
Operating System Windows 11, Windows 10 64-bit
Form Factor ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)

ASUS Pro WS W680-ACE 12th & 13th Gen ATX Motherboard

ASUS Pro WS W680-ACE 12th & 13th Gen ATX Motherboard is a reliable motherboard for your professional workstation needs. This motherboard is for professionals engaged in AI training, deep learning, animation, 3D rendering, or media production. Engineered to deliver exceptional performance and reliability, this motherboard is your go-to solution. Equipped with an Intel LGA 1700 socket, the ASUS Pro WS W680-ACE supports both 13th Gen Intel Core processors and 12th Gen Intel Core, Pentium Gold, and Celeron Processors. Its enhanced power solution, featuring DrMOS, ProCool connector, alloy chokes, and durable capacitors, ensures stable power delivery for uninterrupted performance. Connectivity is not a concern with this motherboard. It boasts dual PCIe 5.0 SafeSlots, dual PCIe 3.0 slots, and 3 x M.2 PCIe 4.0 slots, offering lightning-fast data transfer speeds of up to 64 Gbps. With dual Intel 2.5Gb Ethernet ports, you can experience up to 2.5X bandwidth improvement for faster file transfers and high-resolution video streaming. Cooling is key to maintaining optimal performance. The ASUS Pro WS W680-ACE features comprehensive cooling solutions, including a large VRM heatsink, M.2 heatsinks, hybrid fan headers, and Fan Xpert 4 technology.
