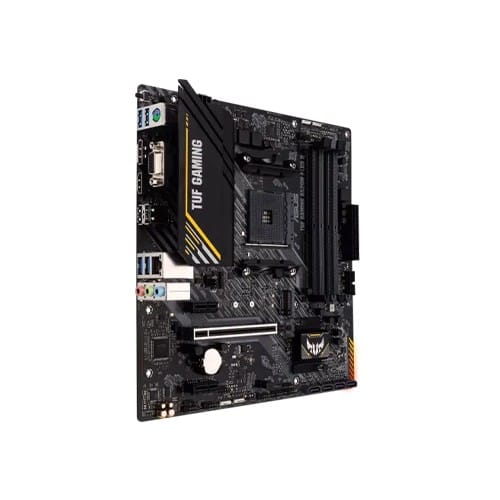

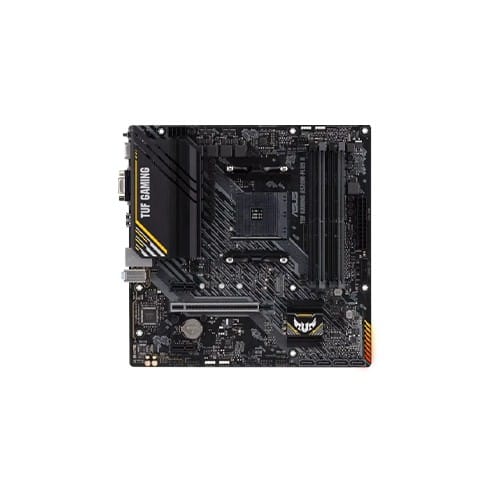

Asus TUF GAMING A520M-PLUS II DDR4 AMD AM4 micro-ATX Motherboard
Brand | ASUS |
---|---|
Model | TUF GAMING A520M-PLUS II |
Color | Black |
Warranty | 03 years warranty |
Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
Chipset | A520 | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
Form Factor | microATX 24.4cm x 24.4cm |
|
Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback” Audio Features – Audio Shielding – Premium Japanese audio capacitors – Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
PCI | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots |
|
Memory | ||
Type | DDR4 | |
Slots | 4 x DIMM | |
Supported Memory | 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory Dual Channel Memory Architecture |
|
Maximum Memory | 128GB | |
Graphics | ||
Graphics | 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60Hz) 1 x D-Sub |
|
Connector & Ports | ||
HDMI | 1 x HDMI port | |
Display Port (s) | 1 x DisplayPort | |
D-Sub (s) | 1 x D-Sub | |
USB (s) | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports |
|
LAN Port (s) | 1 x Realtek 1Gb Ethernet TUF LANGuard |
|
Supported Storage | AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset: 4 x SATA 6Gb/s ports Support RAID 0, 1, 10 |
|
Audio | 3 x Audio jacks | |
Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related Storage related USB Miscellaneous |
|
TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
Others | ||
Special Features | ASUS TUF PROTECTION – DIGI+ VRM – ESD Guards – TUF LANGuard – Overvoltage Protection – SafeSlot Core+ – ASUS Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot ASUS Thermal Solution – VRM heatsink design ASUS EZ DIY – BIOS FlashBack button – BIOS FlashBack LED AURA Sync – AURA RGB headers – Addressable Gen 2 RGB headers |
|
Bundled Software | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ – EZ update – PC Cleaner – System Information TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
|
Description
Asus TUF GAMING A520M-PLUS II AMD AM4 micro-ATX Motherboard
The Asus TUF GAMING A520M-PLUS II Motherboard distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution, and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case. With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, the Asus TUF GAMING A520M-PLUS II Motherboard is the perfect foundation for your next high-core-count battle rig. TUF Gaming motherboards are designed to be easy to set up and configure just the way you want even for first-time builders. The TUF Gaming Alliance eco-system makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits, and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. Asus TUF GAMING A520M-PLUS II Motherboard provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface and reduces network lag. The Asus TUF GAMING A520M-PLUS II Motherboard comes with 3 years of warranty.
