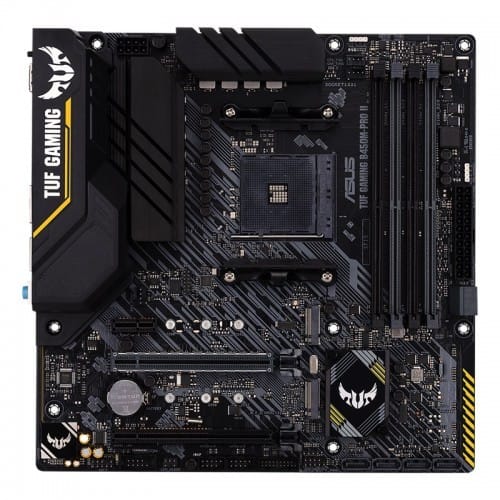

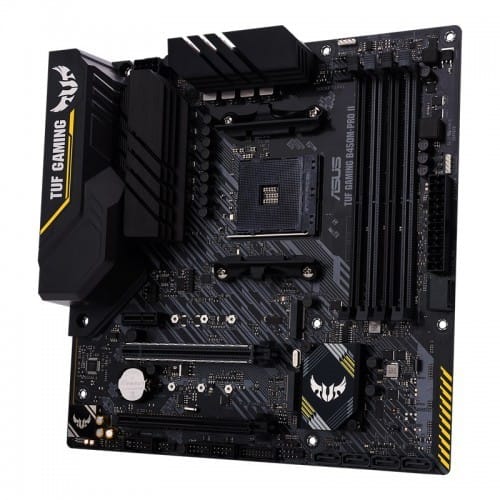

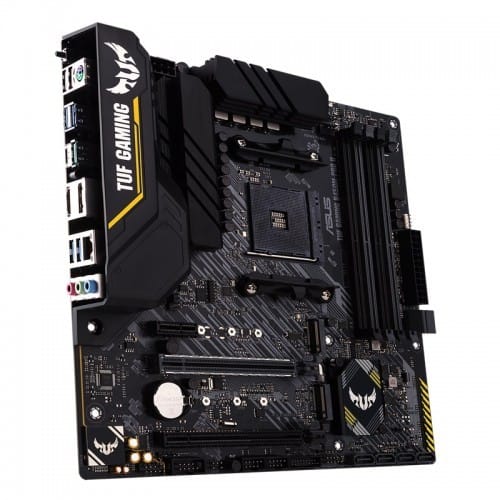

Asus TUF GAMING B450M-PRO II DDR4 AMD AM4 Micro-ATX Motherboard
Brand | ASUS |
---|---|
Model | TUF GAMING B450M-PRO II |
Color | Black |
Warranty | 05 years warranty |
Supported CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors | |
Chipset | AMD B450 | |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
|
PCI | 3rd/2nd/1st Gen AMD Ryzen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) Athlon with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (max at x4 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (x4 mode) 1 x PCIe 2.0 x1 |
|
Memory | ||
Type | DDR4 | |
Slots | 4 x DIMM | |
Supported Memory | 4400(O.C)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3533(O.C)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
|
Maximum Memory | Max. 128GB | |
Graphics | ||
Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors 1 x DisplayPort 1.2 1 x HDMI 2.0b Supports AMD 2-Way CrossFireX Technology |
|
Connector & Ports | ||
HDMI | 1 x HDMI 2.1b | |
Display Port (s) | 1 x DisplayPort 1.2 | |

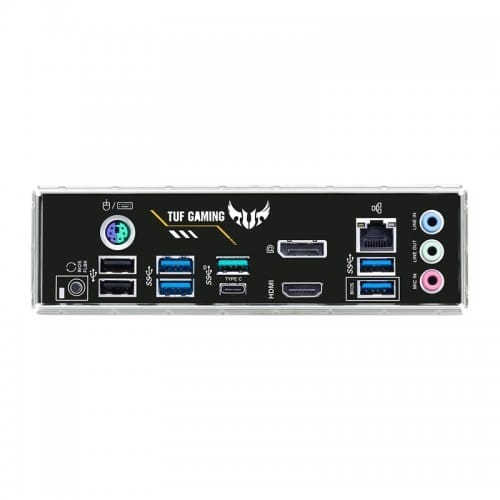

USB (s) | Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) |
|
LAN Port (s) | Realtek RTL8111H 1Gb Ethernet TUF LANGuard |
|
Supported Storage | Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support Athlon with Radeon Vega Graphics Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)*1 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors : 2 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 AMD B450 chipset : 1 x M.2_2 socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
|
Audio | 3 x Audio jack(s) | |
Internal I/O Ports | 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector |
|
TPM (Trusted Platform Module ) | 1 x SPI TPM header | |
Others | ||
Special Features | ASUS TUF PROTECTION – ASUS DIGI+ VRM – ASUS Enhanced DRAM Overcurrent Protection – ASUS ESD Guards – TUF LANGuard – ASUS Overvoltage Protection – ASUS SafeSlot – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM – ASUS Q-Slot ASUS Thermal Solution – Aluminum heatsink design ASUS EZ DIY – BIOS FlashBack button – BIOS FlashBack LED AURA Sync – AURA RGB headers |
|
Bundled Software | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – AI Noise-Canceling Microphone AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ – EZ update – PC Cleaner TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
|
Description
Asus TUF GAMING B450M-PRO II DDR4 AMD AM4 Micro-ATX Motherboard
The Asus TUF GAMING B450M-PRO II DDR4 AMD AM4 Micro-ATX Motherboard supports AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors. It comes with Aura Sync RGB LED lighting, DDR4 4400MHz support, Dual M.2, and native USB 3.1 Gen 2. This motherboard features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality. It offers exclusive DTS Custom audio that delivers positional cues to stereo headphones, helping you to pinpoint enemies and action. ASUS TUF GAMING B450M-PRO II Motherboard comes with Fan Xpert 2+ that ensures every fan achieves the best balance of cooling performance and acoustics. Military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability. Its TUF Capacitors offer+20% temperature tolerance and 5X-longer lifespan. Lastly, TUF MOSFETS are military-grade MOSFETs with lower RDS(on). SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points. With x4 PCI Express 3.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. The ASUS TUF GAMING B450M-PRO II Motherboard comes with 3 years warranty.
