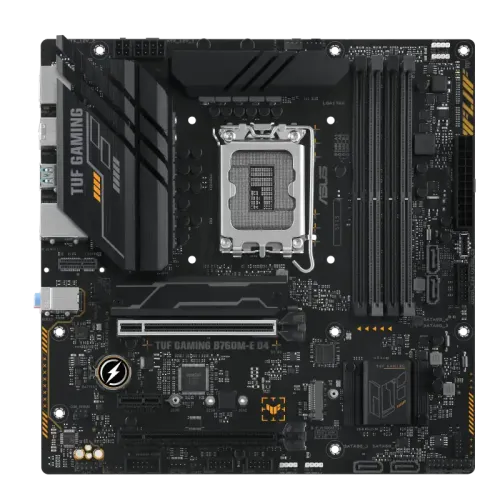

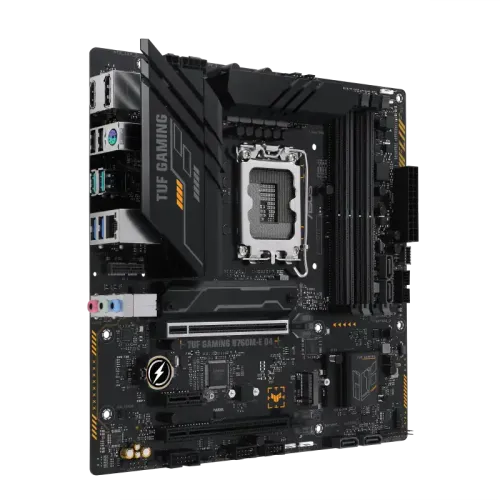

ASUS TUF GAMING B760M-E D4 Intel 12th & 13th Gen mATX Motherboard
ASUS TUF GAMING B760M-E D4 Intel 12th & 13th Gen mATX Motherboard
, ,

ASUS TUF GAMING B760M-E D4 Intel 12th & 13th Gen mATX Motherboard

Add to wishlist
Compare
  • Model: TUF GAMING B760M-E D4
  • Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 4 x DIMM, Max. 128GB, DDR4 5333(OC)
  • Graphics Output: 1 x DisplayPort, 1 x HDMI
  • Features: 1 x Realtek 2.5Gb Ethernet

Short Description

  • Regular Price: 26,500৳
  • Special Price: 25,000৳
  • Availability:In Stock
  • Brand: ASUS
  • Product ID: 13736

25,000৳  26,500৳

Compare
Supported CPU Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset Intel B760 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback”
Audio Features
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
PCI Intel 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
Memory Type DDR4
Memory Slots 4 x DIMM
Supported Memory 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory Max. 128GB
Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4.)
1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
HDMI 1 x HDMI
Display Port  1 x DisplayPort
USB  Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 (10G) ports(2 x Type-A)
2 x USB 3.2 Gen1 (5G) ports(2 x Type-A)*
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.
LAN Port  1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless Communication module Vertical M.2 slot only (Key E, CNVi & PCIe)*
Wi-Fi module is sold separately.
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio 3 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x S/PDIF Out header
Special Features ASUS TUF PROTECTION
DIGI+ VRM (- Digital power design with DrMOS)
ESD Guards
TUF LANGuard
Overvoltage Protection
SafeSlot Core+
Stainless-Steel Back I/O
ASUS Q-Design
M.2 Q-Latch
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
Flexible M.2 heatsink
VRM heatsink design
ASUS EZ DIY
ProCool
SafeDIMM
AURA Sync
AURA RGB header
Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
AURA Creator
AURA Sync
Fan Xpert 2+
Power Saving
Two-Way AI Noise Cancelation
AI Suite 3
DIGI+ VRM
PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode

Description

ASUS TUF GAMING B760M-E D4 Intel 12th & 13th Gen mATX Motherboard

The Asus TUF GAMING B760M-E D4 motherboard combines all of the core characteristics of the newest Intel CPUs with game-ready features and proven durability. This motherboard exceeds expectations with rock-solid performance for marathon gaming, thanks to military-grade components, an enhanced power solution, and a sophisticated cooling system. TUF GAMING motherboards are also subjected to extensive durability testing to guarantee that they can withstand situations that might cause other motherboards to fail. This model features an embossed nameplate and geometric design elements to symbolize the reliability and stability that is synonymous with the TUF GAMING line. The 14th Gen Motherboard have versatile tools for tuning every area of your system, allowing expert performance modifications to match the way you play. The Power Saving feature has several options that allow you to simply control power use and maximize energy savings. You may enable a CPU power restriction, dim the Aura lighting, and change the fan profile to power-saving mode. You can also enable or disable Microsoft Windows’ Power Saving strategy. The ASUS TUF GAMING B760M-E D4 is the ideal foundation for your next Intel battle rig, with upgraded power delivery and comprehensive cooling options to power the latest Intel CPUs, as well as support for DDR4 memory and PCIe 4.0 storage. 12+1 power stages combine high-side and low-side MOSFETs and drivers into a single package to deliver power, efficiency, and stable performance for all compatible Intel processors.
