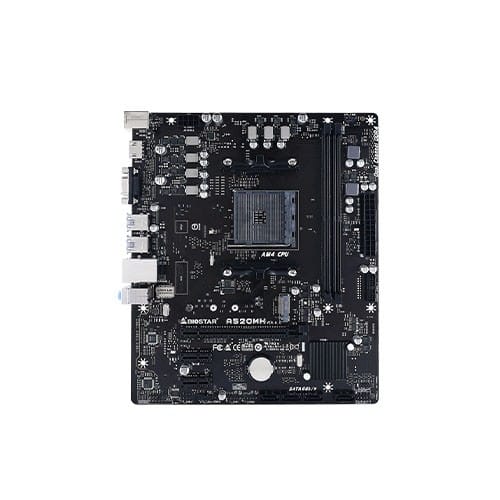

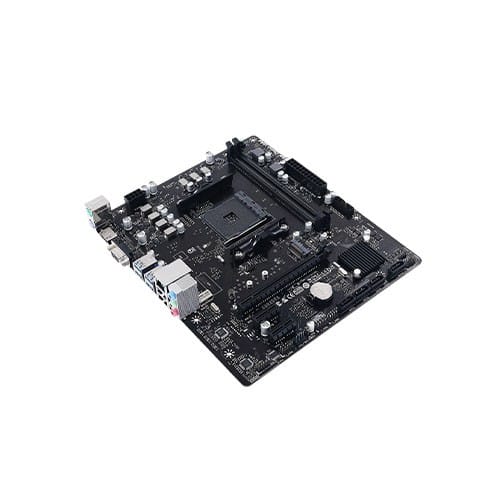

BIOSTAR A520MH DDR-4 AMD AM4 M-ATX Motherboard


  • Model: BIOSTAR A520MH
  • Supported CPU: Ryzen 3rd Gen and 4th Gen processors
  • Supported RAM: 2x DIMM, DDR4 4933+(OC)
  • Graphics Output: 1 x HDMI, 1 x VGA Port
  • Features: 1 x M.2 Slot, Realtek RTL8111H

Short Description

  • Regular Price: 8,626
  • Special Price: 8,100৳
  • Availability: In Stock
  • Brand: BIOSTAR
  • Product ID: 12409

8,100৳  8,626৳


BIOSTAR A520MH DDR-4 AMD AM4 M-ATX Motherboard








03 years warranty

Supported CPU Socket AM4 support AMD 3rd Gen Ryzen (Matisse/ Renoir) processors and Ryzen 4th Gen (Vermeer) processors
Support for future AMD Ryzen processors with BIOS update
Chipset AMD A520
Form Factor Micro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L )
Audio ALC887
7.1 Channels, High Definition Audio, Hi-Fi (Front)
PCI AMD Ryzen 5000/5000 G/4000 G/3000 Processors
1 x PCIe 3.0 x16 Slot(x16 or x4/x4/x4/x4 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 Slot
M.2 Socket Supports M.2 Type 2242/ 2260/ 2280 SSD module
Type DDR4
Slots 2 x DIMM
Supported Memory 3rd Gen AMD Ryzen Processors (Matisse CPUs)
Supports for DDR4 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200/ 2933 / 2667 / 2400 / 2133 / 1866
3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs)
Supports for DDR4 4933+(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866
Maximum Memory Up to 64 GB
Graphics By CPU model
Supports DX12
Supports HDCP
Connector & Ports
HDMI 1 x HDMI Port
VGA (s) 1 x VGA Port
USB (s) 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
LAN Port (s) Realtek RTL8111H
10/ 100/ 1000 Mb/s auto-negotiation, Half / Full duplex capability
Supports Super LAN Surge Protection
Supported Storage 4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCIe 3.0 x 4 (32Gb/s)
Supports SATA III (6.0Gb/s) SSD
Audio 3 x Audio Jack
Internal I/O Ports 4 x SATA III (6.0Gb/s) Connectors
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x Internal Stereo Speaker Header
1 x COM Port Header
Special Features Supports 100% Solid capacitor
PCIe M.2 32Gb/s
Bundled Software BullGuard


BIOSTAR A520MH DDR-4 AMD AM4 M-ATX Motherboard

The BIOSTAR A520MH DDR4 AMD AM4 Micro ATX Motherboard is a high-performance motherboard designed for AMD Ryzen processors. It offers excellent compatibility and functionality for both the 3rd Gen (Matisse/Renoir) and 4th Gen (Vermeer) Ryzen processors. With its AMD A520 single-chip architecture, this motherboard delivers reliable and efficient performance. The motherboard supports up to 2-DIMM DDR4 memory modules, with speeds of up to DDR4-4933+(OC) supported. It offers a wide range of memory frequencies, including 4800(OC), 4600(OC), 4400(OC), 4000(OC), 3800(OC), 3600(OC), 3200, 2933, 2667, 2400, 2133, and 1866, allowing users to choose the optimal configuration for their system. The BIOSTAR A520MH features USB 3.2 Gen1 ports, providing fast data transfer speeds and support for various USB devices. It also includes PCIe M.2 slots, allowing for high-speed storage solutions such as SSDs. The motherboard supports HDMI 4K resolution, enabling users to connect their systems to high-resolution displays for an immersive visual experience. The BIOSTAR A520MH DDR4 AMD AM4 Micro ATX Motherboard offers a solid foundation for building a powerful and efficient AMD Ryzen-based system. Its extensive compatibility, versatile memory support, and convenient connectivity options make it a great choice for both casual and enthusiast users.
