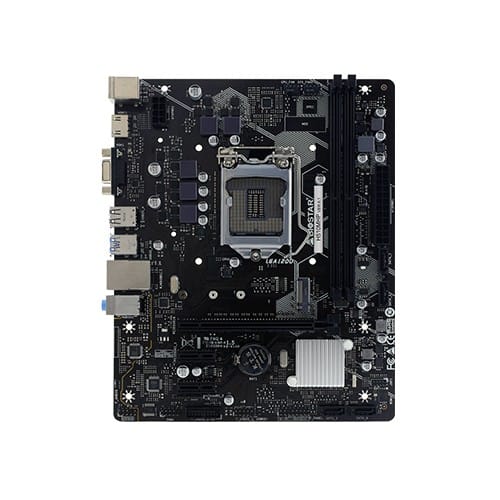

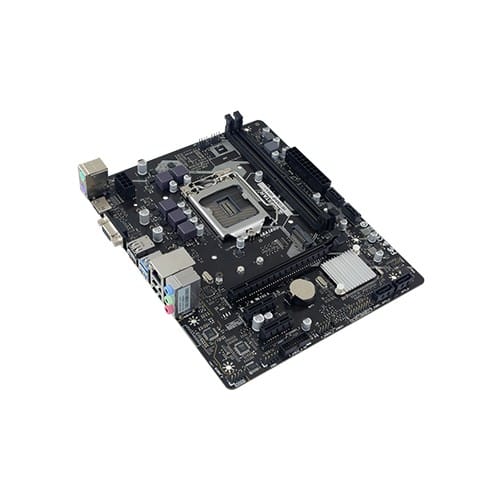

BIOSTAR H510MHP DDR4 10th/11th Gen Micro ATX Motherboard

BIOSTAR

  • Model: H510MHP
  • Supported CPU: 10th /11th Generation Intel Core Processor
  • Supported RAM: 2x DIMM, DDR4 3200 up to 64 GB
  • Graphics Output: 1 x HDMI, 1 x VGA Port
  • Features: 1 x M.2 Slot, Realtek ALC887

Short Description

  • Regular Price: 7,680
  • Special Price: 7,200৳
  • Availability: In Stock
  • Brand: BIOSTAR
  • Product ID: 12588

7,200৳  7,680৳

Compare

BIOSTAR H510MHP DDR4 10th/11th Gen Micro ATX Motherboard

Brands

BIOSTAR

Model

H510MHP

Color

Black

Warranty

03 years warranty

Supported CPU Socket 1200 for 10th / 11th Gen Intel Core, Pentium and Celeron processors
Chipset Intel H510
Form Factor Micro ATX Form Factor Dimension: 18.5cm x 22.6cm ( W x L )
Audio Realtek ALC887
7.1 Channels, High Definition Audio
PCI 2 x PCIe 3.0 x1 Slot
1 x PCle 3.0/4.0 x16 Slot
Memory
Type DDR4
Slots 2 x DIMM
Supported Memory Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Maximum Memory Up to 64 GB
Graphics
Graphics Supports DX12
Supports HDCP
Connector & Ports
HDMI 1 x HDMI Port
VGA (s) 1 x VGA Port
USB (s) 4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers)
6 x USB 2.0 ports (4 on rear I/Os and 2 via internal headers)
LAN Port (s) Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Supported Storage 4 x SATA III Connector (6Gb/s)
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module.
Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6Gb/s) SSD
Audio 3 x Audio Jack
Internal I/O Ports 4 x SATA III Connectors (6Gb/s)
1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x COM Port Header
Others
Bundled Software BullGuard

Description

BIOSTAR H510MHP DDR4 10th/11th Gen Micro ATX Motherboard

The BIOSTAR H510MHP is a micro ATX motherboard designed for 10th and 11th gen Intel Core processors. It features an Intel H510 single-chip architecture, allowing for efficient and stable performance. It offers a 5-phase VRM design with high-quality power components such as low RDS (on) Mosfet for lower temperatures and has the advantage to raise the overclocking ability. The BIOSTAR H510MHP motherboard supports 2-DIMM DDR4 memory, with speeds of up to 3200/ 2933/ 2666/ 2400/2133/ 1866 and a maximum capacity of 64 GB. It also supports PCIe 4.0 and PCIe M.2 (32Gb/s) for high-speed data transfer and storage. PCIe M.2 32Gb/s is the latest storage interface, it delivers the highest bandwidth and lower latency. It’s 3 times faster compared with PCIe M.2 10Gb/s. It comes with USB 3.2 Gen1 for quick data transfer and device connectivity. The Onboard HDMI connector allows full video & audio support. It has industry-leading high-definition video quality. The BIOSTAR H510MHP motherboard provides high-quality sound with minimal loss of audio fidelity. The BIOSTAR H510MHP Motherboard comes with 3 years warranty.
