Brand | Cooler Master |
---|---|
Model | MasterBox NR200 |
Color | Black |
Warranty | No Warranty |
Type | Mini Tower | |
Tempered Glass Panel | Yes | |
Motherboard Support | Mini-DTX, Mini-ITX | |
Color | Black | |
Material | Steel, Plastic, Mesh | |
Weight | 4.8 kg | |
Dimensions | 376 x 185 x 292mm | |
Expansion Slots | 4 | |
Radiator Support | Bottom: 240 mm Rear: 92 mm Side: 280 mm |
|
Fan Support | Top: 2 x 120mm Bottom: 2 x 120mm Rear: 1 x 92mm Side: 2 x 120/140mm |
|
Pre- Installed Fans | Top: 1 x 120mm Rear: 1 x 92mm |
|
I/O Port | 2 x USB 3.2 Gen 1 Type-A 1 x 3.5mm Combo |
|
PSU | Not Included | |
Maximum CPU Cooler Height | 155mm | |
Maximum Graphics Card Length | 330mm (L) 156mm (H) 60mm (W) | |
Maximum PSU Length | 130mm | |
Description

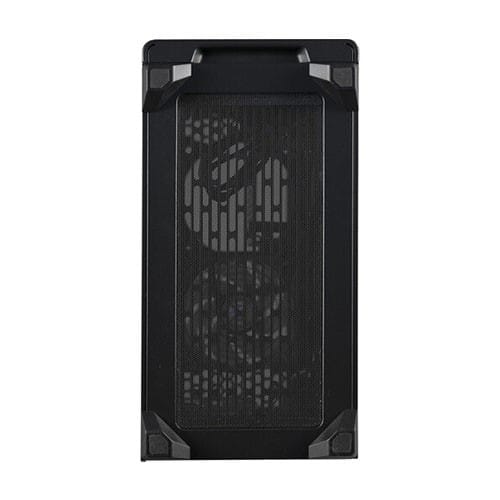

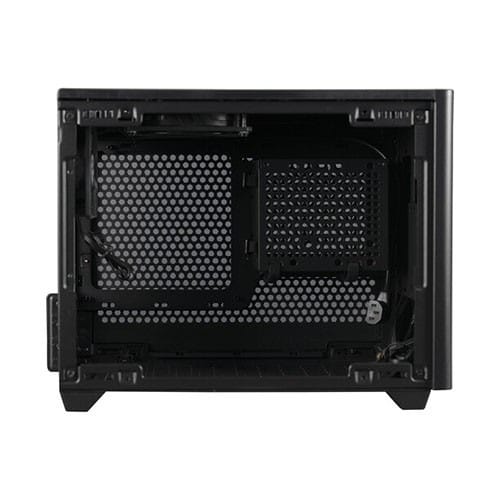

Cooler Master MasterBox NR200 Mini-ITX Gaming Case (Black)
The Cooler Master MasterBox NR200 Mini Tower Mini ITX casing with an appealing finish is a little powerhouse that combines appearance and utility for your game console. The MasterBox NR200 case comes with pre-installed fans for rapid cooling, including a 120mm SickleFlow PWM fan on top and a 92mm SickleFlow PWM fan on the rear, ensuring optimum airflow from the start. This compact ITX container offers a great level of cooling arrangement flexibility. It supports a 92mm radiator at the rear, 120mm and 240mm radiators in the bottom (recommended for custom loops), and 120mm, 140mm, 240mm, and 280mm radiators on the sides. It is important to note that the side radiator arrangement is incompatible with a vertically positioned GPU. The NR200 takes component clearance into serious attention. It can accommodate CPU coolers up to 155mm height and GPUs up to 330mm long, 156mm tall (including the power connector), and 60mm broad for triple-slot GPUs. The motherboard supports both Mini DTX and Mini ITX, with a maximum motherboard size of 244 x 226mm (L x H) in the MasterBox NR200 enclosure. To ensure compatibility, customers who install a bottom radiator should use single-slot water-cooler GPUs or vertically mounted GPUs. This attention to detail ensures a seamless and efficient building process, allowing clients to customize their setup based on cooling preferences and component choices. The Cooler Master MasterBox NR200 Mini Tower Mini ITX Casing, with its sleek black aesthetics, powerful cooling options, and thoughtful component clearance, is an excellent choice for enthusiasts looking to build a high-performance, visually appealing, and space-saving mini ITX gaming system.
