Intel CoreTM 2 Duo/ CoreTM 2 Quad Series processor in LGA775 package
Supported FSB 800/1066/1333 MHz
Chipset
Intel G41/G45/Q45 Chipset
Socket
LGA 775
Form Factor
Micro ATX – 211 x 168 mm
Memory Information
Memory Types
DDR3
Channel
Dual Channel
Slot
1x PCI Express X16 slot, 2x PCI slot
Supported Bus Speed
DDR3 1333/1066 SDRAM (8GB Max)
Maximum Memory
16GB
Graphics Information
Graphics
Intel® Graphics Media Accelerator 4500 1x VGA port
Expansion Slots
PCI
1 x PCIe x16 1 x PCI
Storage Information
SATA
4 x SATA 3Gb/s
IDE
1 x IDE
Connector Information
Internal Connectors
* 1 x USB 2.0 connector， supports 2 x USB 2.0 ports * 4 x SATA 3Gb/s * 1 x 4 -pin CPU_FAN connectors * 1 x 24-pin ATX power connector * 1 x 4-pin 12V ATX Power connectors * 1 x F_Audio connector * 1 x Internal Speaker connector * 1 x F_Panel connector
Port Information
PS/2 Port
1x PS/2 port
USB Port
6 x USB 2.0
VGA Port
1 x VGA
LAN Port
Realtek 8105E/8111E 100M/1000M LAN Controller
1 x LAN (RJ45)
Audio Port
3 x flexible audio jacks
COM Port
1 x COM port
Operating System
Supported OS
Windows 7, 8, 8.1, Operating System
Description:

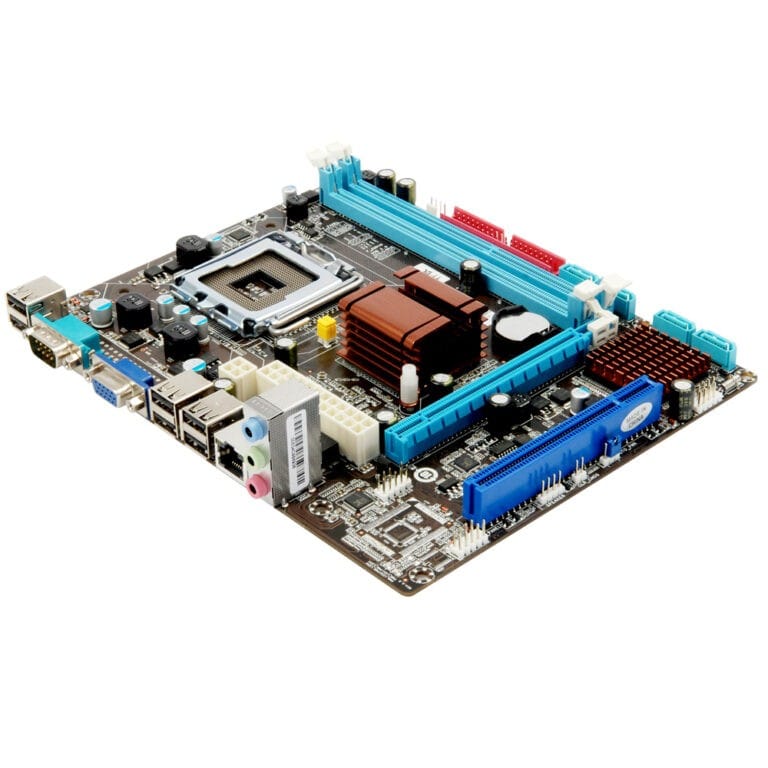

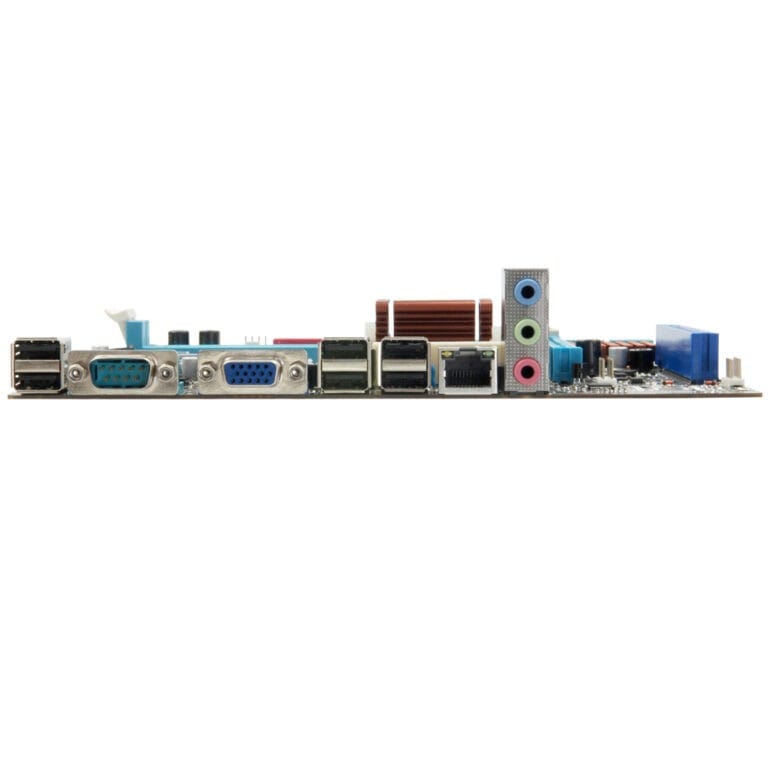

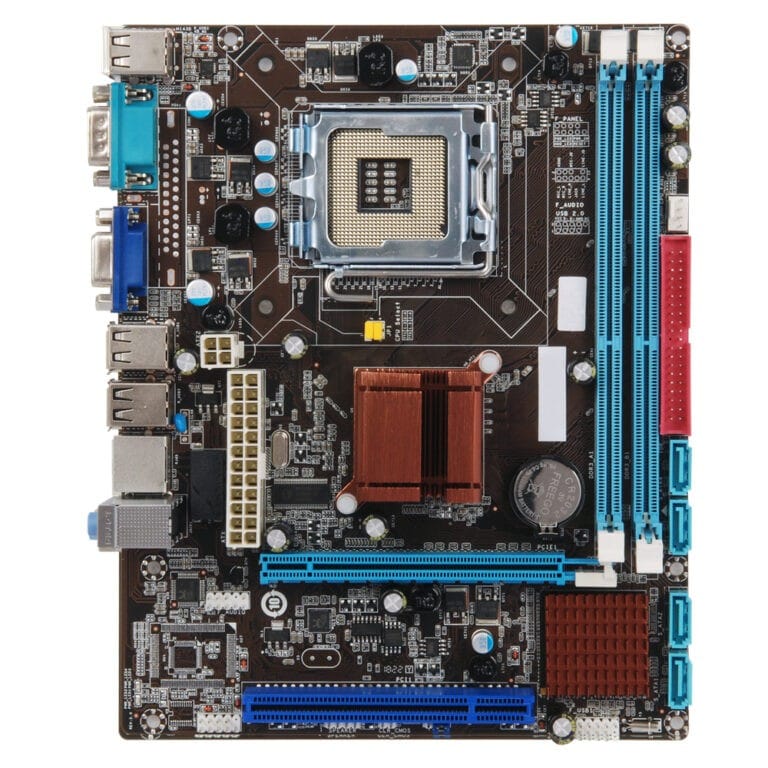

Esonic G41DA DDR-3 Intel LGA775 M-ATX Motherboard
The Esonic G41DA DDR-3 Intel LGA775 M-ATX Motherboard. This Motherboard Model is G41CPL, Motherboard Brand ESONIC, This Motherboard supports processor Core 2 Duo/ CoreTM 2 Quad Series.
Esonic G41DA DDR-3 Intel LGA775 M-ATX Motherboard Chipset Intel® G41/G45/Q45, G41CPL Extreme Motherboard Socket LGA 775, ESONIC Motherboard Form Factor Micro ATX – 211 x 168 mm, The ESONIC G41CPL Motherboard Extreme Memory DDR3 And Dual Channel, Motherboard Memory Slots 2 x DDR3 DIMM (8GB Max), Supported Memory 1333/1066MGZ Up to 16 GB, ESONIC G41CPL Motherboard Graphics Intel® Graphics Media Accelerator 4500, Motherboard Expansion Slots 1 x PCIe x16,1 x PCI. Esonic Motherboard Storage 4 x SATA 3Gb/s and 1 x IDE, This Motherboard’s Internal Connectors are 1 x USB2.0 LAN port, 2 x USB 2.0 ports, 4 x SATA 3Gb/s, 1 x 4-pin CPU_FAN,1 x 24-pin ATX power,1 x 4-pin 12V ATX Power,1 x Internal Speaker connector,1 x F_Audio, 1 x F_Panel, Esonic Motherboard 1x PS/2 port,6 x USB 2.0 Port, 1 x VGA,1 x LAN (RJ45, 3 x flexible audio jacks, Esonic Motherboard Supported Operating System Windows 7, 8, 8.1. Esonic G41DA DDR-3 Intel LGA775 M-ATX Motherboard has 01 Year Warranty.
