-12%
, ,

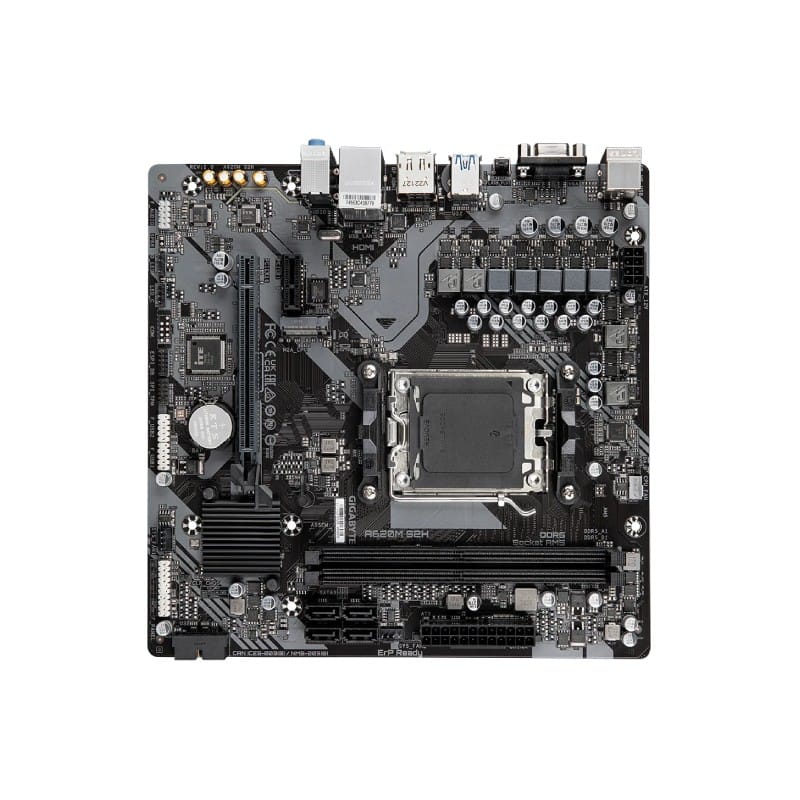

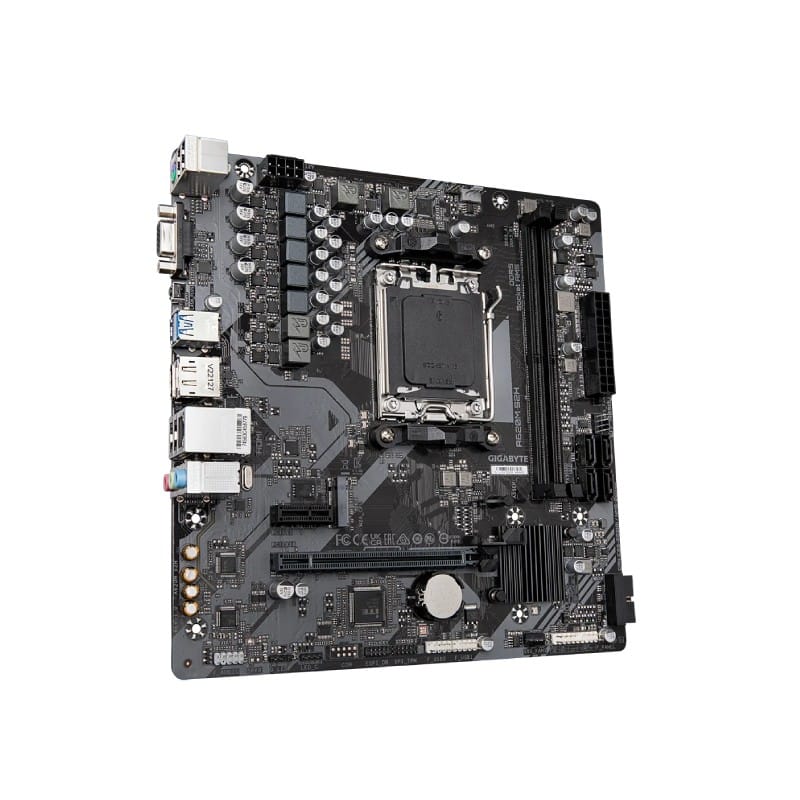

GIGABYTE A620M S2H DDR-5 AMD AM5 Micro-ATX Motherboard

Gigabyte

  • Model: A620M S2H
  • Supported CPU: Ryzen 7000 Series Processors for Socket AM5
  • Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
  • Graphics Output: 2 x DisplayPort, 1 x HDMI port
  • Features: 1 x D-Sub, 1 x DisplayPort, 1 x HDMI

Short Description

  • Regular Price: 18,150৳
  • Special Price: 15,900৳
  • Availability: In Stock
  • Brand: GIGABYTE
  • Product ID: 12659

15,900.00৳  18,150.00৳

Compare

GIGABYTE A620M S2H DDR-5 AMD AM5 Micro-ATX Motherboard

Brands

Gigabyte

Model

A620M S2H

Color

Black

Warranty

03 years warranty

Supported CPU AMD Socket AM5, support for:
AMD Ryzen 7000 Series Processors
Chipset AMD A620
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 22.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
PCI CPU:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Type DDR5
Slots 2 x DIMM
Supported Memory Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Maximum Memory 96 GB
Graphics
Graphics Integrated Graphics Processor:
– 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

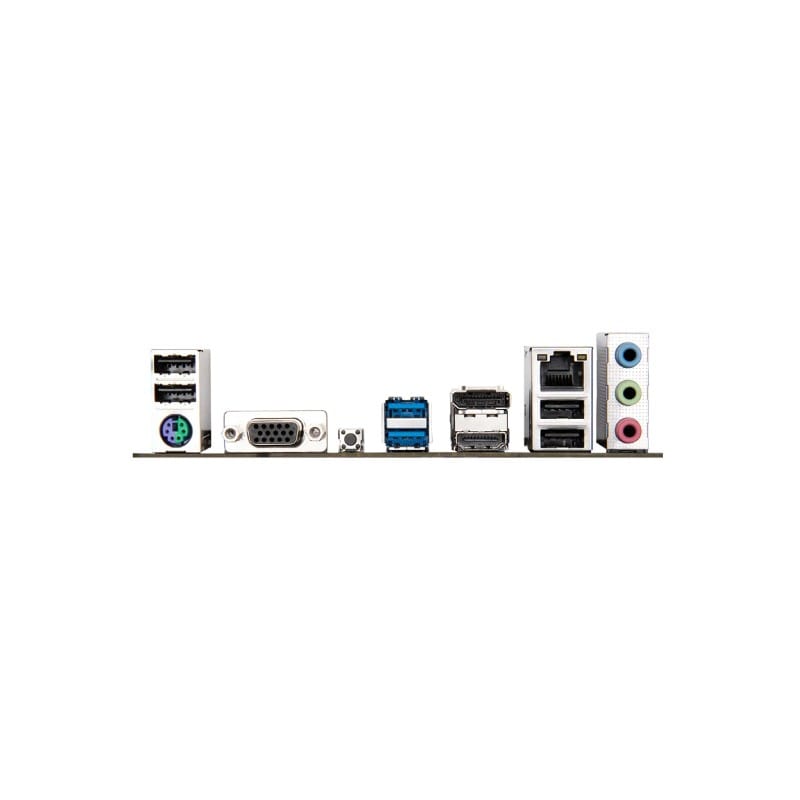

Connector & Ports
HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
D-Sub (s) 1 x D-Sub port
USB (s) CPU:
– 2 x USB 3.2 Gen 1 ports on the back panel
– 1 x USB 2.0/1.1 port on the back panel
Chipset:
– 2 x USB 3.2 Gen 1 ports available through the internal USB header
– 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage CPU:
– 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
Chipset:
– 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Description

GIGABYTE A620M S2H DDR-5 AMD AM5 Micro-ATX Motherboard

The GIGABYTE A620M S2H DDR-5 AMD AM5 Micro-ATX Motherboard is designed to support AMD Ryzen 7000 Series Processors through its AMD Socket AM5. Unleash unparalleled performance with its advanced 5+2+2 Phases Digital VRM Solution. Embrace the speed of Dual Channel DDR5 with 2*SMD DIMMs, offering support for both AMD EXPO and Intel XMP Memory Modules. Benefit from SuperSpeed Storage with its PCIe 4.0 x4 M.2 Connector. The EZ-Latch PCIe x16 Slot features a Quick Release Design for seamless upgrades. Connect swiftly with Fast Networks through GbE LAN. Expand your possibilities with Extended Connectivity options including DP, HDMI, and D-Sub ports. Keep your system cool and quiet with Smart Fan 6, equipped with multiple temperature sensors and Hybrid Fan Headers featuring FAN STOP technology. The Q-Flash Plus functionality allows BIOS updates without the need to install the CPU, memory, or graphics card. The GIGABYTE A620M S2H Motherboard comes with 3 years of warranty.
