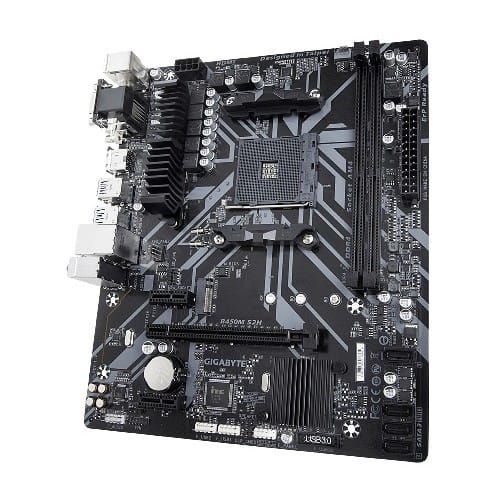

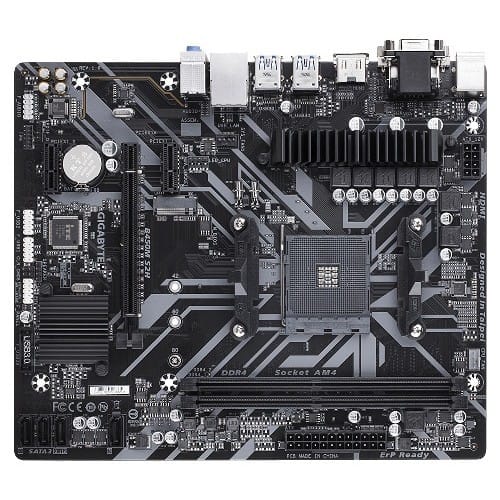

Gigabyte B450M S2H

GET READY FOR AMD RYZEN™ 3000-SERIES

GIGABYTE AM4 motherboards are ready to support the latest AMD Ryzen™ 3000 Processors and are backwards compatible with AMD Ryzen™ 2000 and 1000 Processors. With a rich list of features on GIGABYTE AM4 motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high-speed Ethernet, and the latest standard WIFI design, GIGABYTE AM4 motherboards are perfect for users looking to build the best AMD platform systems.

AMD Ryzen™ 2000, 1000 Series Compatible

AMD StoreMI technology

GIGABYTE 400-series motherboards maximize your PC’s potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC into a performance-driven system.
The benefits of AMD StoreMI:

• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users’ computing behaviors

Fast Onboard Storage with NVMe
PCIe Gen3 x4 80mm M.2 (Up to 32 Gb/s)

GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces* for M.2 SSD devices.

* Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU.

Exclusive Realtek 8118 Gaming LAN

High-Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

Program On Top Gets Highest Priority

Real-Time Network Monitoring

The Industry’s Leading LAN Static-Electricity & Surge Protection

GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

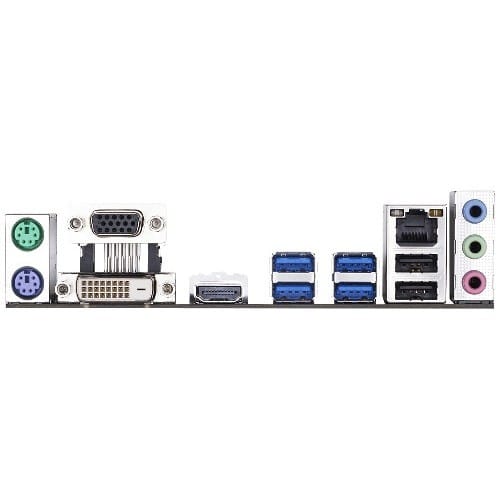

Brand – Gigabyte, Model – Gigabyte B450M S2H, CPU Sockets – AM4, Chipset – AMD B450, Supported CPU – AMD Ryzen 1st and 2nd Generation / Ryzen with Radeon Vega Graphics Processors, Athlon with Radeon Vega Graphics Processors, Memory Type – DDR4, Memory MHz – 3200(O.C.)/ 2933/ 2667/ 2400/ 2133MHz, Memory Channel – Dual Channel, Memory Slot – 2, Memory Max. – 32GB, Optane Memory Support – No, Graphic – Integrated Graphics, Multi-GPU Support – No, PCI Express Slot – 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, Storage Interface – 6Gb/s, M.2 Slot – 1 x M.2 Socket 3 (type 2242/2260/2280 SATA and PCIe x4/x2 SSD), LAN Chipset – Realtek GbE LAN, LAN Speed (Mbps) – 10/100/1000Mbps, Audio Chipset – Realtek ALC887, Audio Channel – 2/4/5.1/7.1-channel, Wi-Fi – No, Bluetooth – No, USB Port – 6 x USB 3.1 Gen 1, 6 x USB 2.0, VGA Port – 1, DVI Port – 1, HDMI Port – 1, DisplayPort (DP) – No, IDE Port – No, SATA Port – 4 x SATA, BIOS Type – 1 x 128 Mbit flash, BIOS Model – AMI UEFI BIOS, BIOS Version – PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, FireWire – No, CrossFire Support – No, Sli Support – No, RaidSupport – 0,1,10, Thunderbolt – No, TPM Port – Yes, COM Port – No, RGB Support – Yes, RGB Sync – RGB Fusion, RGB Connector – 1 x RGB LED strip header, Form Factor – Micro ATX, Supported Operating System – Windows 7 / 10, Special Features – 3D OSD, AutoGreen, Cloud Station, EasyTune, Fast Boot, Game Boost, RGB Fusion, Smart Backup, Smart Keyboard, Smart TimeLock, Smart HUD, Smart Survey, System Information Viewer, USB Blocker, Q-Flash, Xpress Install, Ultra Durable Motherboard with GIGABYTE Gaming LAN and Bandwidth Management, PCIe Gen3 x4 M.2, Anti-Sulfur Resistor Design, Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support, RGB Fusion supports RGB LED Strips in 7-Colors, High Quality Audio Capacitors and Audio Noise Guard Design, Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers, Others – 1 x M.2 Socket 3, 1 x CPU fan header, 1 x system fan header, 1 x CPU cooler LED strip/RGB LED strip header, 1 x Trusted Platform Module (TPM) header, 1 x speaker header, 1 x Clear CMOS jumper, 1 x chassis intrusion header, 3 x audio jacks, Warranty – 3 year, Country of Origin – Taiwan, Made in/ Assemble – China
