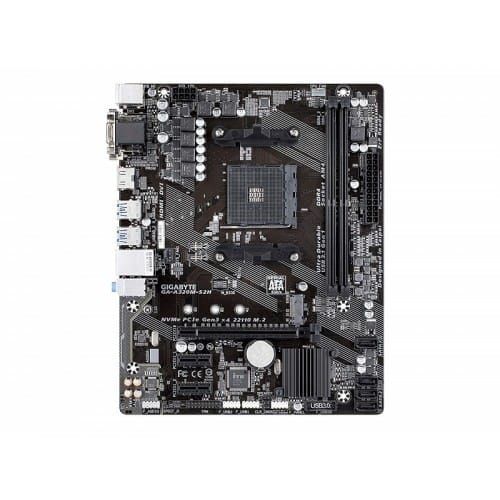

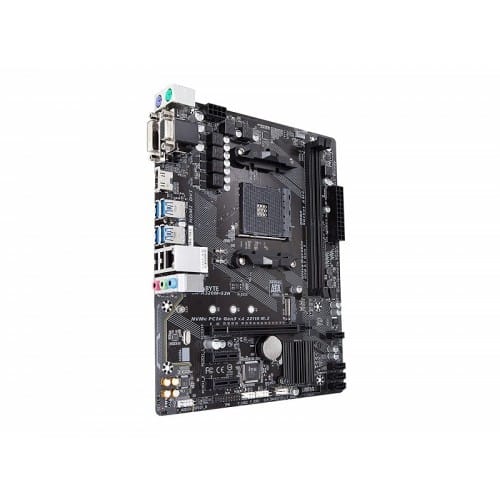

Gigabyte GA-A320M-S2H DDR4 AM4 Scocket AMD Micro ATX Motherboard
Brand | Gigabyte |
---|---|
Model | GA-A320M-S2H |
Supported CPU | AMD Ryzen™ processor AMD 7th Generation A-series/ Athlon™ processor |
|
Chipset | AMD A320 | |
BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Form Factor | Micro ATX Form Factor; 24.4cm x 19.5cm | |
Expansion Slots | ||
PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * Actual support may vary by CPU. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
|
M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU. |
|
Memory | ||
Type | Dual channel memory architecture | |
Slots | 2 x DDR4 DIMM | |
Supported Memory | Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules * Actual support may vary by CPU. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
Maximum Mamory | 32 GB | |
Graphics | ||
Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz * Support for HDMI 1.4 version. |
|
Max Shared Memory | 2 GB | |
Connector & Ports | ||
HDMI | 1 x HDMI port | |

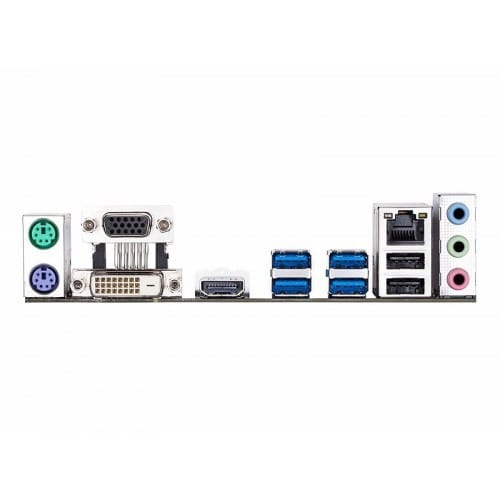

USB (s) | Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
|
LAN Port (s) | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 connector. |
|
Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
|
Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
|
Warranty Information | ||
Warranty | 03 years |
Description :
Gigabyte GA-A320M-S2H AMD Micro ATX AM4 socket ryzen series CPU supported Dual Channel DDR4 maximum 32GB memory motherboard has the capability of Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support. Considering the graphics, it will support maximum resolution of 4096×2160@24 Hz for HDMI and 1920×1200@60 Hz for D-Sub & DVI-D ports for Multiple Display. This High Quality Audio Capacitors and Audio Noise Guard with Dual Channel Non-ECC Unbuffered DDR4 motherboard has Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software, Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers and GIGABYTE™ UEFI BIOS.
Purchase Gigabyte GA-A320M-S2H board with 3 years of warranty facility at best price in BD. Order latest AMD board from Rose Tech’s online store and have the delivery at any location in Bangladesh.
