2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
ATX Form Factor; 30.5cm x 23.0cm
PCI
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * Actual support may vary by CPU. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 3 x PCI Express x1 slots * The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2/PCIEX1_3 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_2 and PCIEX1_3 slots are empty. (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
M.2 Socket
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support)
Memory
Type
Dual-channel DDR4 memory architecture
Slots
4 x DIMM
Supported Memory
Support for DDR4 3200(O.C.) / 2933(O.C.) / 2667* / 2400 / 2133 MHz memory modules * Support for higher than DDR4 2667 MHz may vary by CPU. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
64 GB
Graphics
Graphics
1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz * Support for HDMI 1.4 version.
Max Shared Memory
2 GB
Connector & Ports
HDMI
1 x HDMI port
USB (s)
ASMedia® USB 3.1 Gen 2 Controller: 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel CPU: 4 x USB 3.1 Gen 1 ports on the back panel Chipset: 6 x USB 3.1 Gen 1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)
Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support) * Actual support may vary by CPU. 8 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Audio
Realtek® ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x system fan/water cooling pump header 1 x M.2 Socket 3 connector 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 3.1 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper
Description

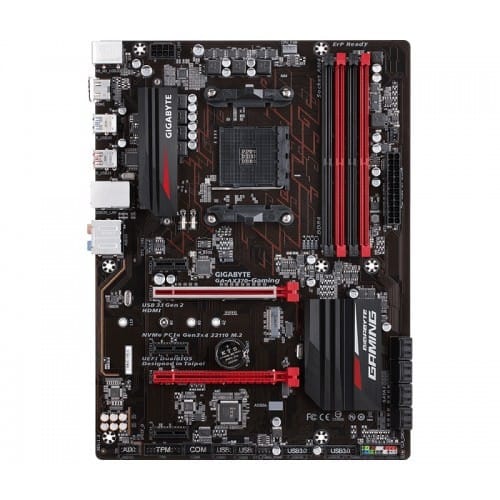

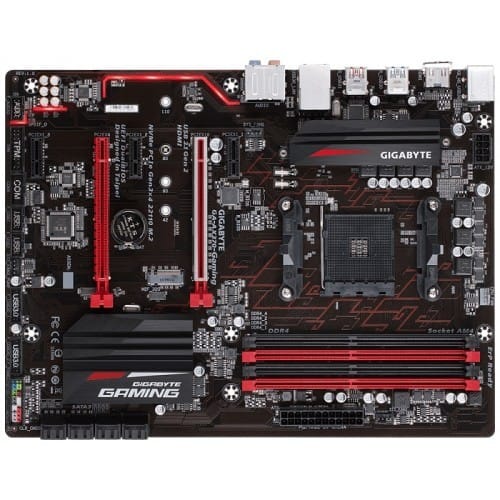

Gigabyte GA-AX370-Gaming AMD ATX AM4 socket ryzen series CPU supported Dual Channel DDR4 maximum 64GB memory motherboard has the capability of Fast 2 USB 3.1 Gen 2 with USB Type-A connectivity & Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode supported slots. Considering the graphics, it will support 2-Way CrossFire™ Multi-Graphics Support with Ultra Durable™ Metal Shielding over PCIe Slot having a maximum resolution of 4096×2160@60 Hz for HDMI port. High-Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting motherboard have the facility of Turbo B-Clock, Built-in Advanced Performance Tuning IC, Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software, Smart Fan 5 features 6 Temperature Sensors and 4 Hybrid Fan Headers and GIGABYTE™ UEFI DualBIOS™.
This ultra-durable mainboard also has APP Center Including EasyTune™ and Cloud Station™ Utilities at the best price in Bangladesh. Order the latest AMD board with 3 years of warranty facility from our online shop to have the delivery at your destination.
