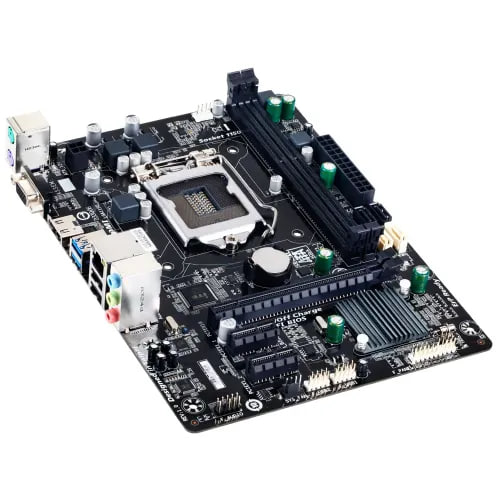

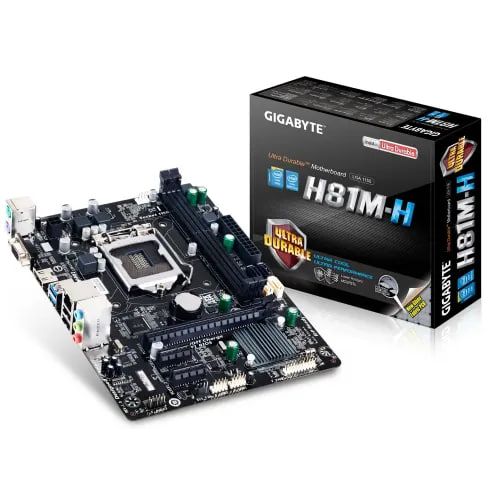

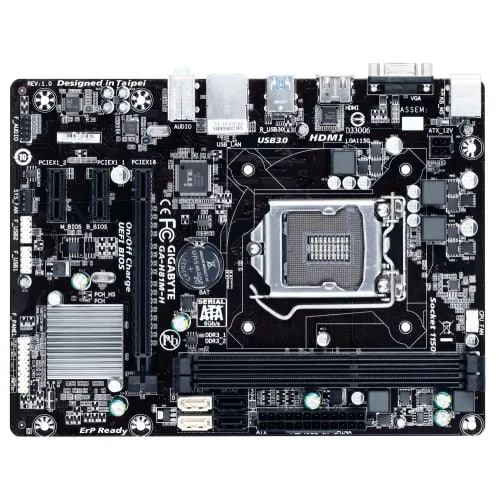

GIGABYTE GA-H81M-H DDR3 4th Gen Micro ATX Motherboard
GIGABYTE GA-H81M-H DDR3 4th Gen Micro ATX Motherboard GIGABYTE GA-H81M-H DDR3 4th Gen Micro ATX Motherboard GIGABYTE GA-H81M-H DDR3 4th Gen Micro ATX Motherboard

GIGABYTE GA-H81M-H DDR3 4th Gen Micro ATX Motherboard

(0.0)

Short Description

  • Model: GA-H81M-H
  • Supported CPU: 4th Generation Intel Core processors (LGA1150)
  • Supported RAM: 2 x 1.5V DDR3 DIMM up to 16 GB 1600MHz
  • Graphics Output: 1 x D-Sub, 1 x HDMI
  • Features: LAN with high ESD Protection
Quantity
Share

Title

Title

Specification

Basic Information
BrandGIGABYTE
ModelGA-H81M-H
Product TypeMicro ATX Motherboard
Part NumberGA-H81M-H
ChipsetIntel H81 Express
CPU Support
CPU SocketLGA1150
Supported CPUIntel Core i7 / i5 / i3, Pentium & Celeron
CPU Generation4th Gen Intel Core
Memory
Memory TypeDDR3
Memory Slots2 × DDR3 DIMM
Maximum MemoryUp to 16GB
Memory SpeedDDR3 1600 / 1333MHz
Memory ArchitectureDual Channel
ECC SupportNon-ECC
XMP SupportYes
Graphics
Integrated GraphicsIntel HD Graphics Support
HDMI1 × HDMI
HDMI VersionHDMI 1.4a
HDMI ResolutionUp to 4096 × 2160 @ 24Hz
D-Sub1 × VGA/D-Sub
D-Sub ResolutionUp to 1920 × 1200
Expansion Slots
PCI Express x161 × PCIe x16
PCI Express x12 × PCIe x1
Storage
SATA 6Gb/s2 × SATA 6Gb/s
SATA 3Gb/s2 × SATA 3Gb/s
USB
USB 3.02 × Rear
USB 2.06 × Total
Audio
Audio ChipsetRealtek ALC887
AudioHigh Definition Audio
Channel Support2 / 4 / 5.1 / 7.1 Channel
Networking
LAN ChipRealtek Gigabit LAN
LAN Speed10/100/1000 Mbps

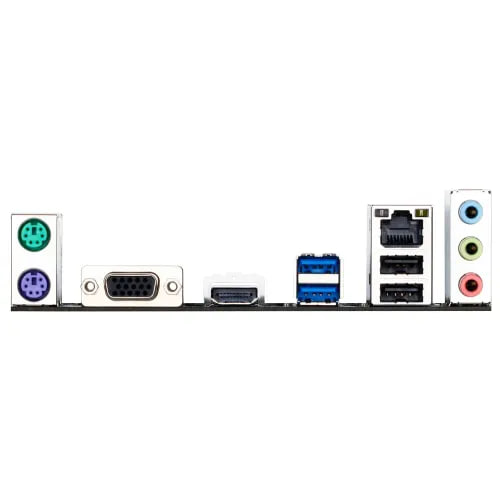

Rear I/O
PS/21 × Keyboard + 1 × Mouse
HDMI1 ×
D-Sub1 ×
USB 3.02 ×
USB 2.02 ×
LAN1 × RJ-45
Audio3 × Audio Jacks
Form Factor
Form FactorMicro ATX
Dimensions22.6 × 17cm
BIOS
BIOSAMI EFI BIOS
BIOS ROM32Mbit
Q-FlashSupported
Operating System
Supported OSWindows 10 / 8.1 / 8 / 7
Warranty
Warranty3 Years

Product Descriptions

GIGABYTE GA-H81M-H DDR3 4th Gen Micro ATX Motherboard

The GIGABYTE GA-H81M-H DDR3 4th Gen Micro ATX Motherboard is a dependable and compact motherboard designed for users building an affordable desktop PC around 4th Generation Intel Core processors. Based on the Intel H81 Express chipset, this motherboard supports Intel Core i7, Core i5, Core i3, Pentium, and Celeron processors using the LGA1150 socket. Its Micro ATX form factor makes it suitable for compact desktop builds, office computers, home PCs, and everyday computing systems.

For memory, the GA-H81M-H provides 2 DDR3 DIMM slots supporting up to 16GB of system memory with DDR3 1600/1333MHz modules. Dual-channel memory architecture helps provide efficient memory performance for everyday applications, multitasking, web browsing, office software, and multimedia usage.

The motherboard also provides flexible connectivity and storage options, including 2 SATA 6Gb/s ports and 2 SATA 3Gb/s ports. For display output, it features both HDMI and D-Sub, allowing compatible Intel processors with integrated graphics to connect directly to supported monitors. USB 3.0, Gigabit LAN, and Realtek ALC887 High Definition Audio further provide the essential connectivity required for a modern everyday desktop PC.

With GIGABYTE Ultra Durable technology, solid capacitors for the CPU VRM design, high-ESD-protection LAN, and a compact Micro ATX layout, the GA-H81M-H is a practical choice for users looking for a reliable 4th Gen Intel DDR3 motherboard.

Buy GIGABYTE GA-H81M-H Motherboard from Rose Tech & Computer

In Bangladesh, you can buy the original GIGABYTE GA-H81M-H DDR3 4th Gen Micro ATX Motherboard from Rose Tech & Computer. We offer a wide collection of the latest GIGABYTE Motherboards, Intel 4th Gen Motherboards, DDR3 Motherboards, Gaming Motherboards, and Desktop PC Components at competitive prices.

Order online from Rose Tech & Computer or visit our store to get the best GIGABYTE GA-H81M-H Motherboard Price in Bangladesh. We provide 100% genuine products, competitive pricing, secure online shopping, fast nationwide delivery, and reliable customer support. The GIGABYTE GA-H81M-H is an excellent choice for building or upgrading a budget-friendly 4th Gen Intel desktop PC.

Why Buy GIGABYTE GA-H81M-H from Rose Tech & Computer?

  • ✅ 100% Genuine GIGABYTE Product
  • ✅ Competitive Price in Bangladesh
  • ✅ Reliable 4th Gen Intel Platform
  • ✅ Fast Nationwide Delivery
  • ✅ Secure Online Shopping
  • ✅ Professional Customer Support
  • ✅ Quality-Assured Computer Components
  • ✅ Trusted Computer Store in Bangladesh

Warranty

Warranty: As per Rose Tech & Computer's current product listing
