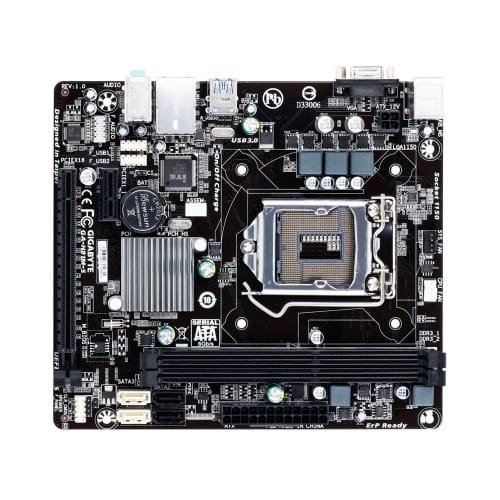

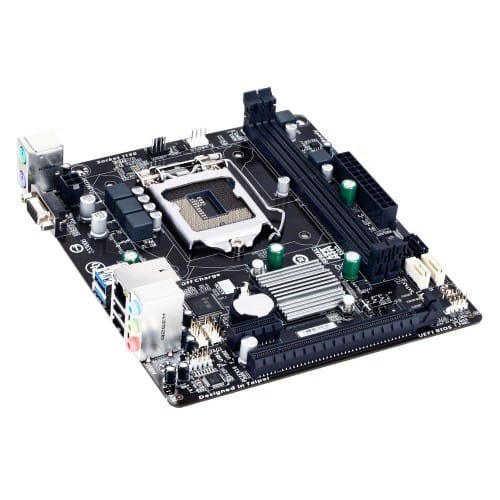

Gigabyte GA H81M-S DDR3 4th Gen Intel LGA1150 Socket Motherboard
Brand | Gigabyte |
---|---|
Model | H81M-S |
Generation | 4th |
Color | Black |
Warranty | 03 years warranty |
Supported CPU | Support for Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1150 package | |
Chipset | Intel H81 Express Chipset | |
BIOS | 1 x 32 Mbit flash Use of licensed AMI EFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Form Factor | Micro ATX Form Factor; 19.0cm x 17.0cm | |
PCI | 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot |
|
Memory | ||
Type | Dual Channel Architecture | |
Slots | 2 x DDR3 DIMM sockets | |
Supported Memory | Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
Maximum Mamory | 16 GB | |
Graphics | ||
Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920×1200 | |
Max Shared Memory | 1 GB | |
Connector & Ports | ||
USB (s) | 2 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports |
|
LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) 1 x RJ-45 port |
|
Supported Storage | 2 x SATA 6Gb/s connectors (SATA3 0~SATA3 1) 2 x SATA 3Gb/s connectors (SATA2 2~SATA2 3) |
|
Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
|
Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x speaker header 2 x USB 2.0/1.1 headers 1 x chassis intrusion header 1 x Clear CMOS jumper |
|
D-Sub (s) | 1 x D-Sub port | |
Others | ||
Special Features | Support for Q-Flash Support for Xpress Install Support for APP Center @BIOS EasyTune EZ Setup USB Blocker Support for ON/OFF Charge |
Description :
Gigabyte H81M-S 4th Gen Intel Motherboard
GIGABYTE 8 Series motherboards support the latest 4th Generation Intel Core processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, GIGABYTE 8 series motherboards are in a class of their own. The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel Core processors and Intel H81 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel processor graphics provide significantly higher frame rates in the latest DX11 3D game titles. GIGABYTE Ultra Durable debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan. GIGABYTE uses Solid Caps (Capacitors) for CPU VRM and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan. Humidity can play havoc on a motherboard’s circuitry.GIGABYTE’s new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments. GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges. GIGABYTE motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge. There’s no denying that the Apple iPhone, iPad, and iPod Touch have been a huge success and many of you may own one. However, both devices suffer from one small problem, they don’t charge very fast when connected to your PC. Wouldn’t it be great if your iPhone charged just as quickly from your computer as it does from the charger? GIGABYTE’s latest motherboards are equipped with ON/OFF Charge technology which allows you not only to charge your iPhone, iPad or iPod Touch, but it allows you to Quick Charge it. As an added bonus, it can even be charged when your PC is turned off, so even if you forget to plug it into your charger after you’ve synced up your music, it will be fully charged when you need it. GIGABYTE LAN Optimizer is designed to allow the user to manage different types of network traffic so that data streams such as HD media, web browsing or online gaming can be prioritized, taking precedence over large data downloads that tend to strangle overall network bandwidth. GIGABYTE App Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE App Center allows you to launch all GIGABYTE apps installed on your system. GIGABYTE EasyTune provides a simple and easy-to-use interface that allows users to fine-tune their system settings. As well as offering more system fans than ever before, GIGABYTE 8 Series motherboards feature updated and improved CPU and system fan speed controls, with individual airflow and speed settings available via a dedicated digital controller. GIGABYTE Smart Fan 2 allows you to configure CPU fans and system fans. The new and updated GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface by automatically downloading the latest version from the GIGABYTE servers. GIGABYTE EZ Setup combines several key utilities designed to simplify install and configuration procedures for several exclusive GIGABYTE apps including Disk Mode Switch, Smart Connect, EZ Rapid Start and EZ Smart response.
