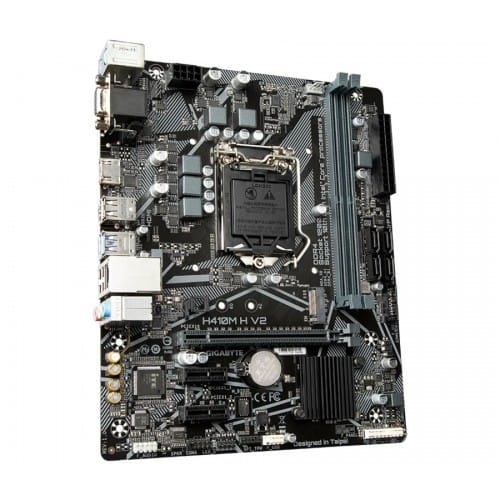

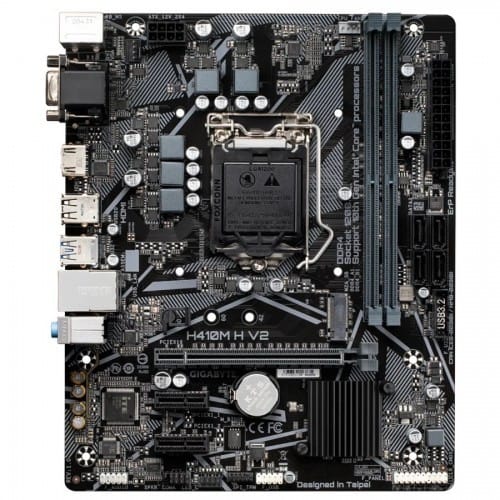

Gigabyte H410M H V2 10th/11th Gen Micro ATX Intel Motherboard

Gigabyte

  • Model: H410M H V2
  • Supports 10th & 11th Gen Intel Core Processors
  • 8-Channel HD Audio
  • Smart Fan 5 features
  • Anti-Sulfur Resistors Design

Short Description

  • Regular Price: 9,820৳
  • Special Price: 8,800৳
  • Availability: In Stock
  • Brand: GIGABYTE
  • Product ID: 10015

8,800৳  9,820৳

Compare

Gigabyte H410M H V2 10th/11th Gen Micro ATX Intel Motherboard

Brand

Gigabyte

Model

H410M H V2

Color

Black

Warranty

03 years warranty

Supported CPU Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
Chipset Intel H410 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor: 22.6cm x 18.5cm
PCI 1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/ x2 SSD support)
Memory
Type DDR4
Slots 2 x DIMM
Supported Memory Intel Core i5/ i3/ Pentium/ Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 64GB (32 GB single DIMM capacity)
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz
1 x HDMI ports, supporting a maximum resolution of 4096 x 2160 @30 Hz
Max Shared Memory 512MB

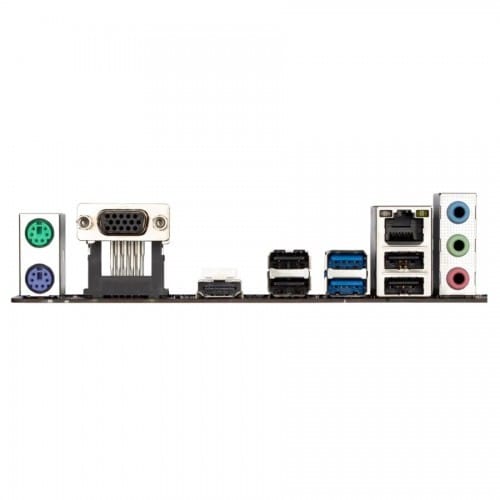

Connector & Ports
HDMI 1 x HDMI ports, supporting a maximum resolution of 4096 x 2160 @30 Hz
D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz
USB (s) 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/ 1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Intel GbE LAN chip (1 Gbit/100 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe x4/ x2 SSD support)
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready
Audio Realtek Audio CODEC
High Definition Audio
2/ 4/ 5.1/ 7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for APP Center
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install

Description

Gigabyte H410M H V2 10th/11th Gen Micro ATX Intel Motherboard

The Gigabyte H410M H V2 10th & 11th Gen Micro ATX Motherboard is made for Intel 10th and 11th Generation processors. The Gigabyte H410M H V2 11th Gen Motherboard has two DIMM RAM slots available which can support Bus Speed of up to 2933MHz. The motherboard supports HDMI and D-Sub graphical output ports and can display two displays at once. The Gigabyte motherboard also comes with 8-Channel HD Audio with High Quality Audio Capacitors which provides crystal clear sound all around. The mother also provides you with NVMe PCIe Gen3 x4 2280 M.2 Connector, Intel GbE LAN with cFosSpeed Internet Accelerator Software, and more.

CONNECTIVITY

Intel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

NVMe PCIe Gen3 x4 2280 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

COOLING

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

AUDIO

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

ULTRA DURABLE

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning. GIGABYTE motherboards also feature special anti-surge IC that protect your motherboard, helping to ensure that your PC is equipped to deal with any potentially irregular electrical spikes. There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions. GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.

GIGABYTE EXCELLENCE

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
