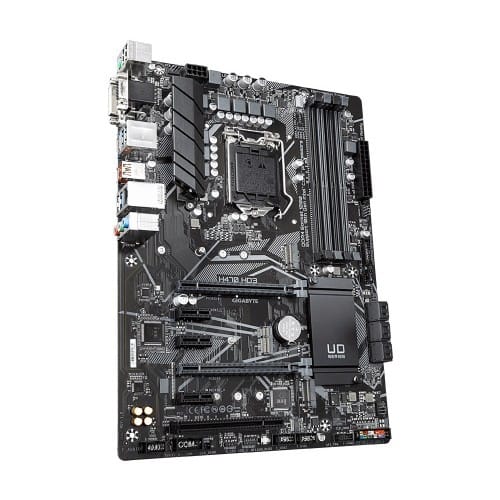

GIGABYTE H470 HD3 10th Gen Ultra Durable ATX Motherboard

Gigabyte

  • Model: GIGABYTE H470 HD3
  • Chipset: Intel H470 Express
  • Intel Socket LGA1200 for 10th Gen Processors
  • 4 x DIMM, Max. 128GB DDR4
  • CrossFire Supported

Short Description

  • Regular Price: 12,590৳
  • Special Price: 11,800৳
  • Availability:  In Stock
  • Brand: GIGABYTE
  • Product ID: 6649

11,800.00৳  12,590.00৳

GIGABYTE H470 HD3 10th Gen Ultra Durable ATX Motherboard

Brands

Gigabyte

Model

H470 HD3

Generation

Intel 10th Gen

Supported CPUSupport for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
ChipsetIntel B470 Express Chipset
BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorATX Form Factor; 30.5cm x 22.5cm
Expansion Slots
PCI1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
3 x PCI Express x1 slots
1 x PCI slot
M.2 Socket1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB)
Memory
TypeDual channel memory architecture
Slots4 x DDR4 DIMM
Supported MemoryIntel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory128 GB
Graphics
GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
Max Shared Memory512MB

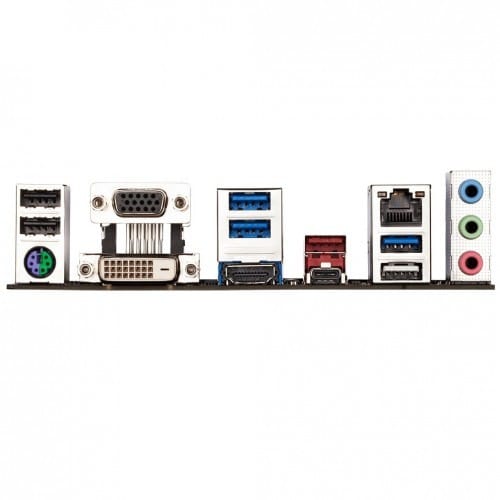

Connector & Ports
HDMI1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
USB (s)1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)Intel GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready
AudioRealtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
D-Sub (s)1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
DVI-D (s)1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
Warranty Information
Warranty03 Years
Others
Special FeaturesSupport for APP Center:
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Description :

GIGABYTE H470 HD3 10th Gen Ultra Durable ATX Motherboard

GIGABYTE 400 series motherboards use a 6+2 phase digital PWM + Lower RDS(on) MOSFETs design to support the latest 10-core Inte Core CPUs by offering incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. With two NVMe PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE Motherboards bring to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, dual M.2 provides an ideal storage solution as it also supports RAID modes. Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution. GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery. WIFI module Upgrade kit offers an easy way to upgrade WIFI Upgradeable motherboards with new and faster Gigabit WIFI connectivity without having to upgrade to a whole new system. With H470 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on H470 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations. GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
