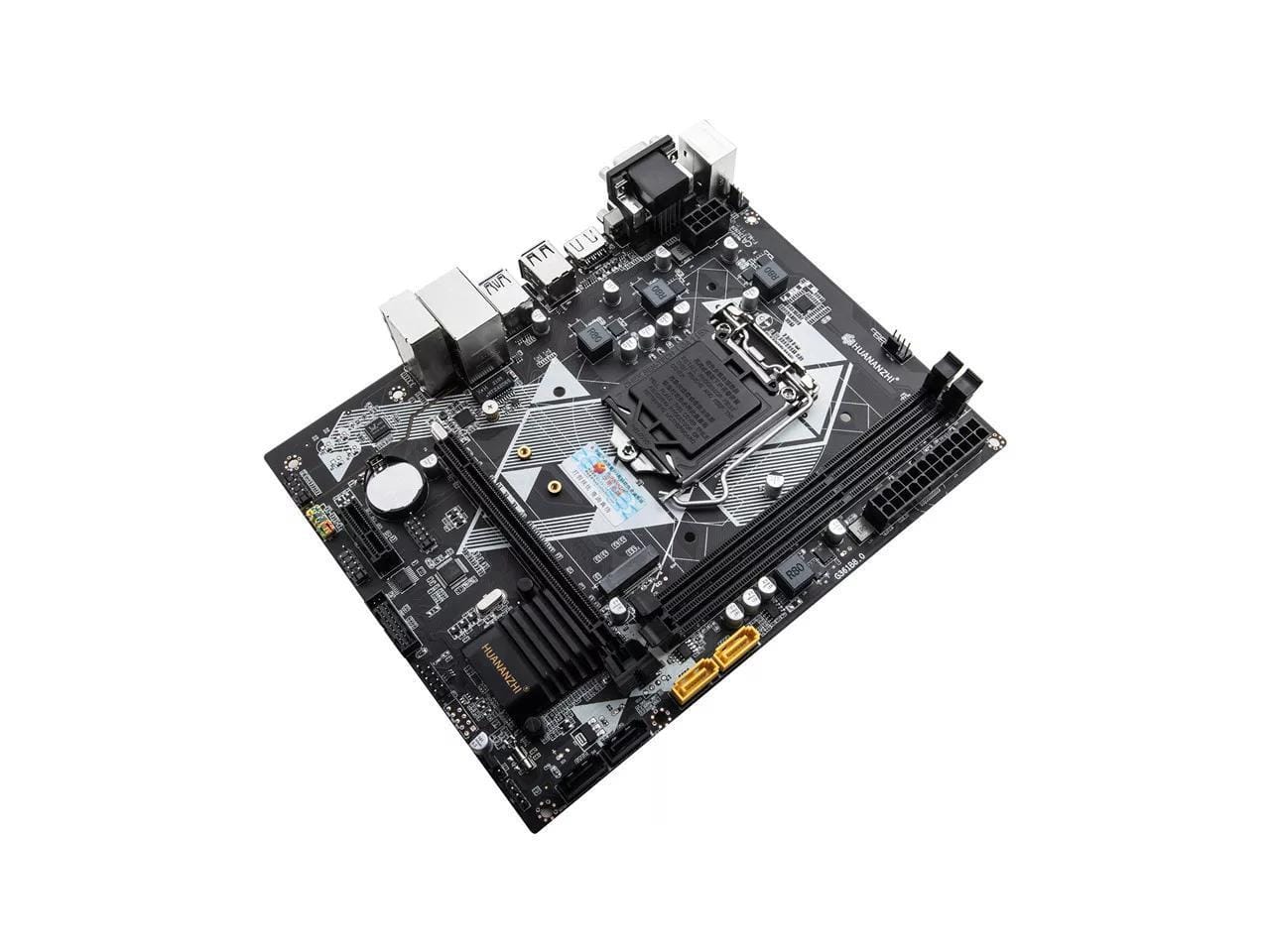

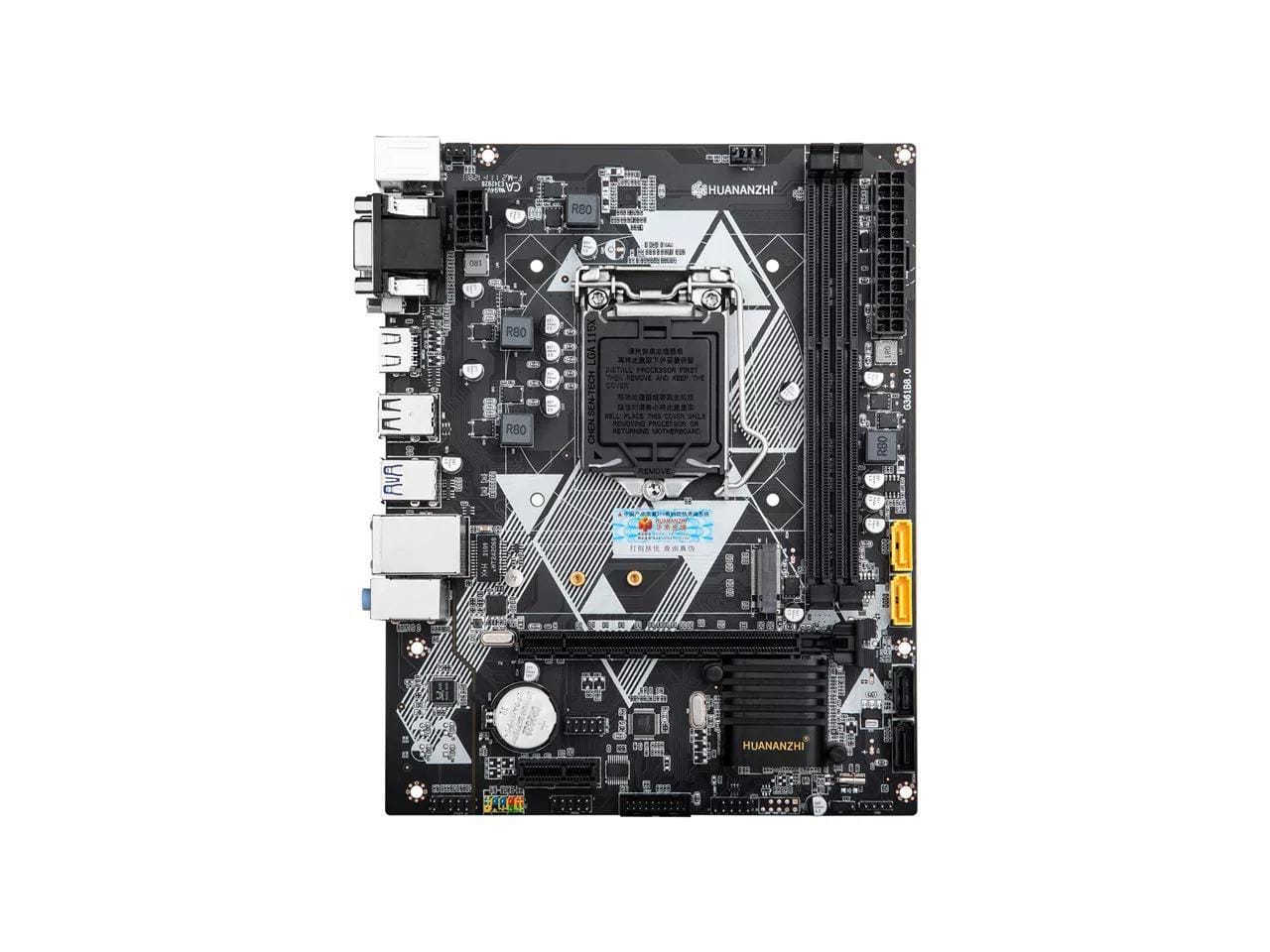

HUANANZHI H81-Q DDR-3 4th Gen NVME Support M-ATX Motherboard


  • Model: Huananzhi H81-Q
  • Support Intel®1150 Processors
  • PCIe M.2 NVME PCIe
  • 2xDDR3 Memory Slot, DDR3 1333/1066MHz
  • HDMI+VGA+DVI video interface

Short Description

  • Regular Price: 6,200
  • Special Price: 5,400৳
  • Availability: In Stock
  • Brand: HUANANZHI
  • Product ID: 10949

5,400৳  6,200৳


HUANANZHI H81-Q intel 4th Gen M.2 NVME Support M-ATX Motherboard





Supported CPU

Supports 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
Supports Intel® Turbo Boost 2.0 Technology


Intel® H81-Q


32Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 1.1 Compliant wake up events
SMBIOS 2.3.1 support
CPU, DRAM Voltage multi-adjustment

Form Factor

Micro ATX Form Factor; 21cm x 16.8cm

Memory Type

Dual Channel DDR3/DDR3L Memory Technology

Memory Slots

2 x DDR3/DDR3L DIMM Slots

Supported Memory

DDR3 1600/1333 MHz,
Supports non-ECC Memory, Dual Channel Memory Architecture

Maximum Memory


Expansion Slots PCI

1 x PCIe 3.0 x16, Slot (PCIE2: x16 mode)
1 x PCI Express 2.0 x1 Slot


1 x M.2 Socket 3, NVMe
2 x SATA2.0 (3GB/s) port(s)
2 x SATA3.0 (6GB/s) port(s)


Integrated Graphics Processor,

1 x VGA port,

1 x DVI-I port,

1 x HDMI port

Supports NVIDIA® and AMD® Graphics Cards


Realtek® ALC662 5.1-Channel, High Definition Audio CODEC

M.2 Socket

1 x M.2 PCIe NVMe Support

Internal I/O Ports

2 x USB 2.0 connector support additional 2 x USB 2.0 port(s)
1 x CPU Fan connector(s) (1 x 4-pin)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)

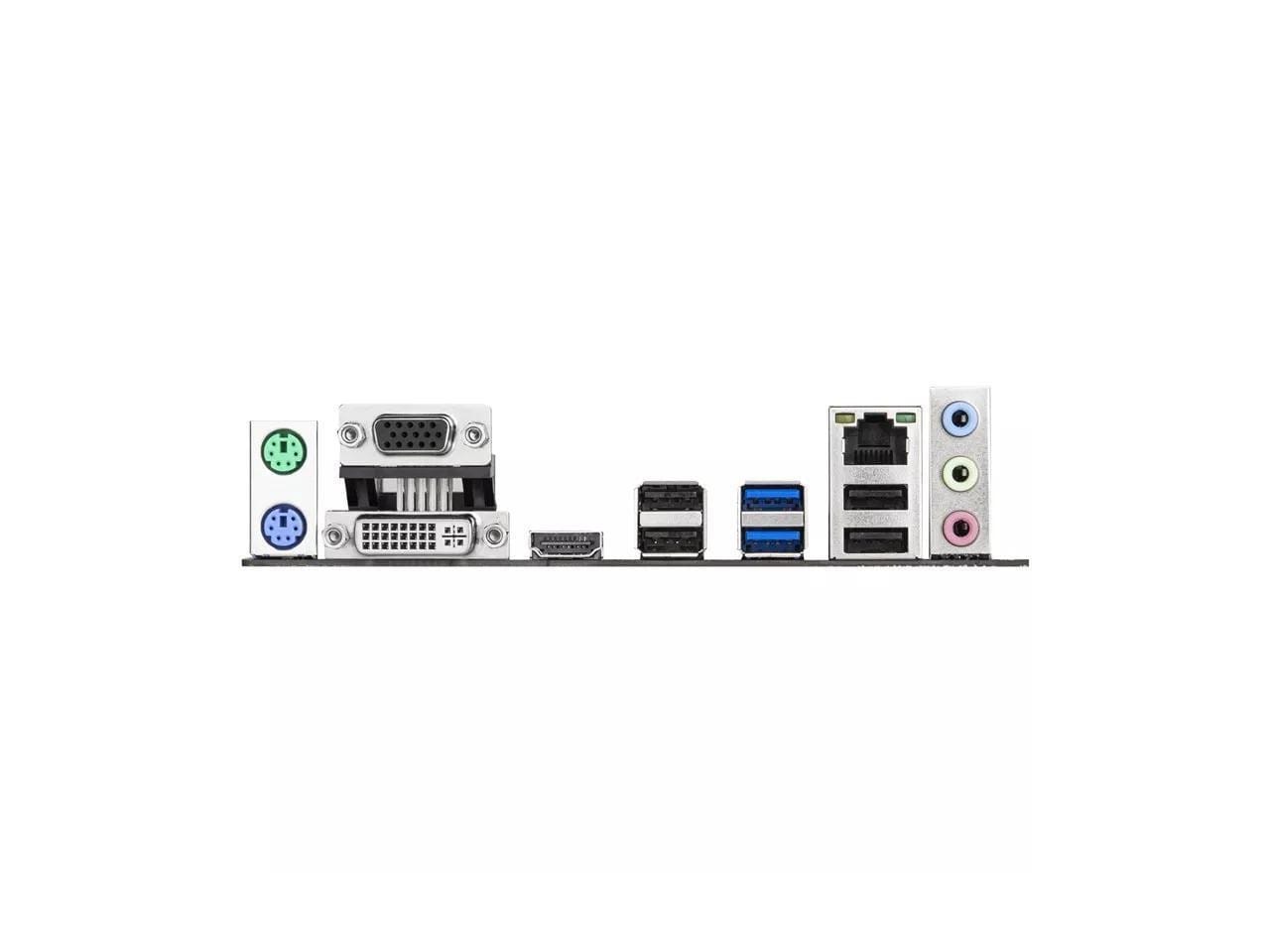

Black I/O Ports

1 x PS/2 Keyboard and Mouse
1 x LAN (RJ45) port(s)
4 x USB 2.0
2 x USB 3.0
3 x Audio jack(s)

Power interface



21cm x 16.8cm




03 years warranty


HUANANZHI H81-Q intel 4th gen LGA-1150 Support PCIe M.2 NVME M-ATX Motherboard

Quality: HUANANZHI focusing on PC hardware development and production for more than 10 years, quality control and production in strict accordance with the ISO system. Please check the store for the original Factory authorization certificate. In order to prevent counterfeit and shoddy manufacturers from entering, please make sure the product have the certificate.

Warranty: Warranty replacement within 12-36 months (In the event of a failure within the scope of the warranty, we will take back the original product. And fix or replace the same model with qualified quality function to the customer.)

HUANANZHI H81-Q intel 4th gen LGA-1150 Support PCIe M.2 NVME M-ATX Motherboard Supports LGA1150 series processors Quickly edit images and videos, quickly multitask between programs, and show your creativity. Support NVIDIA and AMD series graphics cards. The cpu has Integrated Graphics output VGA / DVI-I / HDMI. Help you increase the speed of execution of various tasks, accelerate your game, help you achieve a professional gaming environment. Support non-ECC PC memory. Support DDR3 memory, 2 channel up to 16GB, Ultra-fast PCIe M.2 (NVMe) slot design HUANANZHI M.2 solution, provide ultra-high storage performance, it can support PCIe or SATA M.2 solid state drives. Warranty03 years warranty.
