JGINYUE H311M-G D4 Intel 6th/7th/8th/9th Gen Nvme Support Motherboard
Short Description
- Model: JGINYUE H311M-G D4
- Support Intel LGA1151 6th/7th/8th/9th Gen (Core i3, Core i5, Core i7)
- RAM 2 x DDR-4 3200, 2666, 2400, 2133MHz Support 64GB
- SSD 1xM.2 2280 NVME PCIE X4 2.0 Support
- 2xUSB2.0, 4xUSB3.0, 2 xUSB2.0 PIN, 1 xUSB3.0 PIN
- Product ID: 12624
Title
Title
Specification
| Basic Information | |
|---|---|
| Brand | JGINYUE |
| Model | H311M-G D4 |
| Product Type | Micro-ATX Motherboard |
| Chipset | Intel H311 |
| Socket | LGA1151 |
| Processor Specifications | |
| Supported Processor | Intel Core i3, i5, i7, Pentium & Celeron |
| CPU Generation | Intel 6th, 7th, 8th & 9th Generation |
| Memory Specifications | |
| Memory Type | DDR4 |
| Memory Slots | 2 × DDR4 DIMM |
| Memory Channel | Dual Channel |
| Maximum Memory | Up to 64GB |
| Supported Memory Speed | 2133 / 2400 / 2666 / 3200MHz (OC) |
| Storage Specifications | |
| M.2 Slot | 1 × M.2 2280 NVMe PCIe x4 |
| SATA Ports | 4 × SATA III (6Gb/s) |
| NVMe Support | Yes |
| Expansion Slots | |
| PCI Express x16 | 1 × PCIe 3.0 x16 |
| PCI Express x1 | 1 × PCIe x1 |
| Graphics Specifications | |
| HDMI | 1 × HDMI |
| DVI | 1 × DVI-D |
| VGA | 1 × VGA |
| Maximum Display Support | Up to 3 Displays (Depending on CPU) |
| Network Specifications | |
| LAN | Realtek Gigabit Ethernet |
| Audio Specifications | |
| Audio Chipset | Realtek ALC897 HD Audio |
| Audio Channels | 7.1 Channel HD Audio |
| USB Specifications | |
| USB 3.0 | Up to 5 × USB 3.0 |
| USB 2.0 | Up to 3 × USB 2.0 |
| Internal Connectors | |
| 24-Pin Power Connector | 1 |
| 4-Pin CPU Power Connector | 1 |
| USB 3.0 Header | 1 |
| USB 2.0 Header | 1 |
| Front Panel Header | Yes |
| Front Audio Header | Yes |
| CPU Fan Header | 1 × 4-Pin |
| System Fan Header | 1 × 3-Pin |
| Physical Specifications | |
| Form Factor | Micro-ATX |
| Dimensions | 215 × 170 mm |
| PCB Design | 6-Layer PCB |
| Color | Black |
| Warranty Information | |
| Warranty | 3-Year Replacement Warranty |
Product Descriptions

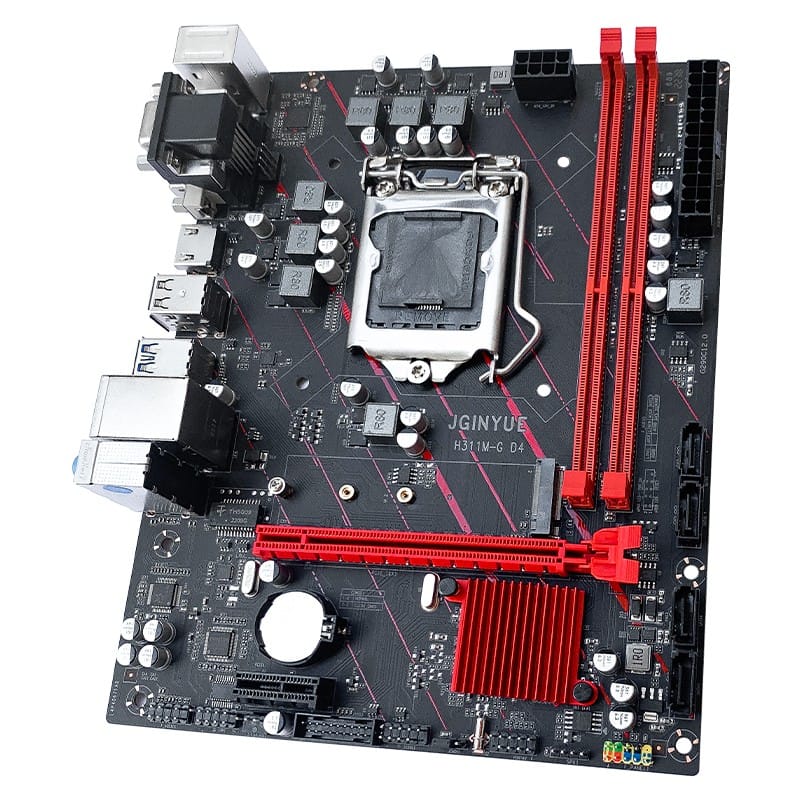

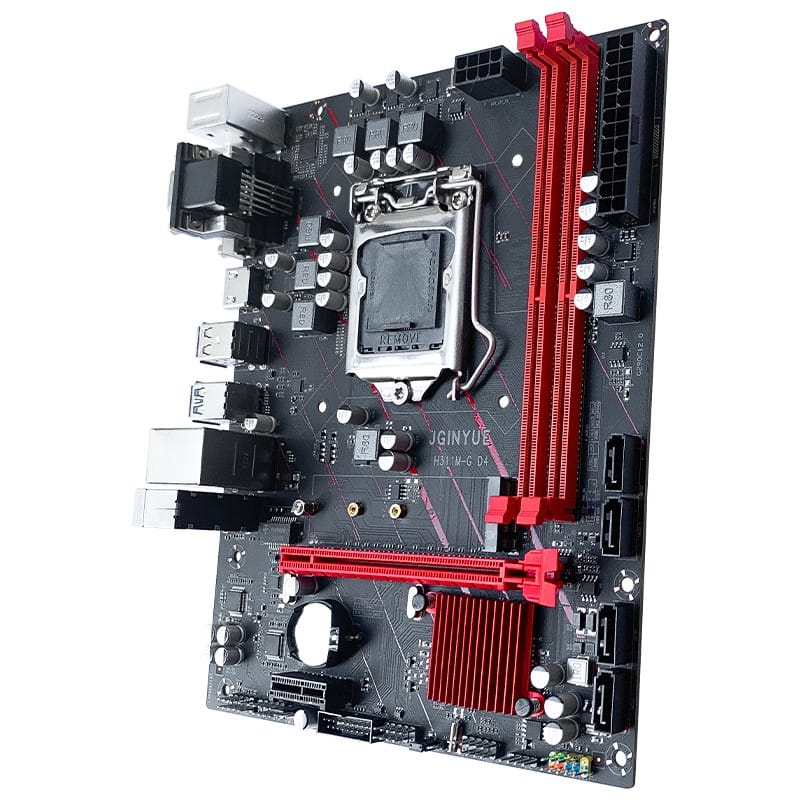

JGINYUE H311M-G D4 Intel 6th/7th/8th/9th Gen NVMe Support Motherboard
Build a reliable and high-performance desktop PC with the JGINYUE H311M-G D4 Intel H311 Motherboard. Designed for Intel LGA1151 processors, this Micro-ATX motherboard supports 6th, 7th, 8th, and 9th Generation Intel Core, Pentium, and Celeron processors, making it an excellent choice for budget gaming, office work, multimedia, and everyday computing.
Featuring dual-channel DDR4 memory support, the motherboard accommodates up to 64GB DDR4 RAM with support for memory speeds up to 3200MHz (OC) depending on the processor. This ensures smooth multitasking, faster application loading, and improved overall system performance.
For storage, the JGINYUE H311M-G D4 includes 1× M.2 NVMe 2280 slot and 4× SATA III (6Gb/s) ports, allowing users to install high-speed NVMe SSDs alongside traditional SATA SSDs or HDDs for maximum storage flexibility.

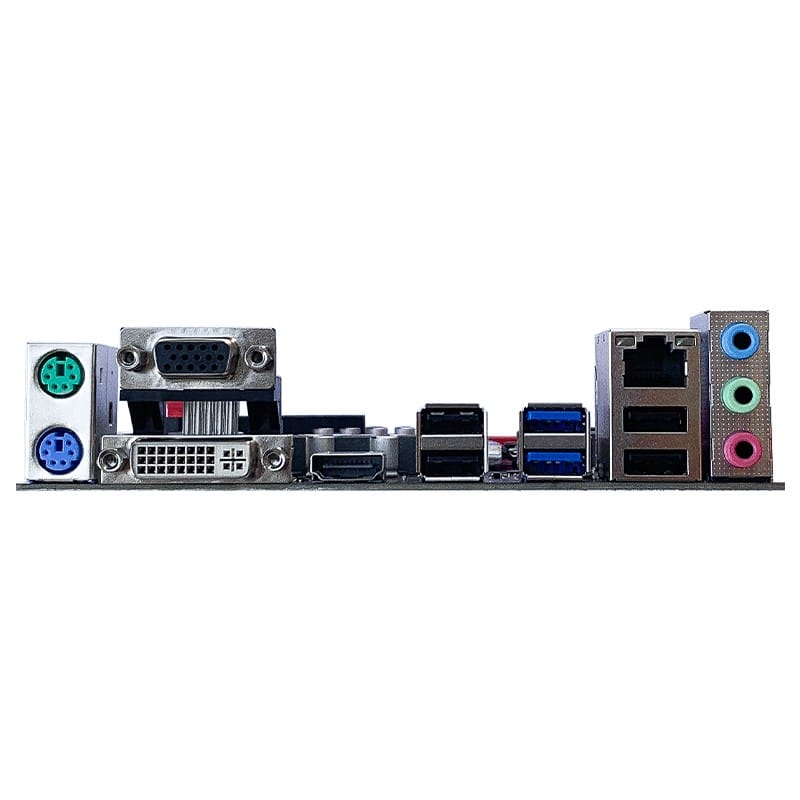

The motherboard offers multiple display outputs, including HDMI, DVI, and VGA, making it compatible with a wide range of monitors and displays. Expansion options include 1× PCI Express 3.0 x16 slot for a dedicated graphics card and 1× PCIe x1 slot for additional expansion cards. Built-in Gigabit LAN, Realtek HD Audio, and multiple USB 3.0/USB 2.0 ports provide fast networking and excellent connectivity.
Whether you're upgrading an existing system or building a new budget PC, the JGINYUE H311M-G D4 delivers excellent value, stable performance, and essential modern features.
Key Features
- Intel H311 Chipset
- Supports Intel 6th, 7th, 8th & 9th Gen LGA1151 CPUs
- 2× DDR4 Dual-Channel Memory Slots
- Supports Up to 64GB DDR4 RAM
- 1× M.2 NVMe SSD Slot
- 4× SATA III 6Gb/s Ports
- PCI Express 3.0 x16 Graphics Slot
- HDMI, DVI & VGA Display Outputs
- Gigabit LAN & HD Audio
- Micro-ATX Form Factor
Buy the JGINYUE H311M-G D4 Intel 6th/7th/8th/9th Gen NVMe Support Motherboard from Rose Tech & Computer and enjoy genuine products, competitive prices, fast nationwide delivery, and reliable after-sales support.
