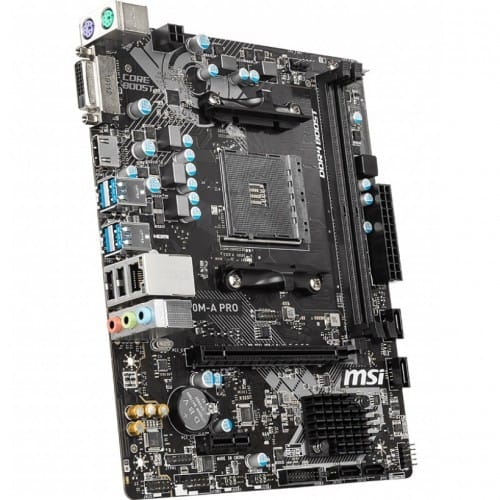

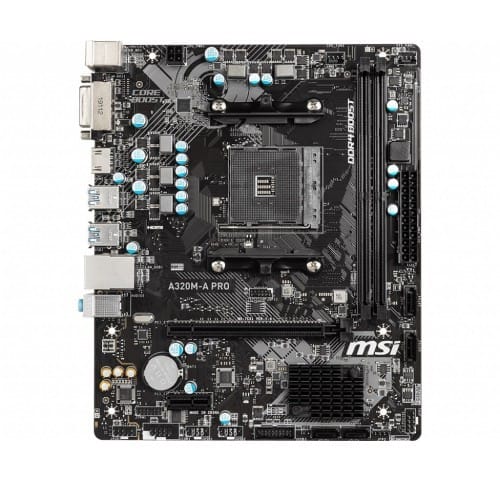

MSI A320M-A Pro AMD Micro-ATX Motherboard
Brand | MSI |
---|---|
Model | MSI A320M-A Pro |
Color | Black |
Warranty | 03 years warranty |
Supported CPU | Supports 1st, 2nd, and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4 | |
Chipset | AMD A320 Chipset | |
Form Factor | 8.9 in. x 7.4 in. (22.6 cm x 18.7 cm) m-ATX Form Factor |
|
PCI | 1 x PCIe 3.0 x16 slot Supports x16 speed with 1st, 2nd, and 3rd Gen AMD Ryzen processors Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors 1 x PCIe 2.0 x1 slots |
|
Memory | ||
Type | Dual channel memory architecture | |
Slots | 2 x DDR4 memory slots | |
Supported Memory | Support 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ MHz | |
Maximum Memory | 64GB | |
Graphics | ||
Graphics | 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz 1 x HDMI port 1.4, supports a maximum resolution of 4096×2160@30Hz |
|
Max Shared Memory | GraphicssMaximum shared memory of 2048 MB | |

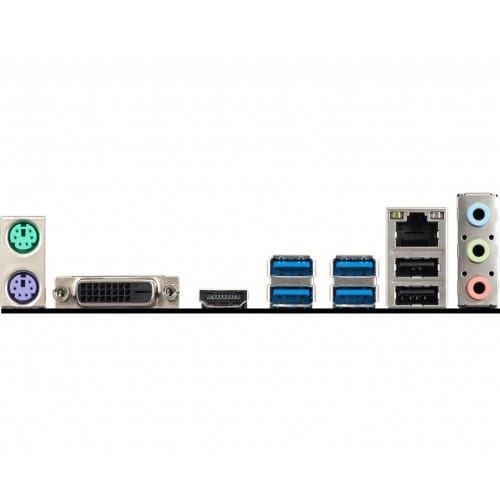

Connector & Ports | ||
HDMI | 1 x HDMI port 1.4, supports a maximum resolution of 4096×2160@30Hz | |
DVI-D (s) | 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz | |
USB (s) | AMD A320 Chipset 6 x USB 3.2 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal connectors) 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal connectors |
|
LAN Port (s) | 1 x Realtek 8111H Gigabit LAN controller | |
Supported Storage | AMD A320 Chipset 4 x SATA 6Gb/s ports Supports RAID 0, RAID 1, and RAID 10 |
|
Audio | Realtek ALC892 Codec 7.1-Channel High-Definition Audio |
|
Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 1 x Serial port connector 2 x Front panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |
|
TPM (Trusted Platform Module ) | 1 x TPM module connector | |
Description
MSI A320M-A Pro AMD Micro-ATX Motherboard
MSI motherboards feature tons of convenient and smart designs, such as a convenient pin-header keep-out zone, friendly SATA & USB location, and so on, so DIY users can pick and choose any gaming rig they want. Cooling is essential for a high-performance PC to sustain intense workloads. PRESTIGE X570 CREATION features a heavy-duty heatsink on the MOSFETs for reliable processor power delivery. Numerous fan headers with full fan speed control let builders tune their system cooling the way they like it. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for the CPU and motherboard, which will adjust the fan speeds automatically. Every MSI motherboard is certified by a strict mechanic that features a convenient pin-header keep-out zone, and friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY users can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part – memory. Combining with MSI DDR4 Boost technology, we provide maximum compatibility, so you confirm and choose any gaming rig you want. With years of experience in creating performance-enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming. Moreover, we made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance. MSI motherboards featured all the latest solutions for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield. High-quality materials and smart fan optimizations contribute to cooling all essential components, which is key to making sure your system runs stable and delivers the best performance at all times. Each MSI motherboard is built based on a specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surfaces and sleek but simple cuts in order to make the heatsink and appearance look ripped and powerful. Combined with neutral colors, such as black, grey, and silver, as the main background, the MSI motherboard can perfectly fit different RGB LED effects and strongly shows the gamers tunes.
