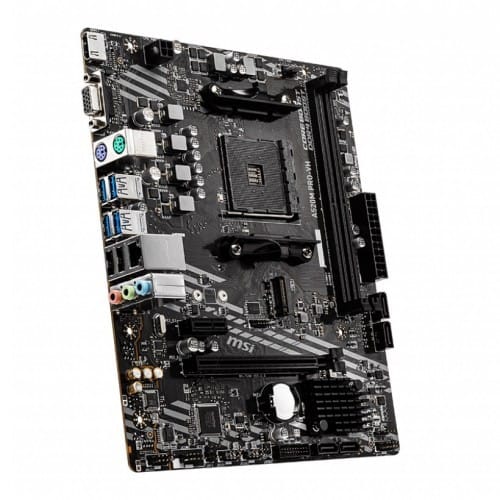

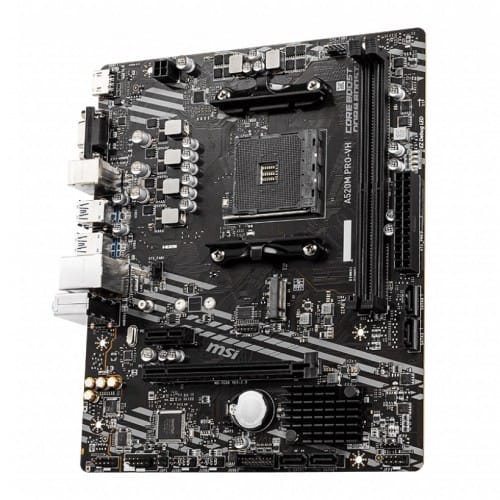

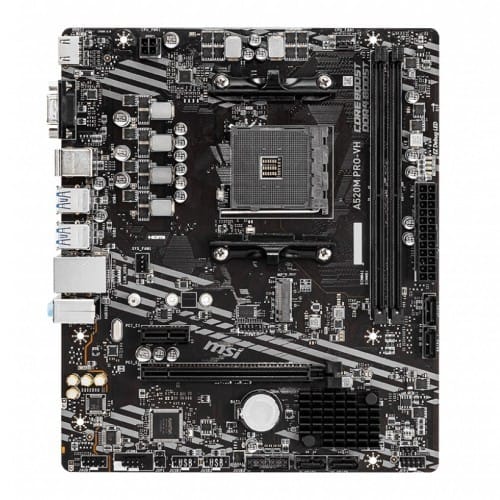

MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard

MSI

  • Model: A520M PRO-VH
  • Supports Ryzen 5000 & 3000 Series & Ryzen 4000 G-Series processors
  • Supports DDR4, up to 4600(OC) MHz
  • Core Boost and DDR4 Boost
  • 2oz Thickened Copper PCB

Short Description

  • Regular Price: 7,150৳
  • Special Price: 6,800৳
  • Availability: In Stock
  • Brand: MSI
  • Product ID: 11074

6,800.00৳  7,150.00৳

MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard

Brands

MSI

Model

A520M PRO-VH

Color

Black

Warranty

03 years warranty

Supported CPUAMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors
ChipsetAMD A520 Chipset
Form FactormATX Form Factor
9.3 in. x 7.9 in. (23.6 cm x 20 cm)
AudioRealtek ALC892/ALC897 Codec
7.1-Channel High Definition Audio
PCI1x PCIe 3.0 x1 slot
1x PCIe 3.0 x16 slot
M.2 Socket1x M.2 slot (Key M) (from AMD Processor)
Memory
TypeDual-channel memory architecture
Slots2x DDR4 memory slots
Supported MemorySupports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
1DPC 1R max speed 4600 MHz
1DPC 2R max speed 3866 MHz
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Maximum Memory64GB
Graphics
Graphics1x HDMI 1.4 port, supporting a maximum resolution of 4096×2160 @60Hz
Support for HDMI 1.4 version, HDCP 1.4 & 2.3
1 x VGA port, supporting a maximum resolution of 2048×1280 @60Hz
Max Shared Memory16GB
Connector & Ports
HDMI1x HDMI 1.4 port, supporting a maximum resolution of 4096×2160 @60Hz
VGA (s)1 x VGA port, supporting a maximum resolution of 2048×1280 @60Hz
USB (s)AMD A520 Chipset:
2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors
AMD Processor:
4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)1x Realtek RTL8111H LAN controller
Supported StorageAMD A520 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M) (from AMD Processor)
Supports PCIe 3.0
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Audio1x Front panel audio connector
Internal I/O Ports1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
TPM (Trusted Platform Module )1x TPM module connector

Description

MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard

The MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard (China) supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors. It supports DDR4 Memory, up to 4600(OC) MHz. Running at PCI-E Gen3 x4 maximizes performance for NVMe-based SSDs. It features M.2 Shield Frozr. Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster. It comes with a premium layout and digital power design to support more cores and provide better performance. Advanced technology to deliver pure data signals for the best performance and stability. It comes with a 2oz Thickened Copper PCB. An enhanced PCB design improves heat dissipation and performance reliability. Audio Boost rewards your ears with studio-grade sound quality. It features Dragon Center, the brand new software that integrates all MSI exclusive tools with a user-friendly user interface. It has 3 years of warranty.
