MSI B450 GAMING PLUS MAX AM4 AMD ATX Motherboard
Color | Black |
---|---|
Warranty | 03 years warranty |
Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen, Ryzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics and Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 | |
Chipset | AMD B450 Chipset | |
Form Factor | ATX Form Factor | |
Audio | 7.1-Channel High Definition Audio | |
PCI | 1 x PCIe 3.0 x16 slot (PCI_E1) 1st, 2nd and 3rd Gen AMD Ryzen support x16 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support x8 mode Athlon with Radeon Vega Graphics support x4 mode 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1 4 x PCIe 2.0 x1 slots1 |
|
M.2 Socket | – 1 x M.2 slot (Key M) | |
Memory | ||
Type | DDR4 | |
Slots | 4 x DDR4 memory slots, support up to 64GB | |
Supported Memory | – Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) – For AMD Ryzen Gen3 (R5/R7/R9) – Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/4133 MHz (by A-XMP OC MODE) – For AMD Other CPU – Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz (by A-XMP OC MODE) – Dual channel memory architecture – Supports non-ECC UDIMM memory – Supports ECC UDIMM memory (non-ECC mode) |
|
Maximum Mamory | MAX MEMORY (GB): 64 | |
Graphics | ||
Graphics | – 1 x DVI-D port, support a maximum resolution of 1920×1200 @60Hzz1 – 1 x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz1 – Only support when using Ryzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics and Athlon with Radeon Vega Graphics processors |
|
Max Shared Memory | – Maximum shared memory of 2048 MB | |
Connector & Ports | ||

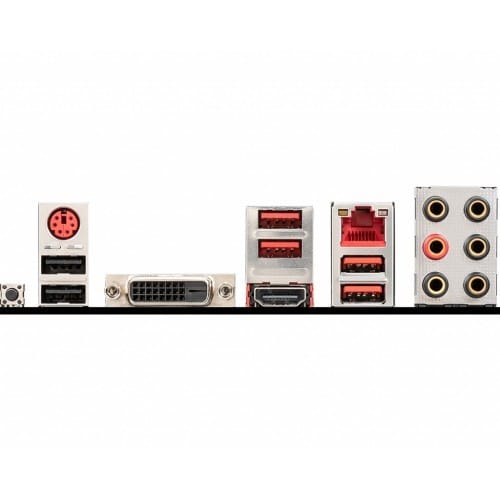

HDMI | – 1 x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz | |
USB (s) | AMD B450 Chipset: – 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel – 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector – 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU: – 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
|
LAN Port (s) | – 1 x Realtek 8111H Gigabit LAN controller | |
Supported Storage | AMD CPU: 2 x SATA 6Gb/s ports1 1 x M.2 slot (Key M)1 Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices AMD B450 Chipset: 4 x SATA 6Gb/s ports |
|
Audio | -7.1-Channel High Definition Audio | |
Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Serial port connector 1 x Parallel port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 2 x 5050 RGB LED strip 12V connectors |
|
DVI-D (s) | 1 x DVI-D port, support a maximum resolution of 1920×1200 @60Hzz | |
Others | ||
Bundled Software | – Support for Windows 10 64-bit – Support for Windows 7 64-bit – To support Windows 7 64-bit, must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
|

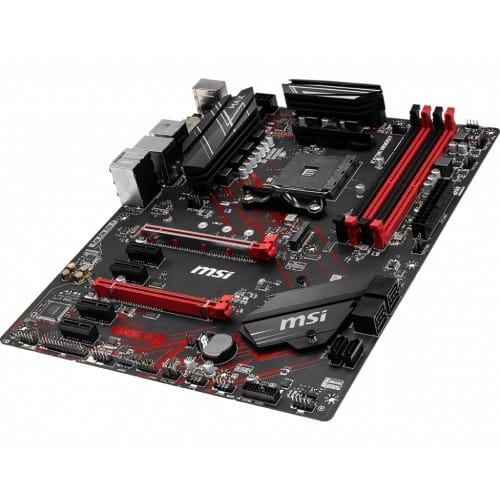

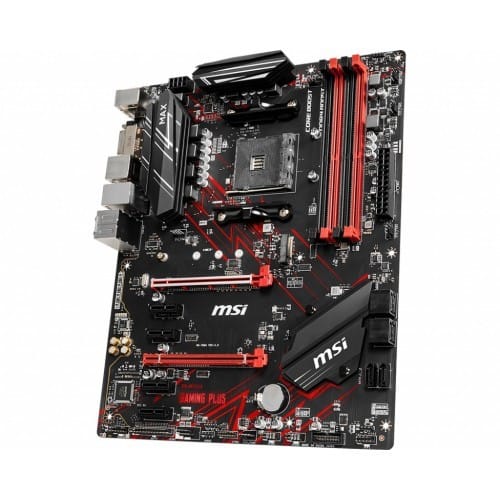

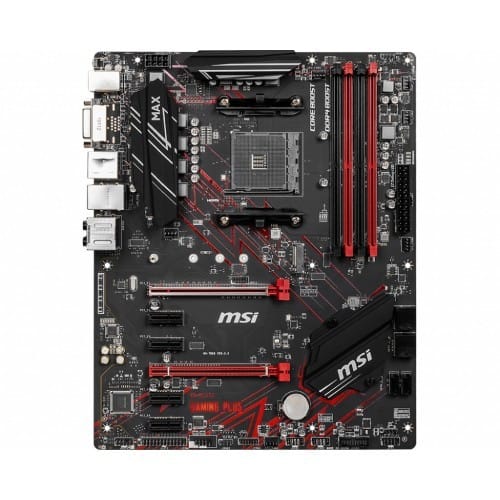

MSI B450 GAMING PLUS MAX AM4 AMD ATX Motherboard
Built on the AMD B450 chipset, the MSI B450 GAMING PLUS MAX AM4 ATX Motherboard supports 3rd generation AMD Ryzen processors with the AM4 socket. Its four memory slots support a max of 64GB of DDR4 RAM that can be overclocked up to 4133 MHz. For storage, there are six SATA III ports as well as an M.2 slot utilizing the PCIe 3.0 x4 interface. While the motherboard is equipped with DVI-D and HDMI outputs for integrated graphics, it also has a PCIe 3.0 x16 slot for a dedicated graphics card. Other notable integrated features include Realtek ALC 892 7.1-Channel HD Audio and Realtek 8111H Gigabit LAN. This motherboard features PCIe steel armor and slot to protect GPUs from bending and EMI. Equipped with Core Boost, DDR4 Boost, Turbo M.2, a Flash BIOS button, and a USB 3.2 Gen 2 connector, the B450 GAMING PLUS MAX provides the performance you need to build your own gaming rig.
AMD B450 Chipset
The AMD B450 chipset delivers high performance and flexibility with the AMD AM4-socket Ryzen processors. It offers AMD StoreMI storage acceleration technology.
Additional Features
- AMD Turbo USB 3.2 Gen 2
- Turbo M.2
- Flash BIOS Button
- Audio Boost
- Core Boost
- DDR4 Boost
- 2-Way AMD CrossFire Support
- EZ Debug LED
MSI motherboard is built based on the specific topic in order to match different favours and tastes. The MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. In this motherboards, MSI Mystic Light provides a complete function to control the RGB light all around the ecosystem. Select the available colors from the palette to match your favorite and mood. This AMD motherboards also combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes. The MSI B450 GAMING PLUS MAX Motherboard comes with 03 years of warranty.
