-10%
, ,

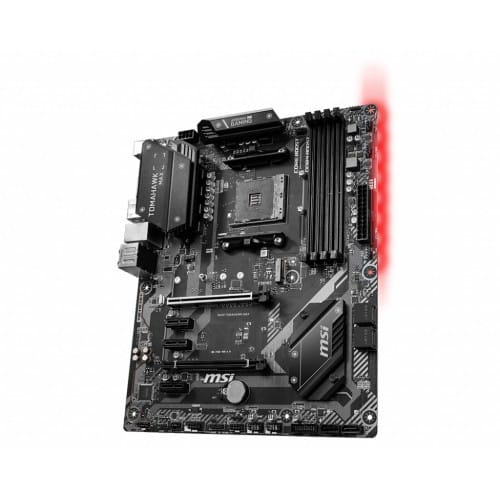

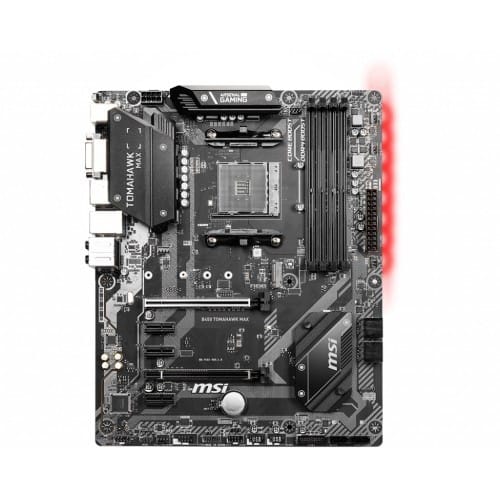

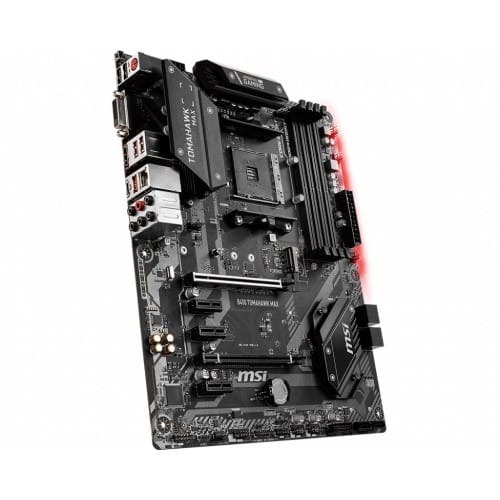

MSI B450 TOMAHAWK MAX AM4 AMD ATX Motherboard

MSI

  • Model: MSI B450 TOMAHAWK MAX
  • Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen
  • Lightning Fast Game experience
  • Extended Heatsink Design
  • Core Boost, DDR4 Boost, Multi-GPU

Short Description

  • Regular Price: 12,620৳
  • Special Price: 11,400৳
  • Availability:  In Stock
  • Brand: MSI
  • Product ID: 6712

11,400.00৳  12,620.00৳

MSI B450 TOMAHAWK MAX



Built on the AMD B450 chipset, the B450 TOMAHAWK MAX AM4 ATX Motherboard supports 3rd generation AMD Ryzen processors with the AM4 socket. Its four memory slots support a max of 64GB of DDR4 RAM that can be overclocked up to 4133 MHz. For storage, there are six SATA III ports as well as a Turbo M.2 slot utilizing the PCIe 3.0 x4 interface. While the motherboard is equipped with DVI-D and HDMI outputs for integrated graphics, it also has a PCIe 3.0 x16 slot for a dedicated graphics card. Other notable integrated features include Realtek ALC892 7.1-Channel HD Audio and Realtek 8111H Gigabit LAN. This motherboard features an extended PWM heatsink and an enhanced circuit design. Equipped with DDR4 Boost, Audio Boost, Core Boost, and EZ Debug LED, the B450 TOMAHAWK MAX provides the performance you need to build your own gaming rig. The right side of the motherboard also supports MSI Mystic Light RGB lighting.

Please note that this motherboard does not currently support the AMD Ryzen 5000 series processors at this time. Support will be added through a BIOS update later in January, 2021.

AMD B450 Chipset

The AMD B450 chipset delivers high performance and flexibility with the AMD AM4-socket Ryzen processors. It offers AMD StoreMI storage acceleration technology.

MSI Mystic Light RGB Lighting

The right side of this motherboard features built-in LED lighting. Choose from over a million colors and a variety of lighting effects to fit your style. You can also sync it with other MSI Mystic Light-compatible hardware and peripherals to complete your build.

Additional Features

  • Turbo M.2
  • AMD Turbo USB 3.2 Gen 2
  • Extended Heatsink Design
  • Core Boost
  • DDR4 Boost
  • Audio Boost
  • 2-Way AMD CrossFire
  • EZ Debug LED





Brand – MSI, Model – MSI B450 TOMAHAWK MAX, CPU Sockets – AM4, Chipset – AMD B450 Chipset, Supported CPU – AMD Ryzen 1st/2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors & Athlon with Radeon Vega Graphics, Memory Type – DDR4, Memory MHz – 1866/ 2133/ 2400/ 2667Mhz by JEDEC, AMD Ryzen Gen3 (R5/R7/R9) (2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133MHz) (by A-XMP OC MODE), AMD Other CPU (2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz) (by A-XMP OC MODE), Memory Channel – Dual Channel, Memory Slot – 4, Memory Max. – 64GB, Optane Memory Support – No, Graphic – Onboard Graphics, Multi-GPU Support – 2-Way AMD CrossFire, PCI Express Slot – 1 x PCIe 3.0 x16 slot (PCI_E1), 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode), 3 x PCIe 2.0 x1 slots, Storage Interface – 6Gb/s, M.2 Slot – 1 x M.2 slot (PCIe 3.0 x4 or PCIe 3.0 x2 and Supports SATA 2242/ 2260 /2280/ 22110 storage devices), LAN Chipset – Realtek 8111H, LAN Speed (Mbps) – 10/100/1000Mbps, Audio Chipset – Realtek ALC892, Audio Channel – 7.1-Channel, Wi-Fi – No, Bluetooth – No, USB Port – 1 x USB3.2 Gen 2 Type-C, 1 x USB3.2 Gen 2 Type-A, 4 x USB3.2 Gen 1 Type-A, 6 x USB2.0, VGA Port – No, DVI Port – 1, HDMI Port – 1, DisplayPort (DP) – No, IDE Port – No, SATA Port – 2 x SATA, 4 x SATA, DirectX Support – 12, FireWire – No, CrossFire Support – Yes, RaidSupport – 0,1,10, Thunderbolt – No, TPM Port – Yes, COM Port – No, Form Factor – ATX, Supported Operating System – Windows 7 / 10, Special Features – Military style with extended heatsink design for better thermal solution, plus DDR4 Boost, Core Boost, Turbo M.2 and USB 3.2 Gen2 connector, Extended Heatsink Design, Lightning Fast Game experience, MULTI-GPU With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire, Flash BIOS Button, Heavy Plated Gaming Heatsinks, Military Style designed for maximum cooling, PCI-E Steel Armor, Arsenal Sticker Area, Free for customization with personal style, Others – 1 x M.2 slot, 1 x 4-pin CPU fan connector, 1 x 4-pin water-pump-fan connector, 1 x TPM module connector, 1 x Front panel audio connector, 1 x Serial Port connector, 1 x Clear CMOS jumper, 9 mounting holes, Warranty – 3 Year

SKU: B450 TOMAHAWK MAX Categories: , ,

MSI B450 TOMAHAWK MAX AM4 AMD ATX Motherboard

Brands

MSI

Model

B450 TOMAHAWK MAX

Supported CPUSupports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
ChipsetAMD B450 Chipset
Form FactorATX Form Factor
Audio7.1-Channel High Definition Audio
Expansion Slots
PCI– 1 x PCIe 3.0 x16 slot (PCI_E1)
-1st, 2nd and 3rd Gen AMD Ryzen processors support x16 speed
– Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors support x8 speed
– 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)
– 3 x PCIe 2.0 x1 slots
M.2 Socket– 1 x M.2 slot (Key M)
– Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen
AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s
– Supports 2242/ 2260 /2280/ 22110 storage devices
Memory
TypeDDR4
Slots4 x DDR4 memory slots, support up to 64GB
Supported Memory– Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
– For AMD Ryzen Gen3 (R5/R7/R9)
– Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE)
– For AMD Other CPU
– Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
– Dual channel memory architecture
– Supports non-ECC UDIMM memory
– Supports ECC UDIMM memory (non-ECC mode)
Maximum MamoryMaximum shared memory of 2048 MB
Graphics
Graphics– 1 x DVI-D port, support a maximum resolution of 1920×1200 @60Hz1,2
– 1 x HDMI 1.4 port, supports a maximum resolution of 4096×2160@30Hz, 2560×1600@60Hz1,2
– Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics processors
Max Shared Memory– Maximum shared memory of 2048 MB

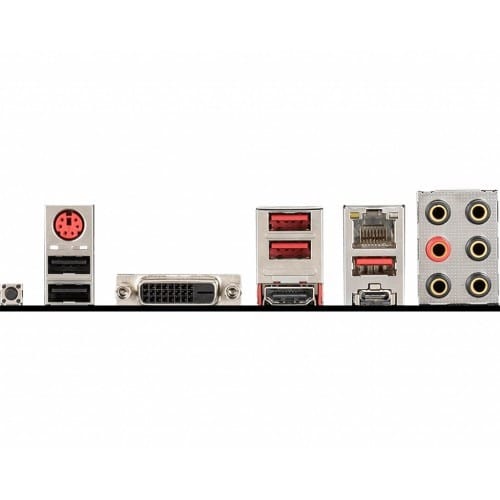

Connector & Ports
HDMI– 1 x HDMI 1.4 port, supports a maximum resolution of 4096×2160@30Hz, 2560×1600@60Hz
USB (s)AMD B450:
1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD CPU:
2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
LAN Port (s)– 1 x Realtek 8111H Gigabit LAN controller
Supported StorageAMD CPU:
2 x SATA 6Gb/s ports1
1 x M.2 slot (Key M)1
Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s
Supports 2242/ 2260 /2280/ 22110 storage devices
AMD B450:
4 x SATA 6Gb/s ports
Audio– 7.1-Channel High Definition Audio
– HD Audio Connectors
– 1 x Front panel audio connector
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water-pump-fan connector
4 x 4-pin system fan connectors
1 x TPM module connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x Serial Port connector
1 x Clear CMOS jumper
2 x 5050 RGB LED strip 12V connectors
DVI-D (s)1 x DVI-D port, support a maximum resolution of 1920×1200 @60Hz
Others
Bundled Software-Support for Windows 10 64-bit
-Support for Windows 7 64-bit
-To support Windows 7 64-bit, must install an AMD Pinnacle Ridge & Summit Ridge CPU.
Warranty Information
Warranty03 years warranty
