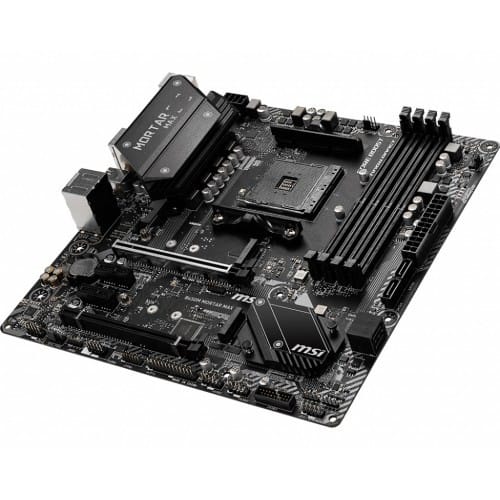

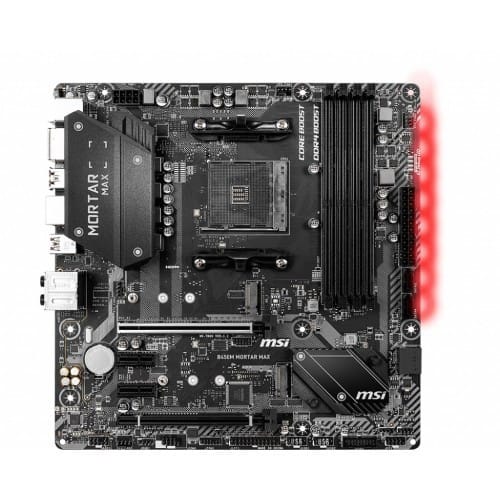

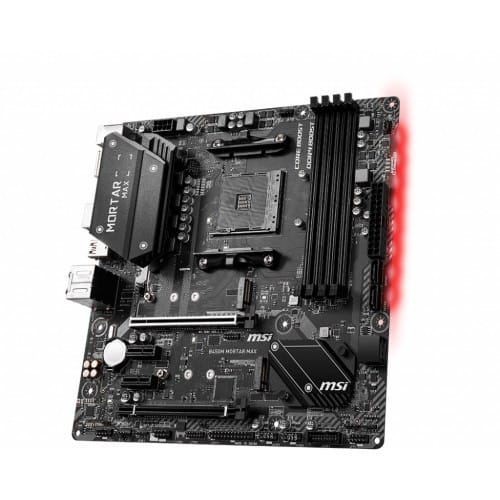

MSI B450M MORTAR MAX AMD M-ATX Gaming Motherboard

MSI

  • Model: MSI B450M MORTAR MAX Military Style
  • Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen
  • Supports DDR4, up to 4133(OC) MHz
  • Extended Heatsink Design
  • Lightning Fast Game experience

Short Description

  • Regular Price: 12,200৳
  • Special Price: 1,900৳
  • Availability: In Stock
  • Brand: MSI
  • Product ID: 6694

10,900৳  12,200৳

Compare

MSI B450M MORTAR MAX AMD M-ATX Gaming Motherboard

Brand

MSI

Model

B450M MORTAR MAX

Color

Black

Warranty

03 years warranty

Supported CPU Supports 1st, 2nd, and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
Chipset AMD B450 Chipset
BIOS Flash BIOS Button
Form Factor M-ATX Form Factor
Audio Realtek ALC892 Code:
– 7.1-Channel High Definition Audio
– Supports S/PDIF output
PCI – 1 x PCIe 3.0 x16 slot (PCI_E1)
– Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors
– Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon
Graphics processors
– Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors
– 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1
– 2 x PCIe 2.0 x1 slots2
M.2 Socket AMD B450 Chipset:
– 1 x M.2 slots (M2_2, Key M)1
– Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices CPU:
– 1x M.2 slot (M2_1, Key M)1
– Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen (AMD
Ryzen with Radeon Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics)and SATA 6Gb/s 2242/
2260 /2280 storage devices
Memory
Type DDR4
Slots – 1 x PCIe 3.0 x16 slot (PCI_E1)
– Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors
– Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors
– Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors
– 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)
– 2 x PCIe 2.0 x1 slots
Supported Memory – Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
– Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
– Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
– Supports non-ECC UDIMM memory
– Supports ECC UDIMM memory (non-ECC mode)
Maximum Memory – support up to 64GB
Graphics
Graphics Only support when using AMD Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors
Max Shared Memory The maximum shared memory of 2048 MB

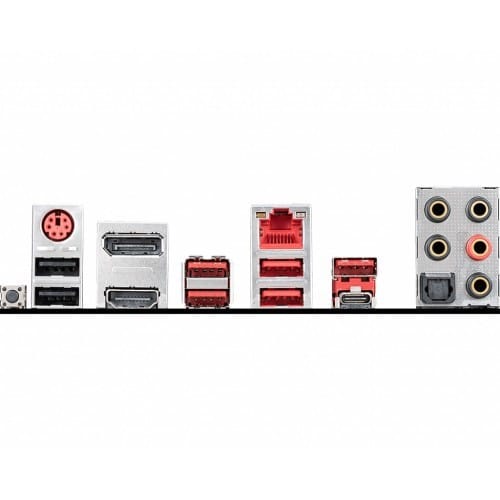

Connector & Ports
HDMI 1 x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz
Display Port (s) 1 x DisplayPort, support a maximum resolution of 4096×2304 @60Hz, 2560×1600 @60Hz, 3840×2160 @60Hz, 1920×1200 @60Hz
USB (s) AMD B450 Chipset:
– 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
– 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
– 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
– 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU
AMD Processor:
– 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
LAN Port (s) 1 x Realtek RTL8111H-CG Gigabit LAN controller
Supported Storage AMD B450 Chipset:
– 4 x SATA 6Gb/s ports1
– 1 x M.2 slots (M2_2, Key M)1
– Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices
AMD CPU:
– 1x M.2 slot (M2_1, Key M)1
– Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD
Ryzen with Radeon Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics)and SATA 6Gb/s 2242/
2260 /2280 storage devices
Audio – 7.1-Channel High Definition Audio
– Supports S/PDIF output
Internal I/O Ports 1 x 24-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1 x USB 3.2 Gen1 connector (support additional 2 USB 3.2 Gen1 ports)
1 x 4-pin CPU fan connector
3 x 4-pin system fan connectors
2 x 5050 RGB LED strip 12V connectors
1 x TPM module connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x Serial Port connector
1 x Parallel Port connector
DVI-D (s) Yes
Others
Special Features RAID: AMD B450 Chipset
– Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
– Supports RAID 0 and RAID 1 for M.2 NVMe RAID
Bundled Software – Support for Windows 10 64-bit
– Support for Windows 7 64-bit
(To support Windows 7 64-bit, must install an AMD Pinnacle Ridge & Summit Ridge CPU)

MSI B450M Mortar Max

Military style with Extended heatsink design for better thermal solution, DDR4 Boost, Core Boost, Turbo M.2, and USB 3.2 Gen2 connector

  • Supports 1st, 2nd, and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
  • Supports DDR4 Memory, up to 4133(OC) MHz
  • Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensure even high-end processors to run at full speed.
  • Lightning Fast Game experience: 1x TURBO M.2, AMD Turbo USB 3.2 GEN2, Store MI technology
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability
  • MULTI-GPU: With PCI-E STEEL ARMOR slot. Supports 2-Way AMD Crossfire
  • Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory, or graphics card.



DIY FRIENDLY

MSI motherboards have been designed with tons of smart features for convenient setup and usage, such as pin-header keep-out zone, friendly SATA & USB location, and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want.

STAY COOL FOR ULTIMATE GAMING PERFORMANCE

Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsinks. We’ve made sure to include enough fan headers with full control to allow you to cool your system any way you want.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end CPUs run at full speed with MSI motherboards.

FULLY CONTROLLABLE FAN HEADERS

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans, giving you full control to set up a cool & silent system. The fan headers are conveniently placed with the most popular CPU coolers in mind.

USER-FRIENDLY DESIGN

MSI motherboards feature tons of convenient and smart designs for DIY users, and countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard and gaming rig without any issue.

MAXIMUM COMPATIBILITY

MAXIMUM COMPATIBILITY Every MSI motherboard are certified by strict mechanic that feature a convenient pin-header keep-out zone, and friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part – memory. Combining with MSI DDR4 Boost technology, we provide maximum compatibility, so you confirm and choose any gaming rig as you want.

RYZEN PROCESSORS SUPPORT

MSI AM4 motherboards perfectly support AMD Ryzen processors. Combining MSI Core Boost, you can release maximum performance no matter what CPU you use.

MSI APP PLAYER

Developed under an exclusive partnership with BlueStacks, the MSI APP Player brings seamless mobile gaming experiences to PCs. Leverage the advantages of mouse and keyboard controls, better graphics, and multi-tasking for mobile gaming supremacy.

PERFORMANCE ENHANCING APPS

Complete your high-performance experience with an array of performance-enhancing software from MSI. From a loaded yet easy-to-use BIOS to potent live system tools, get the most out of your motherboard at any moment.





Brand – MSI, Model – MSI B450M Mortar Max, CPU Sockets – AM4, Chipset – AMD B450 Chipset, Supported CPU – AMD Ryzen 1st/2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors & Athlon with Radeon Vega Graphics, Memory Type – DDR4, Memory MHz – 1866/ 2133/ 2400/ 2667Mhz by JEDEC, AMD Ryzen Gen3 (R5/R7/R9) (2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133MHz) (by A-XMP OC MODE), AMD Other CPU (2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz) (by A-XMP OC MODE), Memory Channel – Dual Channel, Memory Slot – 4, Memory Max. – 64GB, Optane Memory Support – No, Graphic – Onboard Graphics, Multi-GPU Support – 2-Way AMD CrossFire, PCI Express Slot – 1 x PCIe 3.0 x16 slot (PCI_E1), 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode), 2 x PCIe 2.0 x1 slots, Storage Interface – 6Gb/s, M.2 Slot – 1 x M.2 slots (Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices), 1 x M.2 slots (Supports PCIe 3.0 x4 or PCIe 3.0 x2 and SATA 6Gb/s 2242/ 2260 /2280 storage devices), LAN Chipset – Realtek RTL8111H-CG Gigabit LAN, LAN Speed (Mbps) – 10/100/1000Mbps, Audio Chipset – Realtek ALC892, Audio Channel – 7.1-Channel, Wi-Fi – No, Bluetooth – No, USB Port – 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 6 x USB 3.2 Gen 1 Type-A, 6 x USB 2.0, VGA Port – No, DVI Port – No, HDMI Port – 1, DisplayPort (DP) – 1, IDE Port – No, SATA Port – 4 x SATA, DirectX Support – 12, FireWire – No, CrossFire Support – Yes, Sli Support – No, RaidSupport – 0,1,10, Thunderbolt – No, TPM Port – Yes, COM Port – No, RGB Support – Yes, RGB Sync – Mystic light, RGB Connector – 2 x 5050 RGB LED strip 12V connectors, Form Factor – Micro ATX, Supported Operating System – Windows 7/10, Special Features – Military style with Extended heatsink design for better thermal solution, DDR4 Boost, Core Boost, Turbo M.2 and USB 3.2 Gen2 connector, Extended Heatsink Design, MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed, Lightning Fast Game experience, Core Boost With premium layout and fully digital power design to support more cores and provide better performance, DDR4 Boost Advanced technology to deliver pure data signals for the best gaming performance and stability, Flash BIOS Button Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card, Arsenal Sticker Area, Extended Heatsinks Design, Heavy plated gaming heatsinks, PCI-E Steel Armor, Turbo M.2, Audio Boost, Others – 2 x M.2 slots, 1 x Display Port, 1 x 4-pin CPU fan connector, 3 x 4-pin system fan connectors, 1 x TPM module connector, 1 x Front panel audio connector, 2 x System panel connectors, 1 x Chassis Intrusion connector, 1 x Clear CMOS jumper, 1 x Serial Port connector, 1 x Parallel Port connector, Flash BIOS Button, HD Audio Connectors, 8 mounting holes, Warranty – 3 YEAR
