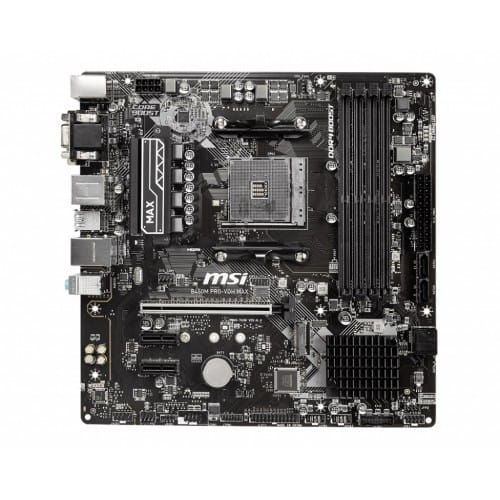

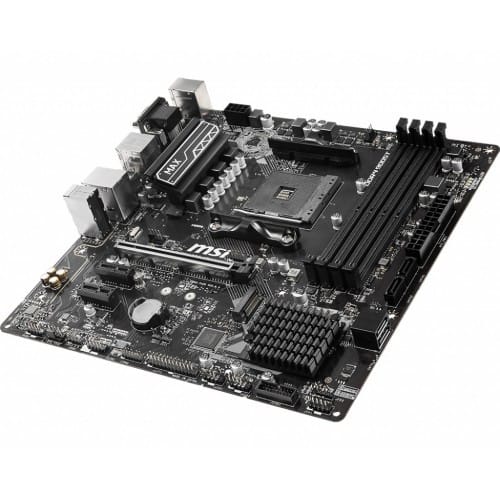

MSI B450M PRO-VDH MAX AMD AM4 Gaming Motherboard
B450M PRO-VDH MAX
01 year warranty
|Supported CPU||Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4|
|Chipset||AMD B450 Chipset|
|Form Factor||9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
m-ATX Form Factor
|PCI||1 x PCIe 3.0 x16 slot
1st, 2nd and 3rd Gen AMD Ryzen support x16 mode
Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support x8 mode
Athlon with Radeon Vega Graphics support x4 mode
2 x PCIe 2.0 x1 slots
|M.2 Socket||1 x M.2 slot (Key M)
Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s
Supports 2242/ 2260 /2280 storage devices
|Type||Dual Channel Architecture|
|Slots||4 x DDR4 memory slots|
|Supported Memory||Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
For AMD Ryzen Gen3 (R5/R7/R9)
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866 MHz (by A-XMP OC MODE)
For AMD Other Processors
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
Supports Dual Channel mode
Supports ECC UDIMM memory (non-ECC mode)
Support non-ECC UDIMM memory
|Graphics||1 x VGA port, supports a maximum resolution of 2048×1280@60Hz, 1920×1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
1 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz
|Max Shared Memory||Maximum shared memory of 2048 MB|

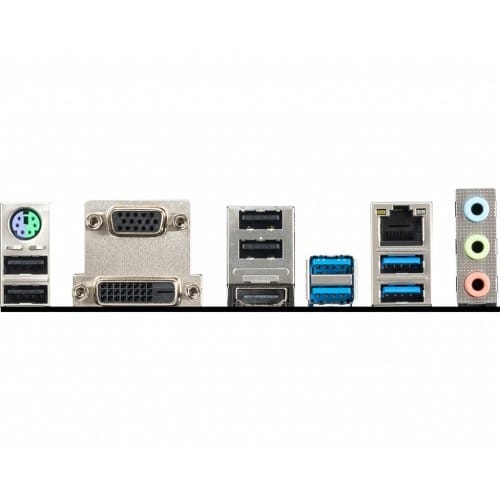

|Connector & Ports|
|HDMI||1 x HDMI 1.4 port (resolution of 4096×2160 @30Hz, 2560×1600 @60Hz)|
|USB (s)||AMD B450 Chipset
2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
|LAN Port (s)||1 x Realtek 8111H Gigabit LAN controller|
|Supported Storage||AMD B450 Chipset
4 x SATA 6Gb/s ports
Supports RAID 0, RAID1 and RAID 10
1 x M.2 slot (Key M)
Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s
Supports 2242/ 2260 /2280 storage devices
|Audio||Realtek ALC892 Codec
7.1-Channel High Definition Audio
|Internal I/O Ports||1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x 4-pin CPU fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Parallel port connector
1 x RGB LED strip connector
1 x Clear CMOS jumper
|DVI-D (s)||Yes1 x DVI-D port (resolution of 1920×1200@60Hz)|
MSI B450M PRO-VDH MAX AMD AM4 Gaming Motherboard
AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1
- Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
- Supports DDR4 Memory, up to 4133 (OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
- Audio Boost: Reward your ears with studio grade sound quality.
- X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.
STAY COOL FOR RELIABLE SYSTEM
Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We’ve made sure to include enough fan headers with full control to allow you to cool your system any way you want.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part – memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility even over clocking, so you confirm and choose any gaming rig as you want.
RYZEN PROCESSOR SUPPORT
MSI X570 motherboards support latest generation RYZEN processors from AMD with updated features and capabilities. Ascend to new heights with a platform built for both creators and gamers.
APPS TO GREATLY IMPROVE EFFICIENCY
With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming. Moreover, we made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance.
MSI motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.
EXHILARATING AND INSPIRING
Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes.
MSI motherboards provide the most fascinating in-studio advantages, designed to satisfy any professional workflow. Elevate your listening pleasure and network connection with MSI Audio & LAN. Enjoy extreme sound quality and uninterrupted online experience.
MSI B450M PRO-VDH MAX AMD AM4 Gaming Motherboard Brand – MSI, Model – MSI B450M-A Pro Max, CPU Sockets – AM4, Chipset – AMD B450 Chipset, Supported CPU – AMD Ryzen 1st/2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors & Athlon with Radeon Vega Graphics & A-series/Athlon X4 Processors, Memory Type – DDR4, Memory MHz – 1866/ 2133/ 2400/ 2667Mhz by JEDEC, AMD Ryzen Gen3 (R5/R7/R9) (2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133MHz) (by A-XMP OC MODE), AMD Other CPU (2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz) (by A-XMP OC MODE), Memory Channel – Dual Channel, Memory Slot – 2, Memory Max. – 32GB, Optane Memory Support – No, Graphic – Onboard Graphics, Multi-GPU Support – No, PCI Express Slot – 1 x PCIe 3.0 x16 slot, PCIe 2.0 x1 slot, Storage Interface – 6Gb/s, M.2 Slot – 1 x M.2 slot (Supports PCIe 3.0 x4 and SATA 6Gb/s / Supports PCIe 3.0 x2 and SATA 6Gb/s / Supports 2242/ 2260/ 2280/ 22110 storage devices), LAN Chipset – Realtek 8111H Gigabit LAN, LAN Speed (Mbps) – 10/100/1000Mbps, Audio Chipset – Realtek ALC892, Audio Channel – 7.1-Channel, Wi-Fi – No, Bluetooth – No, USB Port – 6 x USB3.2 Gen 1, 6 x USB2.0, VGA Port – No, DVI Port – 1, HDMI Port – 1, DisplayPort (DP) – No, IDE Port – No, SATA Port – 4 x SATA, DirectX Support – 12, FireWire – No, CrossFire Support – No, Sli Support – No, RaidSupport – 0,1,10, Thunderbolt – No, TPM Port – Yes, COM Port – No, Form Factor – M-ATX, Supported Operating System – Windows 7 / 10, Special Features – AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1, Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs, Audio Boost, X-Boost, Software that auto-detects and allows to boost the performance of any storage or USB device, Core Boost With premium layout and fully digital power design to support more cores and provide better performance, Others – 1 x M.2 slot, 1x 4-pin CPU fan connector, 1x 4-pin system fan connector, 1x Front panel audio connector, 2x Front panel connectors, 1x TPM module connector, 1x Chassis Intrusion connector, 1x Serial port connector, 1x Clear CMOS jumper, HD Audio Connectors, 6 mounting holes, Warranty – 3 Year
