MSI MAG A520M Vector Wi-Fi AM4 AMD Micro-ATX Motherboard
Brand | MSI |
---|---|
Model | MAG A520M Vector Wi-Fi |
Supported CPU | Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors | |
Chipset | AMD B520 | |
Form Factor | M-ATX Form Factor 9.6 in. x 8.3 in. (24.4 cm x 21 cm) |
|
PCI | 1x PCIe x16 slot (PCI_E2) 2x PCIe 3.0 x1 slots |
|
M.2 Socket | 1x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
|
Memory | ||
Type | Dual-channel memory architecture | |
Slots | 2x DDR4 memory slots | |
Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
|
Maximum Memory | 64GB | |
Graphics | ||
Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz 1x DisplayPort supports a maximum resolution of 4096×2160 @60Hz |
|
Max Shared Memory | 2048 MB | |
Connector & Ports | ||
HDMI | 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz | |
Display Port (s) | 1x DisplayPort supports a maximum resolution of 4096×2160 @60Hz | |
USB (s) | AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
LAN Port (s) | 1x Realtek RTL8111H LAN controller | |
Supported Storage | AMD A520 Chipset: 4x SATA 6Gb/s ports 1x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
|
Audio | Realtek ALC892 Codec 7.1-Channel High-Definition Audio |
|
Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TPM module connector 1x Clear CMOS jumper |
|
Others | ||
Special Features
|
WIRELESS LAN & BLUETOOTH: Intel Dual Band Wireless-AC 3168 -Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. -Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2 |
|
MSI MAG A520M VECTOR WIFI

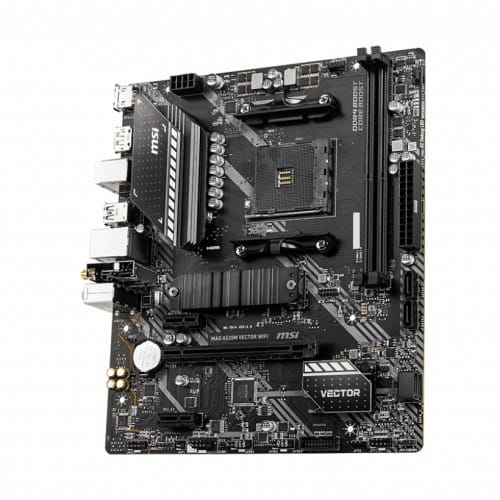

Sink your competition with the MAG A520M VECTOR WIFI AM4 Micro-ATX Motherboard from MSI. Featuring the AMD A520 chipset, this gaming motherboard is compatible with processors using the AM4 socket. Two dual-channel RAM slots support a total memory capacity of 64GB and speed up to 4600 MHz when overclocking. Storage drives can be installed using four SATA III interfaces or an M.2 slot, while a PCIe 3.0 x16 and two PCIe 3.0 x1 slots provide room for various adapter cards.

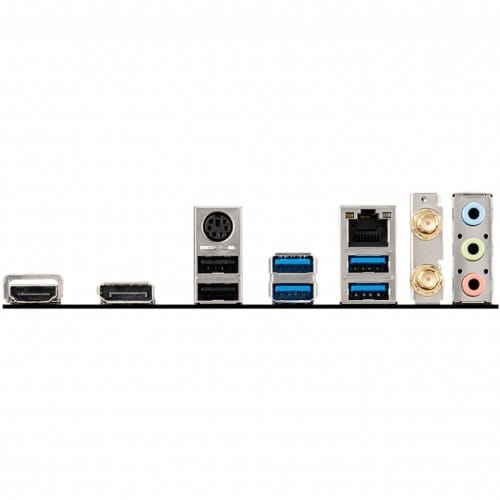

The rear I/O panel features four USB 3.2 Gen 1 and two USB 2.0 Type-A ports. A legacy mouse or keyboard can be connected to the PS/2 port, while displays can be hooked up using the DisplayPort or HDMI outputs. An RJ45 port is also present, supporting Gigabit Ethernet. Two Wi-Fi antenna connectors facilitate Wi-Fi 5 connectivity, while the preinstalled wireless controller further facilitates Bluetooth 4.2. The rear panel also sports three 3.5mm audio jacks. Relying on Realtek audio codecs, this motherboard supports 7.1 Surround Sound. The MAG A520M VECTOR WIFI AM4 Micro-ATX Motherboard is compatible with Windows 10 operating systems.
AMD A520 Chipset
The AMD A520 chipset supports 3rd Gen Ryzen processors using the AM4 socket.
Extended Heatsink
Keep high-end CPUs running at full speed, thanks to the extended PWM heatsink and optimized circuit design.
M.2 Shield FROZR
Part of the motherboard’s heatsink design, the M.2 Shield FROZR ensures smooth SSD performance when temperatures rise.
Fan Control via BIOS and Software
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to four temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
Automatic Fan Detection
MSI fan headers can automatically detect if a fan needs to run in DC or PWM mode, streamlining the fan tuning experience.
4+2+1 Duet Rail Power System
Combining VRM design with Core Boost, this motherboard is designed to tackle heavy gaming loads.
Core Boost
Core Boost technology allows for precise and undistorted current delivery to the CPU. In addition to multi-core CPU support, Core Boost also benefits CPU overclocking.
Game Boost
Enable one-second overclocking with Game Boost, delivering more FPS for smoother gameplay.
Load-Line Calibration
Load-line calibration ensures your CPU voltage remains stable under any load, even with demanding, CPU-heavy performance.
Overvoltage Protection
Overvoltage protection prevents potential short-circuit damage to the CPU and other critical components.
Keep-Out Zone
Motherboard circuitry ensures case standoff keep-out zones are clear, preventing any contact between components and damage to the motherboard.
EZ Debug LED
Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.
2oz Copper PCB
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability during overclocking.
Double ESD Protection
Double ESD protection provides an optimized grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
Dragon Center
The Dragon Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboard features for color calibration, live updates, user scenarios, hardware monitoring, fan control, RGB lighting, and product registration.
MSI App Player
Developed under an exclusive partnership with BlueStacks, the MSI App Player is intended to provide a seamless gaming experience between mobile games and the PC platform, utilizing customized features as specific keyboard lighting and better graphics when multitasking.
Isolated Audio Design
Like a dedicated sound card, audio components and circuits are located on a reserved motherboard section and electrically isolated.
Separate Audio Layers
Using separated layers in the PCB, this motherboard ensures accurate sound quality for both left and right audio channels.
USB 3.2 Gen 1
Synonymous with USB 3.1 Gen 1, USB 3.2 Gen 1 features a maximum throughput of 5 Gb/s when used with compatible devices.
Brand – MSI, Model – MSI MAG A520M VECTOR WIFI, CPU Sockets – AM4, Chipset – AMD A520, Supported CPU – AMD Ryzen 3rd Generation Processors and AMD Ryzen 4000 G-Series processors, Memory Type – DDR4, Memory MHz – 4600/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866MHz, Memory Channel – Dual Channel, Memory Slot – 2, Memory Max. – 64GB, Optane Memory Support – No, Graphic – Integrated Graphics, Multi-GPU Support – No, PCI Express Slot – 1x PCIe x16 slot, 2x PCIe 3.0 x1 slots, Storage Interface – 6Gb/s, M.2 Slot – 1 x M.2 (Supports PCIe 3.0 x4, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices), LAN Chipset – Realtek RTL8111H, LAN Speed (Mbps) – 10/100/1000, Audio Chipset – Realtek ALC892, Audio Channel – 7.1-Channel, Wi-Fi – Yes, Wi-Fi Technology – Intel Dual Band Wireless-AC 3168, Supports Wi-Fi 802.11 a/b/g/n/ac, dual-band (2.4GHz, 5GHz) up to 433 Mbps speed., Bluetooth – Bluetooth 4.2, USB Port – 5 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0, VGA Port – No, DVI Port – No, HDMI Port – 1, DisplayPort (DP) – 1, SATA Port – 4 x SATA, DirectX Support – 12, FireWire – No, CrossFire Support – No, Sli Support – No, RaidSupport – 0,1,10, Thunderbolt – No, TPM Port – No, COM Port – No, RGB Support – Yes, RGB Sync – Mystic light, RGB Connector – 1 x 4-pin RGB LED connector, Form Factor – mATX, Supported Operating System – Windows 10, Special Features – Extended Heatsink Design, MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed, M.2 SHIELD FROZR, Onboard M.2 thermal solution to keep M.2 SSDs safe while preventing throttling, making them run cooler & faster, Turbo M.2, Delivering Speeds Up to 32Gb/s, 2oz Thickened Copper PCB, An enhanced PCB design improves heat dissipation and performance reliability, EZ Debug LED, Easiest way to troubleshoot, Core Boost, With premium layout and fully digital power design to support more cores and provide better performance, DDR4 Boost, Advanced technology to deliver pure data signals for the best gaming performance and stability, Audio Boost, Others – 1 x DisplayPort, 1x Serial port connector, 1x 4-pin CPU fan connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x 3-pin RAINBOW LED connector, 1x TPM module connector, 1x Clear CMOS jumper, Wi-Fi Antenna connectors, 6 mounting holes, WIRELESS LAN & BLUETOOTH: Intel Dual Band Wireless-AC 3168, Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2, Warranty – 3 Year
