Specification
| Basic Information | |
| Brand | Solitine |
| Model | SOL-2324A |
| Product Name | Solitine SOL-2324A 3600mAh DC Router Mini UPS |
| Product Type | Smart Mini DC UPS |
| UPS Type | Lithium Battery Backup UPS |
| Color | White |
| Battery Specifications | |
| Battery Type | 18650 Lithium-ion |
| Battery Capacity | 3600mAh |
| Battery Quantity | Integrated / Non-removable |
| Battery Voltage | 3.7V Nominal |
| Power Specifications | |
| Maximum Output Power | 24W |
| Input Voltage | 110V–240V AC |
| Input Frequency | 50/60Hz |
| Input Current | 0.5A |
| DC Output Voltage | 12V |
| DC Output Current | 2A |
| DC Output | 12V/2A |
| Waveform | Pure DC Output |
| Transfer Time | 0ms – Seamless Switching |
| Type-C Output | USB PD |
| Type-C PD Output | 5V/3A, 9V/2A, 12V/1.67A |
| Backup Performance | |
| Backup Time | Up to 5 Hours with 1 ONU + 1 Router |
| Backup Time with CCTV | Approximately 3–3.5 Hours with 1 Router + 1 ONU + 1 Camera |
| Supported Devices | Wi-Fi Router, ONU, ONT, Modem, CCTV Camera, Mobile Phone & Low-Power DC Devices |
| Interface & Features | |
| DC Output Port | 1 × DC 12V/2A |
| USB Port | 1 × Type-C USB PD |
| LED Indicator | Yes |
| Power Button | Yes |
| Auto Restart | Yes |
| Cold Start | Yes |
| Smart Charging | Yes |
| Cooling System | Air Cooling |
| Protection | |
| Overload Protection | Yes |
| Short-Circuit Protection | Yes |
| Overcharge Protection | Yes |
| Over-Discharge Protection | Yes |
| Surge Protection | Yes |
| Overheat Protection | Yes |
| Physical Information | |
| Dimensions | 178 × 158 × 38 mm |
| Material | ABS Plastic |
| Application | Home, Office & Travel |
| Warranty Information | |
| Warranty | 1 Year Manufacturer Warranty |
Product Descriptions

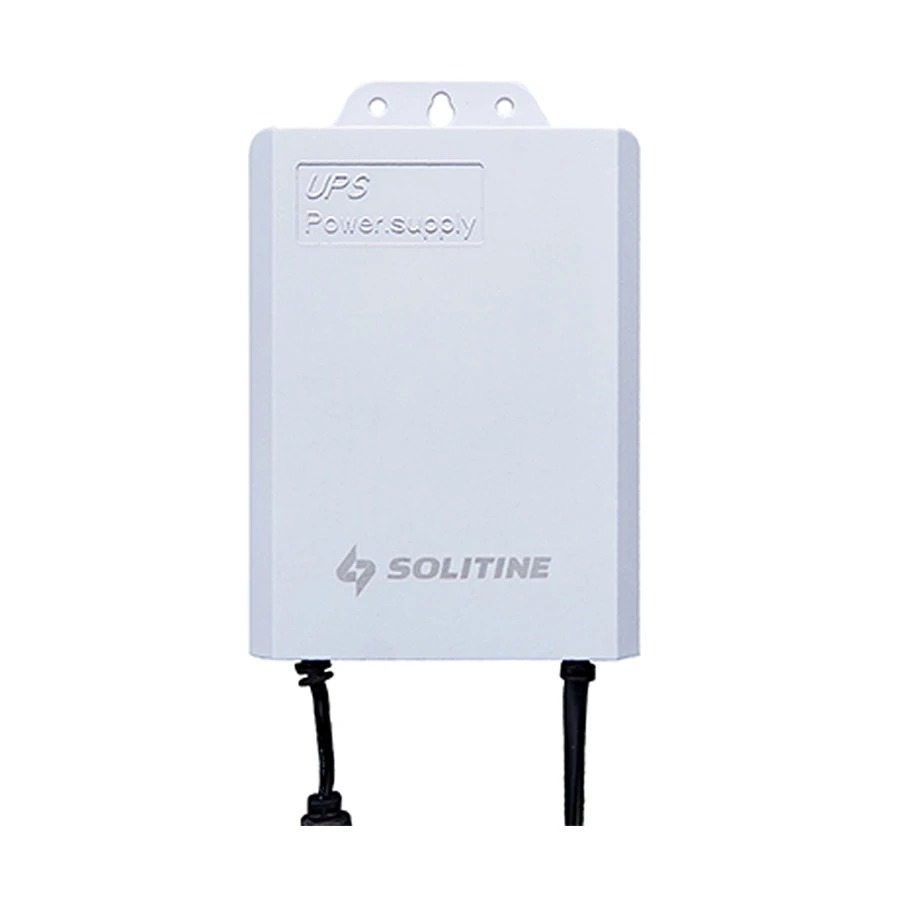

Solitine SOL-2324A 3600mAh DC Router Mini UPS
Solitine SOL-2324A 3600mAh DC Router Mini UPS is a compact and reliable backup power solution designed to keep essential networking and low-power DC devices running during power outages. Equipped with a 3600mAh 18650 Lithium-ion battery, this Mini UPS provides stable DC 12V/2A output with a maximum output power of up to 24W.
3600mAh Lithium-Ion Battery
The SOL-2324A uses an integrated 3600mAh 18650 Li-ion battery for dependable backup power. When powering one ONU and one router, it can provide up to 5 hours of backup, depending on the actual power consumption of the connected devices.
Stable 12V/2A DC Output
With a 12V/2A DC output and up to 24W maximum output power, the SOL-2324A is suitable for compatible Wi-Fi routers, ONUs, ONTs, modems, CCTV cameras and other low-power DC electronics.
Type-C USB PD Support
The Mini UPS also includes a Type-C USB PD output supporting 5V/3A, 9V/2A and 12V/1.67A, making it useful for emergency charging of compatible mobile devices and other USB-C equipment.
Long Backup for Router & ONU
When connected to 1 ONU + 1 router, the stated backup time is up to 5 hours. With 1 router + 1 ONU + 1 CCTV camera, the backup time is approximately 3–3.5 hours, depending on the connected load.
Safety Protection
The SOL-2324A features built-in overload, short-circuit, overcharge, over-discharge and surge protection for safer everyday operation. LED indicators help users monitor the battery and operating status.
Compact Design
With dimensions of approximately 178 × 158 × 38 mm, the Solitine SOL-2324A has a compact design suitable for home, office and travel use. Its air-cooling system helps with heat dissipation during operation.
Why Choose Solitine SOL-2324A?
The Solitine SOL-2324A 3600mAh DC Router Mini UPS is an excellent choice for keeping your internet connection active during load shedding and unexpected power interruptions. Its 3600mAh battery, 12V/2A DC output, Type-C PD support, multiple protection systems and compact design make it suitable for routers, ONU/ONT devices, CCTV cameras and other compatible low-power electronics.
Warranty
1 Year Manufacturer Warranty
