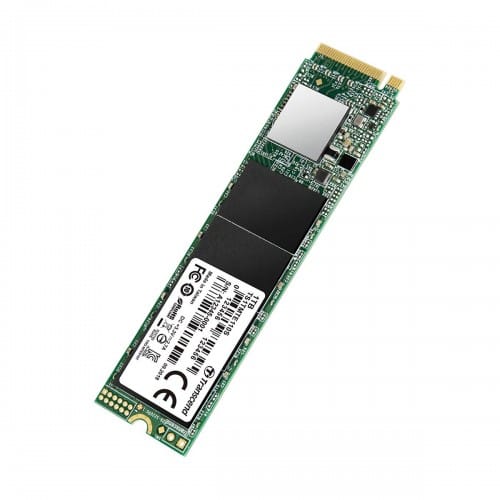

Transcend 1TB 110S NVMe M.2 2280 PCIe Gen3x4 Internal SSD
05 years warranty
|Flash Type||3D NAND flash|
|M.2 Type||2280-D2-M (Double-sided)|
|Bus Interface||NVMe PCIe Gen3 x4|
|Form Factor||M.2 2280|
|Read Speed (Max.)||1,700 MB/s|
|Write Speed (Max.)||1,400 MB/s|
|4K Random Read/Write||up to 160,000/140,000 IOPS|
|Terabytes Written (TBW)||400 TBW|
|Mean Time Between Failures (MTBF)||2,000,000 hour(s)|
|Drive Writes Per Day (DWPD)||0.2 (5 yrs)|
|Note||Speed may vary due to host hardware, software, usage, and storage capacity.|
|Technology||S.M.A.R.T., Advanced Garbage Collection, LDPC Coding|
|Operating Temperature||0°C (32°F) ~ 70°C (158°F)|
|Operating System||Microsoft Windows 7 (additional driver required), Microsoft Windows 8 (additional driver required), Microsoft Windows 10, Linux Kernel 2.6.31 or later|
Transcend 110S 1TB NVMe M.2 2280 PCle SSD
Transcend’s PCIe SSD 110S utilizes the PCI Express Gen3 x4 interface supported by the latest NVMe standard, to unleash next-generation performance. The PCIe SSD 110S aims at high-end applications, such as digital audio/video production, gaming, and enterprise use, which require constant processing heavy workloads with no system lags or slowdowns of any kind. Powered by 3D NAND flash memory, the PCIe SSD 110S gives you not only fast transfer speeds but unmatched reliability.
Compelling performance for high-end applications Transcend’s PCIe SSD 110S follows NVMe 1.3 and utilizes the PCIe Gen3 x4 interface, meaning four lanes are used for transmitting and receiving data simultaneously, resulting in compelling performance of up to 1,700MB/s read and 1,500MB/s write.
Understanding the NVMe standard NVMe (or NVM Express) is a host controller interface standard designed to address the needs of enterprise and client applications that utilize PCI Express-based solid-state storage. NVMe calls for better performance vectors than AHCI (Advanced Host Controller Interface), including scalable bandwidth, increased IOPS, and low latency.
3D expansion to break through limits Unlike the existing planar NAND chips, 3D NAND flash is a type of flash memory in which the memory cells are stacked vertically in multiple layers. 3D NAND is developed to break through density limitations of the 2D planar NAND, and thus can deliver a greater level of performance and endurance.
Better endurance, higher reliability Transcend’s PCIe SSD 110S is engineered with LDPC (Low-Density Parity Check) coding, a powerful ECC algorithm, to keep data secure. Manufactured with high-quality NAND flash chips, and engineered dynamic thermal throttling mechanism, the PCIe SSD 110S guarantees superior endurance and stability for high-end applications.
