ZOTAC GeForce GT 1030

ZOTAC GeForce® GT 1030 2GB GDDR5 HDMI/DVI Low Profile

Step Up To Brilliant PC Graphics

The new ZOTAC GeForce® GT 1030, powered by the award-winning NVIDIA Pascal™ architecture, accelerates your entire PC experience. Its powerful graphics engine and state-of-the-art technologies provide a performance upgrade to drive today’s most demanding PC applications.

Based on NVIDIA’s Pascal architecture, the ZOTAC GeForce GT 1030 Graphics Card provides major improvements in performance, memory bandwidth, and power efficiency over its predecessor, the high-performance Maxwell architecture. It also introduces innovative graphics features and technologies that redefine the computer as the platform for playing AAA games and taking full advantage of virtual reality via NVIDIA VRWorks.

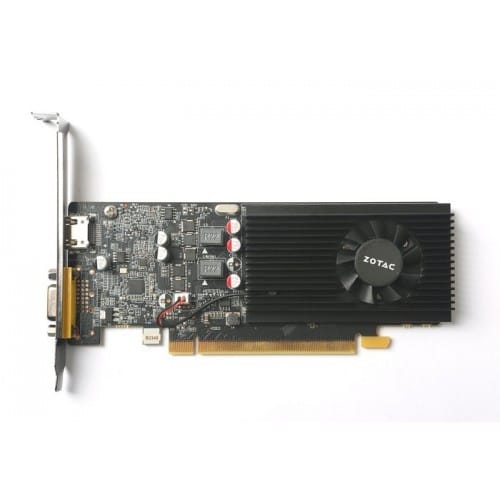

The front panel of the card features a variety of outputs. There is an HDMI 2.0b output and a DVI-D Single-Link output. The GT 1030 is not just about high-resolution gaming. Computationally intensive programs can utilize the GPU’s 384 cores to accelerate tasks using CUDA or other APIs.

For cooling, ZOTAC implemented a single fan cooler that is combined with a heatsink.

CUDA

With CUDA, NVIDIA allows applications to hand off CPU-intensive tasks to the GPU. Your GPU is no longer just used for rendering graphics, but it can provide teraflops of floating point performance and accelerate application tasks, from real-time video rendering to fluid dynamics simulation. CUDA is used in many applications and games.

NVIDIA GPU Boost 3.0

Boosts the card’s clock speed in real-time based on the target temperature. If the card is running below the set target temperature, GPU Boost 3.0 will increase the clock speed to improve performance. The target temperature can be reset depending on your preference so you can have the card run more quietly for everyday tasks and older games, and run at full tilt during intense high-resolution gaming sequences.

Chipset Vendor – NVIDIA GeForce, Chipset Model – GT 1030, Model – ZOTAC GeForce GT 1030, CUDA Core / Stream Processors – 384 (CUDA), Engine Clock – Base-1227MHz / Boost-1468MHz, Memory Clock – 6.0 GHz, Memory Size – 2GB, Memory Bus – 64-bit, Memory Type – GDDR5, Interface – PCI Express 3.0, DirectX – 12, OpenGL – 4.5, DVI Port – 1, HDMI Port – 1, Power Consumption – 30W, Recommended PSU – 300W, Multi Display Capability – Dual Display, HDCP Support – Yes, Cooling Fan – Single, Supported OS – Windows 7, 8, 10, Others – 3-Year extended warranty may avail upon proper registration with zotac, Part No – ZT-P10300A-10L, Warranty – 2 YearA
