Specification
| Basic Information | |
| Brand | A4TECH |
| Series | Bloody |
| Model | DM-8 |
| Product Type | Adjustable Single Monitor Arm |
| Mount Type | Desktop / Desk Mount |
| Number of Monitors | 1 |
| Monitor Compatibility | 17" – 39" |
| Supported Load | 2kg – 9kg |
| Maximum Load Capacity | 9kg |
| Mounting | |
| VESA Compatibility | 75 × 75mm / 100 × 100mm |
| VESA Standard | VESA 75×75 / 100×100 |
| Installation Type | Desk Mount |
| Adjustment & Movement | |
| Adjustment Type | Gas Spring Adjustable |
| Height Adjustment | 130 – 415mm |
| Max Arm Extension | 526mm |
| Tilt Range | +90° Up / -25° Down |
| Swivel Range | ±180° |
| Rotation | 360° |
| Center Axis | 360° |
| Base Axis | 180° – 360° |
| Adjustment System | 5-Axis Flexibility |
| Performance & Design | |
| Gas Spring | Yes |
| Zero-Gravity Torsion System | Yes |
| Cable Management | Yes |
| Construction | Strong Metal Construction |
| Desk Space Saving | Yes |
| Installation | |
| Installation | Easy & Quick Installation |
| Mounting Design | Desk Clamp / Desktop Mount |
| Durability | |
| Motion Cycle Testing | 200,000+ Motion Cycles |
| Gas Spring Cycle Testing | 20,000+ Cycles |
| Physical Information | |
| Color | Sports Black / Sports Red |
| Product Weight | Approx. 2.5kg |
| Compatibility | |
| Monitor Size | 17" – 39" |
| Monitor Weight | Up to 9kg |
| VESA 75×75mm | Supported |
| VESA 100×100mm | Supported |
| Warranty Information | |
| Warranty | 1 Year Warranty |
Product Descriptions

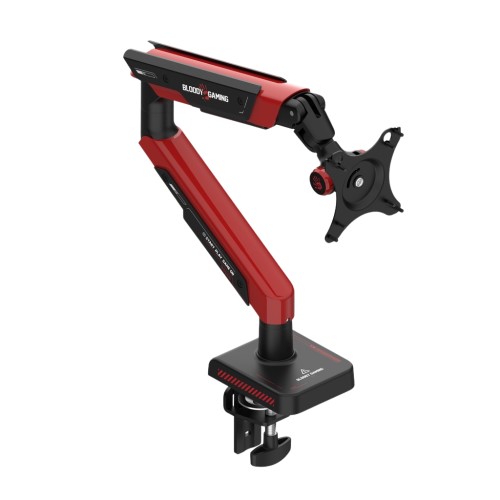

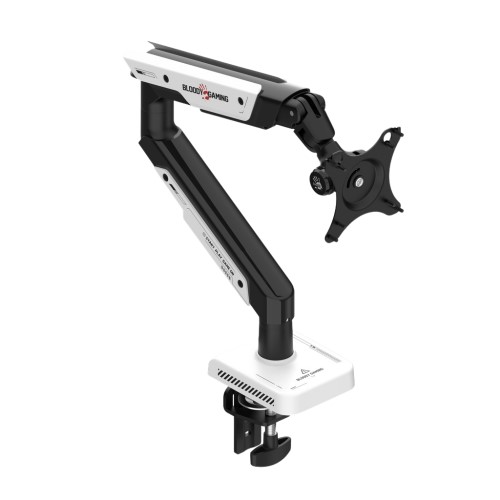

A4TECH Bloody DM-8 Adjustable Single Monitor Arm
The A4TECH Bloody DM-8 Adjustable Single Monitor Arm is designed to provide a cleaner, more flexible and ergonomic desktop setup. Supporting monitors from 17 inches up to 39 inches and loads from approximately 2kg to 9kg, the DM-8 is suitable for a wide range of standard and larger displays.
Supports 17" to 39" Monitors
The Bloody DM-8 supports a wide range of display sizes from 17-inch to 39-inch, making it suitable for standard monitors as well as larger gaming and productivity displays. Its maximum supported load is 9kg.
VESA 75×75mm & 100×100mm Compatibility
The monitor arm supports the two common VESA mounting standards: 75×75mm and 100×100mm. This allows compatibility with a broad range of monitors that include standard VESA mounting holes.
Gas Spring & Zero-Gravity Torsion System
The DM-8 uses a gas-spring mechanism with a Zero-Gravity Torsion System to provide balanced monitor support and smooth positioning. The arm is designed to make monitor adjustment easier while maintaining stable positioning.
5-Axis Flexible Adjustment
The Bloody DM-8 provides multi-directional adjustment for a more comfortable viewing position. You can adjust the monitor's height, tilt, swivel, rotation and extension according to your workspace requirements.
Wide Tilt & Swivel Range
The monitor arm provides a +90° upward to -25° downward tilt range and ±180° swivel range. It also supports 360° rotation, allowing flexible monitor positioning for different working and gaming orientations.
Height & Arm Extension
The DM-8 offers a height range of approximately 130–415mm and a maximum arm extension of approximately 526mm, giving users greater freedom to position their monitor.
Cable Management
The monitor arm includes built-in cable management, helping keep display and power cables organized and reducing cable clutter around the desk.
Durable Desktop Mount
The DM-8 is designed as a desktop monitor mount with a strong construction suitable for gaming, office and professional environments. Its adjustable design helps free up valuable desk space and create a cleaner workstation
