Specification
| Basic Information | |
| Brand | MikroTik |
| Model | RB3011UiAS-RM |
| Product Type | Rackmount Router |
| Operating System | RouterOS |
| License Level | Level 5 |
| CPU Architecture | ARM 32-bit |
| Processor & Memory | |
| CPU | Dual-Core ARM Cortex-A15 |
| CPU Frequency | 1.4 GHz |
| CPU Cores | 2 |
| RAM | 1 GB DDR3 |
| Storage | 128 MB NAND |
| Network Interface | |
| Gigabit Ethernet Ports | 10 × 10/100/1000 Mbps |
| SFP Port | 1 × Gigabit SFP |
| USB Port | 1 × USB 3.0 Type-A |
| Serial Port | Yes |
| PoE Features | |
| PoE Input | Passive PoE (Port 1) |
| PoE Output | Passive PoE-Out on Port 10 |
| Supported Input Voltage | 10-30V DC |
| Performance | |
| Maximum Ethernet Throughput | Up to 10 Gbps (Switching Capacity) |
| Hardware IPsec | Yes |
| Hardware Encryption | Yes |
| Display | |
| LCD | Touchscreen LCD Display |
| Physical Specification | |
| Form Factor | 1U Rackmount |
| Dimensions | 443 × 92 × 44 mm |
| Cooling | Passive Cooling |
| Color | Black |
| Power | |
| Power Input | DC Jack & Passive PoE |
| Max Power Consumption | 30W |
| Package Contents | |
| Included Accessories | Rackmount Ears, Power Adapter |
| Warranty Information | |
| Warranty | 01 Year Manufacturing Warranty |
Product Descriptions

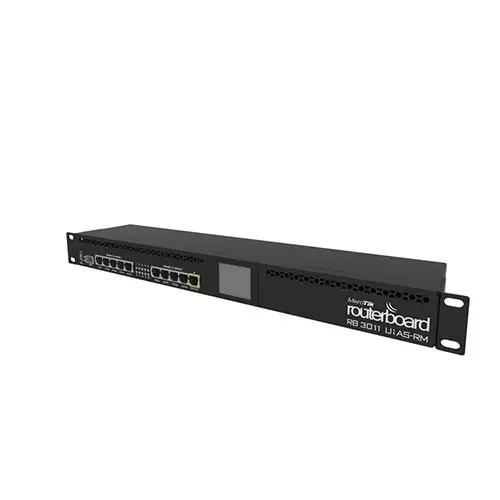

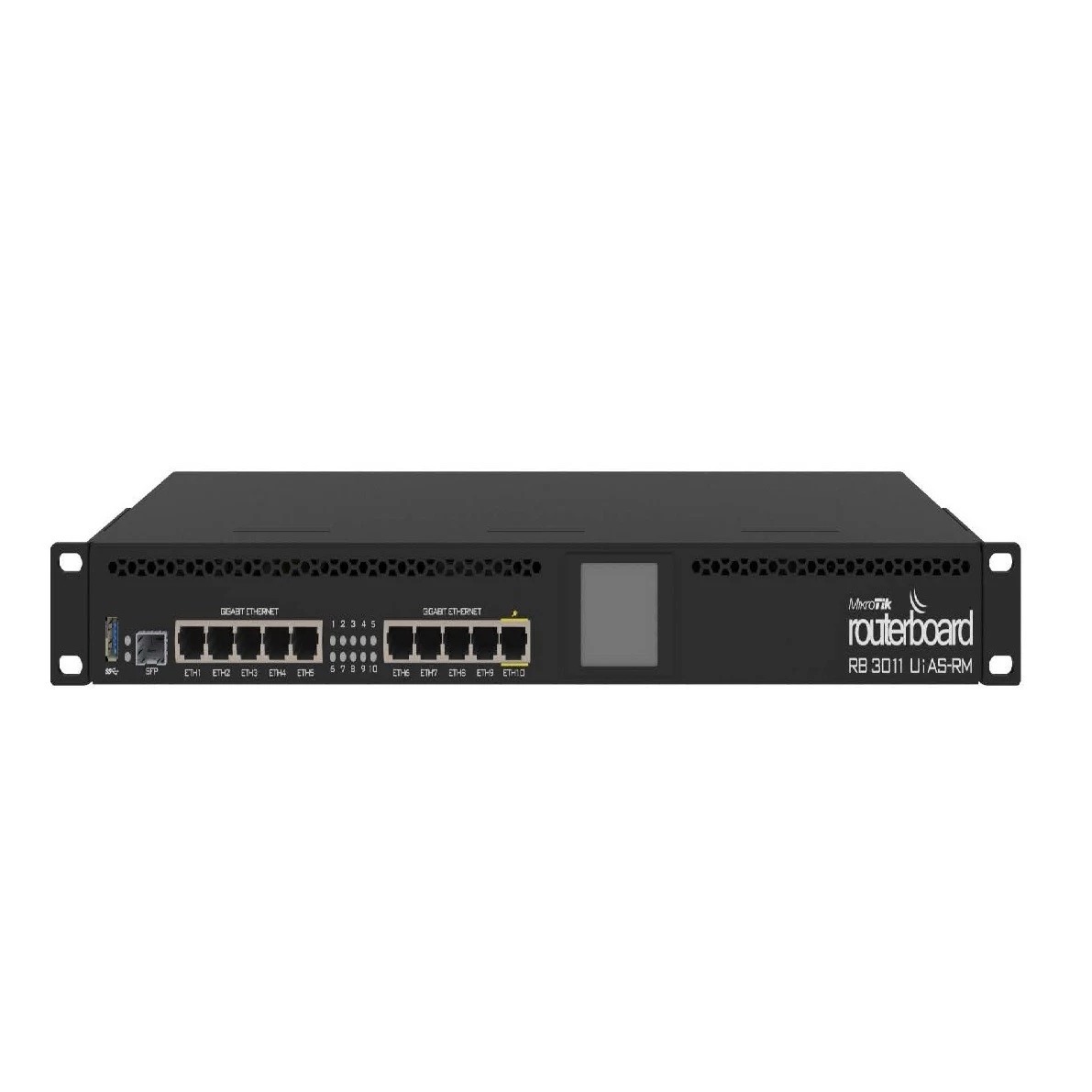

Mikrotik RB3011UiAS-RM 1U Rackmount 10x Gigabit Ethernet Router
The MikroTik RB3011UiAS-RM 1U Rackmount 10x Gigabit Ethernet Router is a powerful networking solution designed for businesses, ISPs, enterprise environments, and advanced home networks. Powered by a 1.4GHz dual-core ARM Cortex-A15 processor and 1GB DDR3 RAM, it delivers outstanding routing performance, making it suitable for bandwidth-intensive applications, VPN services, firewall management, and multi-user networks.
The router features 10 Gigabit Ethernet ports, divided into two independent five-port switch groups for improved traffic management, along with a Gigabit SFP port for fiber connectivity and a USB 3.0 port for external storage or 4G/LTE modem support. It also includes a touchscreen LCD display that allows administrators to monitor system status, IP configuration, interface activity, and other important information directly from the device.
Running MikroTik RouterOS with a Level 5 license, the RB3011UiAS-RM supports advanced networking features such as dynamic routing, VLANs, VPN, firewall, QoS, bandwidth management, hotspot services, MPLS, and hardware-accelerated IPsec encryption. The router supports Passive PoE input on Port 1 and Passive PoE output on Port 10, offering flexible deployment options.
Designed in a 1U rackmount chassis, the MikroTik RB3011UiAS-RM is ideal for server rooms, network cabinets, and professional IT environments. Its reliable hardware, enterprise-grade features, and versatile connectivity make it an excellent choice for organizations seeking a robust and scalable networking solution. The router comes with a 1-year manufacturing warranty.
