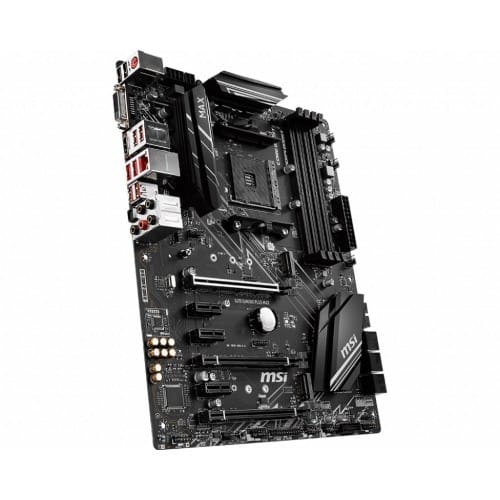

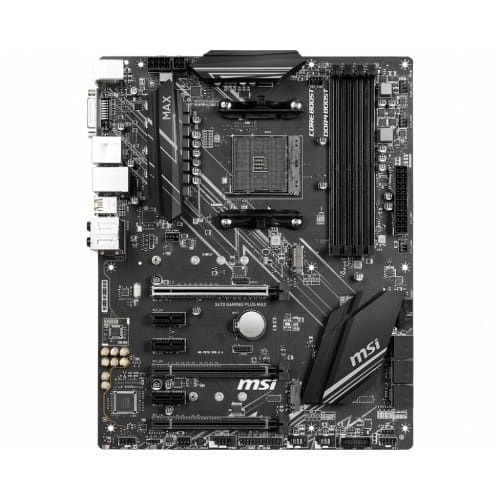

MSI X470 Gaming Plus Max RGB AMD Motherboard
Brand | MSI |
---|---|
Model | X470 Gaming Plus Max |
Color | Black |
Warranty | 03 years warranty |
Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 | |
Chipset | AMD X470 Chipset | |
Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
|
PCI | 2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_4) 1st, 2nd and 3rd Gen AMD Ryzen™ Processors support x16/x0, x8/x8 mode Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors support x8/ x0 mode Athlon™ with Radeon™ Vega Graphics Processors support x4/x0 mode 1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode) 3 x PCIe 2.0 x1 slots |
|
M.2 Socket | 2 x M.2 slot (Key M) M2_1 slot (from AMD processor) supports PCIe 3.0×4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors) or PCIe 3.0×2 (Athlon with Radeon Vega Graphics Processors) 2242/ 2260 /2280/ 22110 storage devices M2_2 slot (from AMD X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices |
|
Memory | ||
Type | Dual channel memory architecture Supports non-ECC UDIMM memoryy Supports ECC UDIMM memory |
|
Slots | 4 x DDR4 memory slots | |
Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667 Mhz by JEDEC For AMD Ryzen Gen3 (R5/R7/R9) Supports2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 Mhz by A-XMP OC MODE For AMD Other CPU Supports2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 Mhz by A-XMP OC MODE |
|
Maximum Mamory | supports up to 64GB | |
Graphics | ||
Graphics | 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1 1 x HDMI port 1.4, supports a maximum resolution of 4096×2160@30Hz1 Only support when using Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors 1st, 2nd and 3rd Gen AMD Ryzen Processors Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors |
|
Max Shared Memory | Maximum shared memory of 2048 MB | |
Connector & Ports | ||
HDMI | 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz | |
USB (s) | ASMedia ASM1143 Chipset 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel AMD X470 Chipset 4 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB connectors 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) AMD CPU 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
|
LAN Port (s) | 1 x Realtek 8111H Gigabit LAN controller | |
Supported Storage | AMD X470 Chipset 6 x SATA 6Gb/s ports 2 x M.2 slot (Key M)1 M2_1 slot (from AMD processor) supports PCIe 3.0×4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors) or PCIe 3.0×2 (Athlon with Radeon Vega Graphics Processors) 2242/ 2260 /2280/ 22110 storage devices M2_2 slot (from AMD X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices |
|
Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|

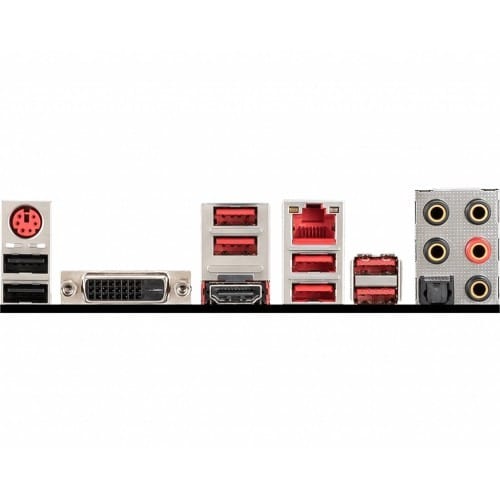

Internal I/O Ports | PS/2 Combo Port USB 3.2 Gen1 LAN Port HD Audio Connectors USB 2.0 Ports DVI-D Port HDMI Port USB 3.2 Gen1 USB 3.2 Gen2 Optical S/PDIF OUT |
|
DVI-D (s) | 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz | |
MSI X470 Gaming Plus Max
Satisfying gamers with what they really need, X470 GAMING PLUS MAX is equipped with Core Boost, Turbo M.2, Audio Boost, USB 3.2 Gen2
- Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
- Supports DDR4 Memory, up to 4133(OC) MHz
- Lightning Fast Game experience: TURBO M.2, AMD StoreMI Technology, AMD Turbo USB 3.2 Gen2
- Core Boost: With premium layout and optimized power design to support more cores and provide better performance.
- Mystic Light and Mystic Light Sync: 7 colors / 7 effects in one click. Synchronize other RGB solutions for customization.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
- MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 3-Way AMD Crossfire
DIY FRIENDLY
MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep-out zone, friendly SATA & USB location, and so on, so DIY users can pick and choose any gaming rig they want.
STAY COOL FOR ULTIMATE GAMING PERFORMANCE
Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with a solid and heavy heatsink. We’ve made sure to include enough fan headers with full control to allow you to cool your system any way you want.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end Ryzen CPU to run at full speed with MSI motherboards.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
ENHANCED PERFORMANCE
MSI motherboards feature all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.
IN-GAME ADVANTAGE
MSI motherboards are built with enhanced audio and advanced LAN networking capabilities that turn any gaming experience into an immerse one.
SOUND THAT PULLS YOU INTO THE GAME
Deliver the highest sound quality through the use of premium quality audio components and get the most immersive sound experience when gaming. MSI motherboards let you enjoy the breathtaking, gaming-changing sound.
EXHILARATING AND INSPIRING
Each MSI motherboard is built based on a specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance look ripped and powerful. Combined with neutral colors, such as black, grey, and silver, as the main background, MSI motherboard can perfectly fit different RGB LED effects and strongly shows the gamers tunes.
ISOLATED AUDIO DESIGN
Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated.
SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS
Audio circuits laid on separate layers in the PCB ensure equally pristine sounding audio for both left and right audio channels.
MSI X470 Gaming Plus Max RGB AMD Motherboard Brand – MSI, Model – MSI X470 Gaming Plus Max, CPU Sockets – AM4, Chipset – AMD X470 Chipset, Supported CPU – AMD Ryzen 1st/2nd/3rd Generation/ Ryzen with Radeon Vega Graphics Processors & Athlon with Radeon Vega Graphics, Memory Type – DDR4, Memory MHz – 1866/ 2133/ 2400/ 2667Mhz by JEDEC, AMD Ryzen Gen3 (R5/R7/R9) (2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133MHz) (by A-XMP OC MODE), AMD Other CPU (2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz) (by A-XMP OC MODE), Memory Channel – Dual Channel, Memory Slot – 4, Memory Max. – 64GB, Optane Memory Support – No, Graphic – Onboard Graphics, Multi-GPU Support – 3-Way AMD Crossfire, PCI Express Slot – 2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_4), 1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode), 3 x PCIe 2.0 x1 slots, Storage Interface – 6Gb/s, M.2 Slot – 2 x M.2 slot (supports PCIe 3.0×4 or PCIe 3.0×2, 2242/ 2260 /2280/ 22110 storage devices, supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices), LAN Chipset – Realtek 8111H Gigabit LAN, LAN Speed (Mbps) – 10/100/1000Mbps, Audio Chipset – Realtek ALC892, Audio Channel – 7.1-Channel, Wi-Fi – No, Bluetooth – No, USB Port – 6 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A, 6 x USB 2.0, VGA Port – No, DVI Port – 1, HDMI Port – 1, DisplayPort (DP) – No, IDE Port – No, SATA Port – 6 x SATA, DirectX Support – 12, FireWire – No, CrossFire Support – Yes, Sli Support – No, RaidSupport – 0, 1, 10, Thunderbolt – No, TPM Port – Yes, COM Port – No, RGB Support – Yes, RGB Sync – Mystic Light, RGB Connector – 2 x 5050 RGB LED strip 12V connectors, Form Factor – ATX, Supported Operating System – Windows 10, Special Features – Satisfying gamers with what they really need, X470 GAMING PLUS MAX is equipped with Core boost, Turbo M.2, Audio Boost, USB 3.2 Gen2, Lightning Fast Game experience, TURBO M.2, AMD StoreMI Technology, AMD Turbo USB 3.2 Gen2, Core Boost With premium layout and optimized power design to support more cores and provide better performance, Mystic Light and Mystic Light Sync, 7 colors / 7 effects in one click, Synchronize other RGB solutions for customization, Audio Boost, MULTI-GPU With STEEL ARMOR PCI-E slots, Supports 3-Way AMD Crossfire, Others – 2 x M.2 slot, 1 x 4-pin CPU fan connector, 1 x 4-pin PUMP fan connector (supports up to 2A), 4 x 4-pin system fan connectors, 1 x Serial port connector, 1 x Parallel port connector, 1 x TPM module connector, 1 x Front panel audio connector, 2 x System panel connectors, 1 x Chassis Intrusion connector, 1 x Clear CMOS jumper, 1 x Clear CMOS button, HD Audio Connectors, 9 mounting holes, Warranty – 3 year
