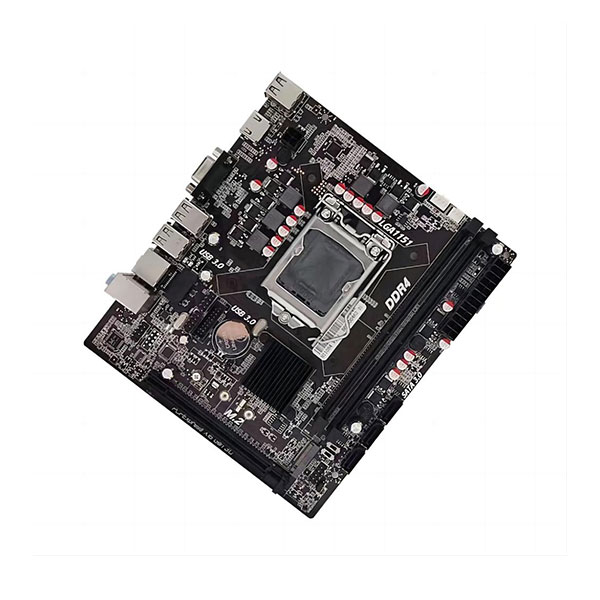

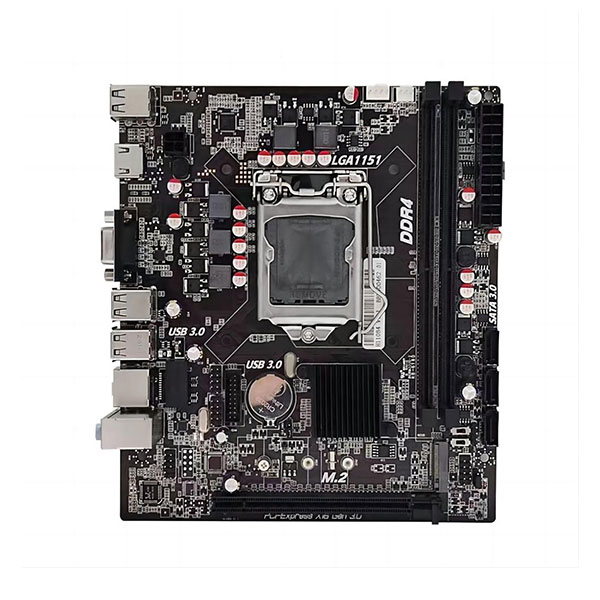

ARKTEK AK-H110M EG 6th/7th/8th/9th Gen Micro-ATX Motherboard
Short Description
- Model: AK-H110M EG
- Supported CPU: Intel 6th/7th/8th/9th Gen Core i7/ i5/ i3/Pentium/Celeron (LGA1151)
- Supported RAM: 2x DIMM, DDR4 2133 MHz Max. 16GB
- Graphics Output: 1 x VGA, 1 x HDMI
- Features: Realtek RTL8105E 10/100 Mbps
- Brand: ARKTEK
- Product ID: 17126
Title
Title
Specification
| Basic Information | |
| Brand | ARKTEK |
| Model | AK-H110M EG |
| Product Type | Micro-ATX Motherboard |
| Chipset | Intel H110 Express |
| Part Number | AK-H110M EG |
| CPU Socket | LGA1151 |
| Form Factor | Micro-ATX |
| PCB Size | 220 × 170 mm |
| Processor Support | |
| Supported Processor | Intel Core i7 / i5 / i3 / Pentium / Celeron |
| CPU Generation | 6th / 7th / 8th / 9th Gen |
| Memory | |
| Memory Type | DDR4 |
| Memory Slots | 2 × DDR4 DIMM |
| Maximum Memory | Up to 32GB |
| Memory Architecture | Dual Channel |
| Memory Speed | DDR4 2133 / 2400 / 2666 MHz |
| Non-ECC Memory | Supported |
| Graphics | |
| Graphics Output | HDMI, VGA |
| Maximum Resolution | Up to 4096 × 2160 (HDMI) |
| Expansion Slots | |
| PCI Express x16 | 1 × PCIe x16 |
| PCI Express x1 | 2 × PCIe x1 |
| Storage | |
| M.2 Slot | 1 × M.2 (NVMe/SATA) |
| SATA Ports | 3 × SATA III 6Gb/s |
| RAID | No |
| Network | |
| LAN Chipset | Realtek RTL8105E |
| LAN Speed | 10/100 Mbps Ethernet |
| Audio | |
| Audio Codec | Realtek HD Audio |
| Audio Channel | 6-Channel High Definition Audio |

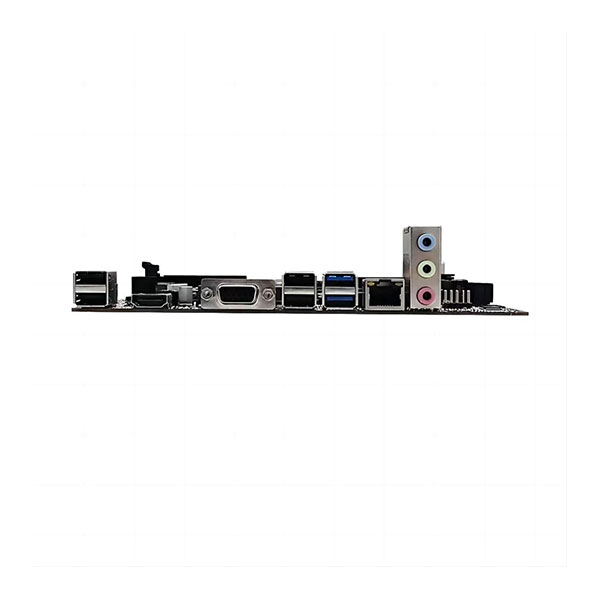

| Rear I/O Ports | |
| PS/2 Keyboard Port | 1 |
| PS/2 Mouse Port | 1 |
| HDMI | 1 |
| VGA | 1 |
| USB 3.0 | 2 |
| USB 2.0 | 2 |
| LAN (RJ-45) | 1 |
| Audio Jacks | 3 |
| Internal Connectors | |
| USB 3.0 Header | 1 |
| USB 2.0 Header | 2 |
| Front Panel Audio | Yes |
| CPU Fan Header | 1 |
| System Fan Header | 1 |
| 24-pin ATX Power | 1 |
| 4-pin CPU Power | 1 |
| Clear CMOS Jumper | Yes |
| Operating System | |
| OS Support | Windows 10 / Windows 11 (64-bit) |
| Package Contents | |
| Accessories | Motherboard, I/O Shield, SATA Cable, User Manual |
| Warranty | |
| Warranty | 3 Years Official Warranty |
Product Descriptions
ARKTEK AK-H110M EG 6th/7th/8th/9th Gen Micro-ATX Motherboard
The ARKTEK AK-H110M EG 6th/7th/8th/9th Gen Micro-ATX Motherboard is a reliable and budget-friendly solution designed for users who want to build or upgrade an Intel-based desktop PC. Powered by the Intel H110 chipset and LGA1151 socket, this motherboard supports compatible Intel Core i7, Core i5, Core i3, Pentium, and Celeron processors from the 6th, 7th, and in vendor-supported variants, selected 8th/9th Generation Intel processor families. It delivers stable performance for office work, online learning, business applications, multimedia, and everyday computing.
Designed with 2 DDR4 DIMM slots, the motherboard supports up to 32GB DDR4 memory in dual-channel mode, allowing smoother multitasking and faster system responsiveness. It supports DDR4 memory frequencies up to 3000MHz (depending on CPU and board revision), making it an excellent platform for productivity and daily desktop use.
For high-speed storage, the ARKTEK AK-H110M EG features 1× M.2 slot supporting PCIe/SATA SSDs along with 3× SATA III 6Gb/s ports, providing fast boot times, quick application loading, and flexible storage expansion. The motherboard also includes 1× PCI Express x16 slot for installing a dedicated graphics card, enabling better gaming, multimedia, and graphics performance.
The motherboard offers HDMI and VGA display outputs, allowing easy connection to both modern and legacy monitors. It also integrates Realtek HD Audio for clear sound quality and a Realtek RTL8105E LAN controller for stable wired network connectivity, making it suitable for home, office, educational institutions, and internet café environments.
With its compact Micro-ATX form factor, durable build quality, and excellent compatibility, the ARKTEK AK-H110M EG is an ideal choice for users looking to assemble an affordable, reliable, and efficient Intel desktop system without compromising essential features.
Buy ARKTEK AK-H110M EG 6th/7th/8th/9th Gen Micro-ATX Motherboard from Rose Tech & Computer
In Bangladesh, you can buy the original ARKTEK AK-H110M EG 6th/7th/8th/9th Gen Micro-ATX Motherboard from Rose Tech & Computer. We offer a complete collection of genuine ARKTEK Motherboards, Intel desktop components, processors, RAM, SSDs, graphics cards, and PC accessories at competitive prices. Order online or visit our showroom to get the best ARKTEK AK-H110M EG Motherboard Price in Bangladesh. Enjoy 100% genuine products, fast nationwide delivery, secure online shopping, and dependable after-sales support.
Why Buy from Rose Tech & Computer?
- ✅ 100% Genuine ARKTEK Product
- ✅ Best Price in Bangladesh
- ✅ Supports Intel LGA1151 Processors
- ✅ Compatible with 6th/7th Gen Intel CPUs (vendor listings also advertise selected 8th/9th Gen support)
- ✅ Supports Up to 32GB DDR4 Dual-Channel Memory
- ✅ M.2 SSD & SATA III Storage Support
- ✅ HDMI + VGA Display Outputs
- ✅ PCIe x16 Expansion Slot
- ✅ Fast Nationwide Delivery
- ✅ Secure Online Shopping
- ✅ Professional Customer Support
- ✅ 3 Years Official Warranty
