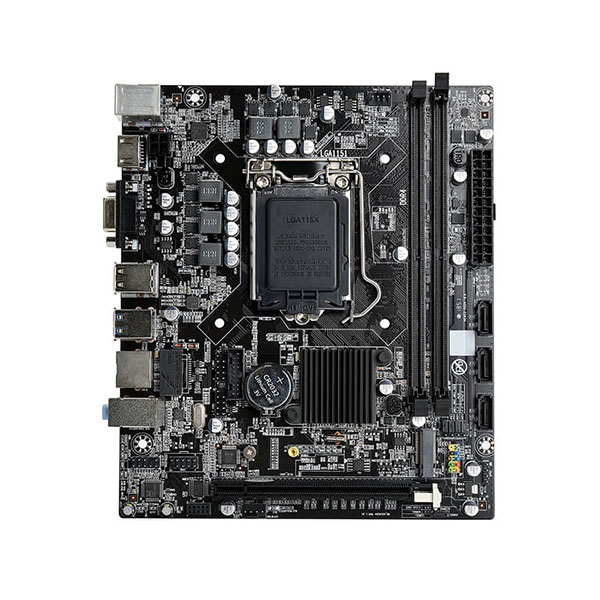

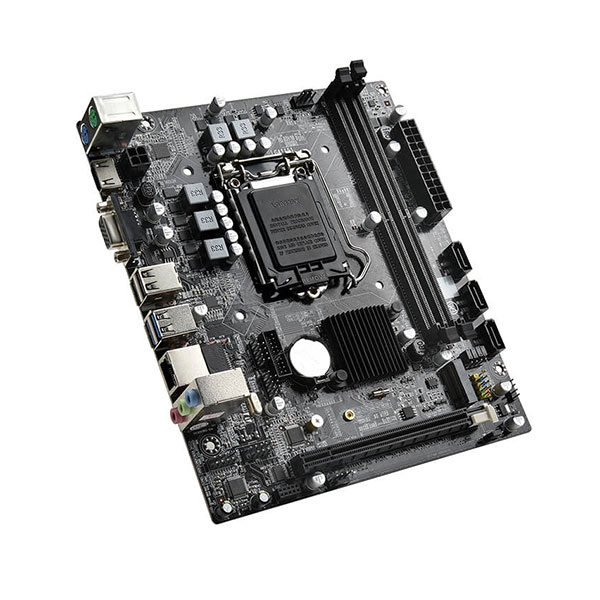

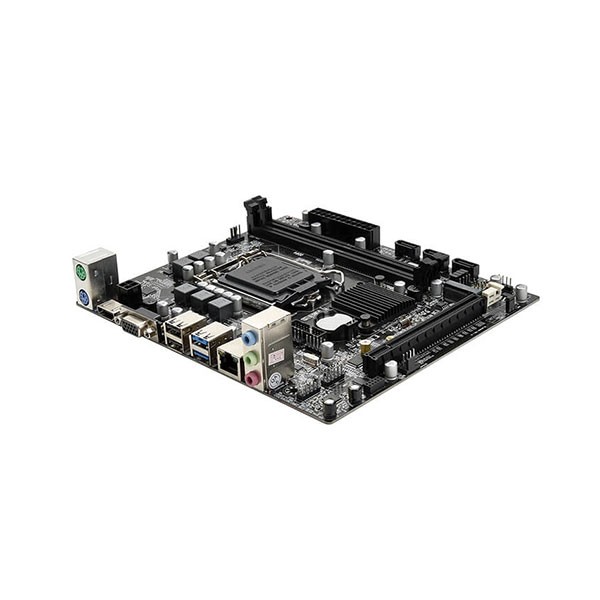

Arktek AK-H310M EG 6th/7th/8th/9th Gen micro-ATX Motherboard

(0.0)

Short Description

  • Model: AK-H310M EG
  • Socket: Intel Socket 1151
  • Chipset: Intel H310 Chipset for 6th/7th/8th/9th Gen
  • Memory Support: 2 x Dual Channel DDR4 2133/2400/2666/3200MHz
  • Brand: ARKTEK
  • Product ID: 17149
Quantity
Share

Title

Title

Specification

Basic Information
BrandArktek
ModelAK-H310M EG
Product TypeMicro-ATX Motherboard
ChipsetIntel H310
CPU SocketLGA1151
Form FactorMicro-ATX
Dimensions19.7 × 17 cm
CPU Support
Supported CPUIntel Core i3 / i5 / i7 Series
Claimed Generation Support6th / 7th / 8th / 9th Gen*
Memory
Memory TypeDDR4
Memory Slots2 × DIMM
Maximum MemoryUp to 16GB
Supported Speed2133 / 2400 / 2666 / 3200MHz
Memory ArchitectureDual Channel
Graphics
Graphics SupportIntel HD Graphics
HDMI1 × HDMI
VGA1 × VGA
Expansion Slots
PCI Express x161 ×
Storage
SATA3 × SATA 3.0
M.21 × M.2
Networking
LAN ChipRealtek RTL8111E
LAN Speed10/100/1000Mbps
Audio
Audio ChipRealtek ALC662
Audio Support6-Channel HD Audio
USB & I/O
USB 3.0 Header1 ×, supports additional 2 USB 3.0 ports
USB 2.0 Headers2 ×, supports additional 4 USB 2.0 ports
PS/2Keyboard + Mouse
HDMI1 ×
VGA1 ×
USB 3.02 × Rear
USB 2.02 × Rear
LAN1 × RJ-45
Audio3 × Audio Jacks
Operating System
OS SupportWindows 7 / 8 / 8.1 / 10 64-bit
Physical Specification
Mounting Holes6
Form FactorMicro-ATX
Warranty
Warranty3 Years Brand Warranty

Product Descriptions



Arktek AK-H310M EG 6th/7th/8th/9th Gen micro-ATX Motherboard



Arktek AK-H310M EG 9th Gen micro-ATX Motherboard supports Intel socket 1151, making it compatible with Intel i3, i5, and i7 series CPUs. With an Intel H310 Chipset. Featuring Integrated Graphics Processor-Intel HD Graphics support, it ensures smooth visuals for your computing tasks. The motherboard supports Dual Channel DDR4 memory with speeds ranging from 2133MHz to 3200MHz, with a maximum capacity of up to 16GB across 2 DIMM slots. Equipped with a Realtek RTL8111e 1000Mbps adaptive network card interface, it ensures stable and high-speed internet connectivity. The onboard Realtek 662 chip delivers 6-channel audio-out support, enhancing your audio experience. For storage, the motherboard provides 3 SATA 3.0 ports along with 1 M.2 slot, offering flexibility and speed for your storage needs. It also includes a variety of ports for external connectivity, including VGA, HDMI, USB 2.0, USB 3.0, LAN jack, and audio jacks.

The internal I/O features USB 2.0 and USB 3.0 headers, as well as a Front Panel Audio header, providing additional connectivity options. With 1 PCI Express x16 slot, the motherboard supports expansion for additional components. This micro-ATX motherboard has a form factor of 19.7 x 17 cm, making it suitable for compact builds. It supports Windows 7, 8, 8.1, and 10(x64) operating systems. Included accessories such as SATA cables, I/O Backboard, User Manual, and Driver CD ensure a hassle-free installation process. Backed by a 3-Year Brand Warranty, Arktek AK-H310M EG 9th Gen micro-ATX Motherboard offers reliability and performance for your computing needs. With a micro-ATX form factor measuring 18 x 22 cm, the AK-H410M EG is suitable for compact PC builds and offers six mounting holes for secure installation. It is compatible with Windows 7, 8, 8.1, and 10 (x64) operating systems.



Buy Arktek AK-H310M EG 6th/7th/8th/9th Gen micro-ATX Motherboard from Rose Tech



In Bangladesh, you can get original Arktek AK-H310M EG 6th/7th/8th/9th Gen micro-ATX Motherboard From Rose Tech. We have a large collection of latest ARKTEK Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Rose Tech Shop to get yours at lowest price. The Arktek AK-H310M EG 6th/7th/8th/9th Gen micro-ATX Motherboardcomes with 3 years warranty.
