ARKTEK AK-H61M EL 3rd Gen Micro-ATX Motherboard
Short Description
- Model: AK-H61M EL
- Supported CPU: Intel Socket 1155 for Core i7/ i5/ i3/Pentium/Celeron
- Supported RAM: 2x DIMM, DDR3 1600/ 1333/1066MHz
- Graphics Output: 1 x HDMI, 1 x VGA Port
- Features: Realtek 8105E/8111E 100/1000 Mbps
- Brand: ARKTEK
- Product ID: 17111
Title
Title
Specification
| Basic Information | |
| Brand | ARKTEK |
| Model | AK-H61M EL |
| Product Type | Micro-ATX Motherboard |
| Chipset | Intel H61 |
| Part Number | AK-H61M EL |
| Form Factor | Micro-ATX |
| Dimensions | 18.5 × 16.8 cm |
| CPU Support | |
| CPU Socket | LGA1155 |
| Supported Processor | Intel Core i7 / i5 / i3 / Pentium / Celeron |
| CPU Generation | Intel 2nd & 3rd Generation |
| Memory | |
| Memory Type | DDR3 |
| Memory Slots | 2 × DIMM |
| Maximum Memory | Up to 16GB |
| Memory Speed | DDR3 1600 / 1333 / 1066MHz |
| Memory Architecture | Dual Channel |
| Graphics | |
| Integrated Graphics | Intel HD Graphics Support |
| HDMI | 1 × HDMI |
| VGA | 1 × VGA (D-Sub) |
| Expansion Slots | |
| PCI Express x16 | 1 × PCIe x16 |
| PCI Express x1 | 1 × PCIe x1 |
| Storage | |
| SATA Ports | 4 × SATA |
| Networking | |
| LAN Controller | Realtek 8105E / 8111E |
| LAN Speed | 10/100/1000 Mbps |
| Audio Codec | Realtek HD Audio |
| Audio Channels | 6-Channel HD Audio |
| Rear I/O Ports | |
| HDMI | 1 × |
| VGA | 1 × |
| USB 2.0 | 6 × |
| RJ-45 LAN | 1 × |
| Audio Jack | 3 × |
| PS/2 | Keyboard & Mouse |
| Internal Connectors | |
| USB Header | 2 × USB 2.0 Headers |
| Front Audio Header | 1 × |
| Physical Specification | |
| Mounting Holes | 6 |
| Package Contents | |
| Accessories | SATA Cable, I/O Shield, User Manual, Driver CD |
| Warranty Information | |
| Warranty | 3 Years Warranty (According to Rose Tech & Computer policy) |
Product Descriptions

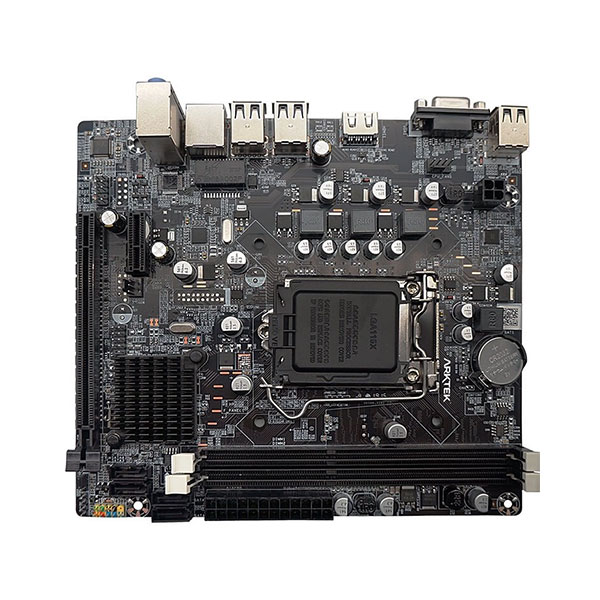

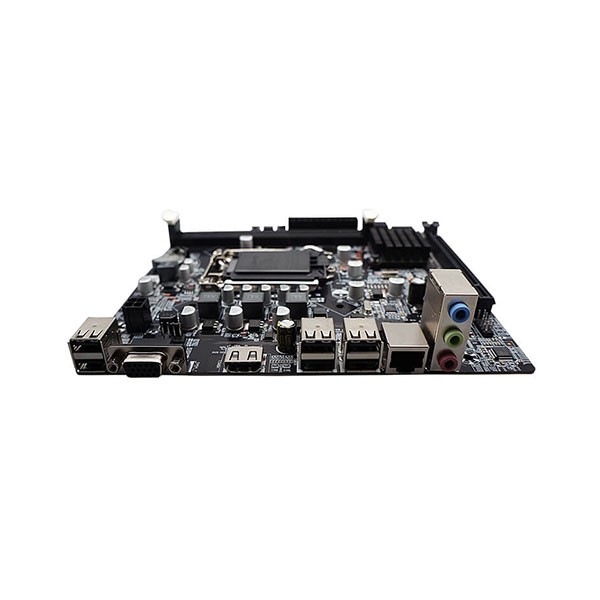

ARKTEK AK-H61M EL 3rd Gen Micro-ATX Motherboard
The ARKTEK AK-H61M EL 3rd Gen Micro-ATX Motherboard is a reliable and affordable platform for building or upgrading Intel-based desktop computers. Powered by the Intel H61 chipset and featuring an LGA1155 socket, it supports Intel 2nd and 3rd Generation Core i7, Core i5, Core i3, Pentium, and Celeron processors, making it an excellent choice for office work, educational use, home computing, and business applications.
Equipped with 2 DDR3 DIMM slots, the motherboard supports up to 16GB DDR3 memory at 1600MHz, 1333MHz, and 1066MHz in dual-channel mode, providing stable performance for multitasking, productivity software, web browsing, and multimedia applications.
For expansion and storage, the AK-H61M EL includes 1 PCI Express x16 slot for a dedicated graphics card, 1 PCI Express x1 slot, and 4 SATA ports for connecting SSDs and HDDs. The motherboard also offers HDMI and VGA outputs, allowing users to connect modern and legacy displays without additional adapters.
The motherboard features Realtek Gigabit LAN for stable wired networking and Realtek 6-channel HD Audio for clear sound quality. Multiple USB ports and internal headers make it easy to connect peripherals and front-panel accessories, making this motherboard suitable for everyday desktop computing.
Built with a compact Micro-ATX form factor, the ARKTEK AK-H61M EL fits into most standard PC cases and delivers dependable performance for users looking to build a budget-friendly desktop using Intel 2nd or 3rd Generation processors.
