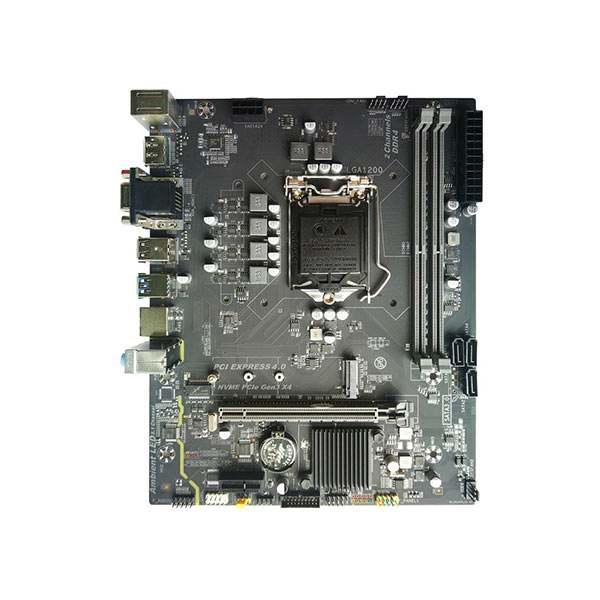

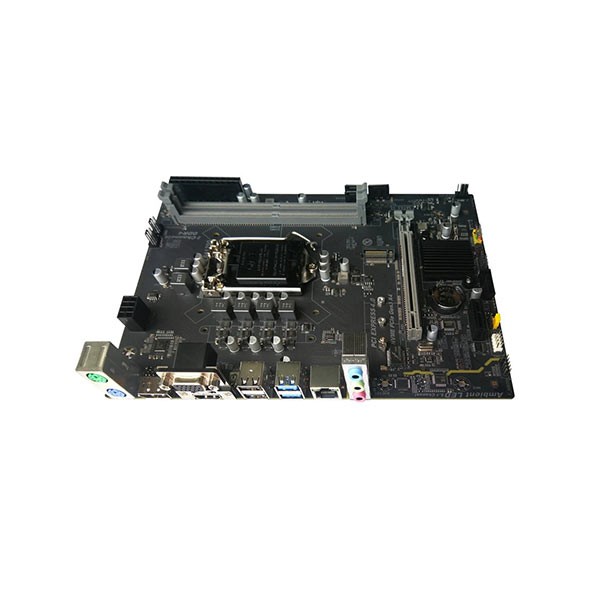

ARKTEK AK-H510M EG 10th & 11th Gen Micro-ATX Motherboard
Short Description
- Model: AK-H510M EG
- Supported CPU: 11th/10th Gen Core i9/i7/i5/i3/Pentium/Celeron (LGA1200)
- Supported RAM: 2x DIMM, DDR4 2133/2400/2800MHz
- Graphics Output: 1 x DP, 1 x HDMI
- Features: Realtek 100/1000 Mbps LAN onboard
- Brand: ARKTEK
- Product ID: 17134
Title
Title
Specification
| Basic Information | |
| Brand | ARKTEK |
| Model | AK-H510M EG |
| Product Type | Micro-ATX Motherboard |
| Chipset | Intel H510 |
| Form Factor | Micro-ATX |
| Dimensions | 22 × 17 cm |
| CPU Support | |
| CPU Socket | LGA1200 |
| Supported CPU | Intel Core i9 / i7 / i5 / i3, Pentium & Celeron |
| CPU Generation | 10th & 11th Gen |
| Memory | |
| Memory Type | DDR4 |
| Memory Slots | 2 × DIMM |
| Memory Architecture | Dual Channel |
| Supported Speed | DDR4 2133 / 2400 / 2800MHz |
| XMP | Supported |
| Expansion Slots | |
| PCI Express x16 | 1 × |
| PCI Express x1 | 1 × |
| Storage | |
| SATA | 3 × SATA 6Gb/s |
| M.2 Slot | 1 × M.2 |
| M.2 Interface | PCIe 3.0 x4 NVMe SSD |
| Graphics | |
| Integrated Graphics | Intel HD Graphics Support |
| HDMI | 1 × |
| DisplayPort | 1 × |
| USB | |
| USB 3.0 | 2 × Rear |
| USB 2.0 | 2 × Rear |
| Internal USB Headers | Supports additional USB 2.0 & USB 3.0 |
| Networking | |
| LAN | Realtek Gigabit LAN |
| LAN Speed | 10/100/1000 Mbps |
| Audio | |
| Audio | High Definition Audio |
| Audio Channel | 5.1 Channel |
| Audio Port | 3 × 3.5mm Audio Jacks |
| LED Audio | Supported |
| Rear I/O | |
| PS/2 | Keyboard & Mouse |
| HDMI | 1 × |
| DisplayPort | 1 × |
| USB 3.0 | 2 × |
| USB 2.0 | 2 × |
| LAN | 1 × RJ-45 |
| Audio | 3 × Audio Jacks |
| Warranty | |
| Warranty | 2 Years Warranty |
Product Descriptions
ARKTEK AK-H510M EG 10th & 11th Gen Micro-ATX Motherboard
The ARKTEK AK-H510M EG 10th & 11th Gen Micro-ATX Motherboard is designed for users who want a reliable and affordable platform for building an Intel-based desktop PC. Powered by the Intel H510 chipset and equipped with an LGA1200 socket, the motherboard supports compatible 10th and 11th Generation Intel Core i9, i7, i5, i3, Pentium, and Celeron processors. Its compact Micro-ATX 22 × 17cm form factor makes it suitable for home PCs, office computers, business systems, and compact desktop builds.
For memory, the AK-H510M EG comes with 2 DDR4 DIMM slots and supports dual-channel DDR4 memory at 2133MHz, 2400MHz, and 2800MHz, along with XMP support. This provides a practical memory platform for everyday applications, office work, web browsing, multimedia, multitasking, and general desktop use.
For high-speed storage, the motherboard includes an M.2 slot supporting PCIe 3.0 x4 NVMe SSDs, allowing users to build a responsive system with fast boot and application loading times. It also provides 3 SATA 6Gb/s ports for additional SATA SSDs and hard drives.
The motherboard provides flexible display connectivity through HDMI and DisplayPort, while the PCIe x16 slot allows installation of a dedicated graphics card. USB 3.0 and USB 2.0 ports provide convenient connectivity for keyboards, mice, storage devices, printers, and other peripherals.
For networking, the Realtek 10/100/1000Mbps Gigabit LAN provides reliable wired network connectivity. The board also features 5.1-channel audio support, 3.5mm audio connections, and LED audio support for an enhanced multimedia experience.
Overall, the ARKTEK AK-H510M EG is a practical choice for users looking for an affordable 10th/11th Gen Intel DDR4 motherboard with M.2 NVMe support and essential connectivity in a compact Micro-ATX design.
Buy ARKTEK AK-H510M EG Motherboard from Rose Tech & Computer
In Bangladesh, you can buy the original ARKTEK AK-H510M EG 10th & 11th Gen Micro-ATX Motherboard from Rose Tech & Computer. We offer a wide collection of ARKTEK Motherboards, H510 Motherboards, Intel 10th Gen Motherboards, Intel 11th Gen Motherboards, DDR4 Motherboards, M.2 NVMe Motherboards, and Desktop PC Components at competitive prices.
Order online from Rose Tech & Computer or visit our store to get the best ARKTEK AK-H510M EG Motherboard Price in Bangladesh. We provide genuine products, competitive pricing, secure online shopping, fast nationwide delivery, and reliable customer support.
Why Buy ARKTEK AK-H510M EG from Rose Tech & Computer?
- ✅ 100% Genuine ARKTEK Product
- ✅ Competitive Motherboard Price in Bangladesh
- ✅ Intel 10th & 11th Gen CPU Support
- ✅ DDR4 Dual-Channel Memory Support
- ✅ M.2 PCIe 3.0 x4 NVMe Support
- ✅ HDMI + DisplayPort
- ✅ Gigabit LAN
- ✅ 2 Years Warranty
- ✅ Fast Nationwide Delivery
- ✅ Secure Online Shopping
- ✅ Professional Customer Support
Warranty
3 Years Warranty.
